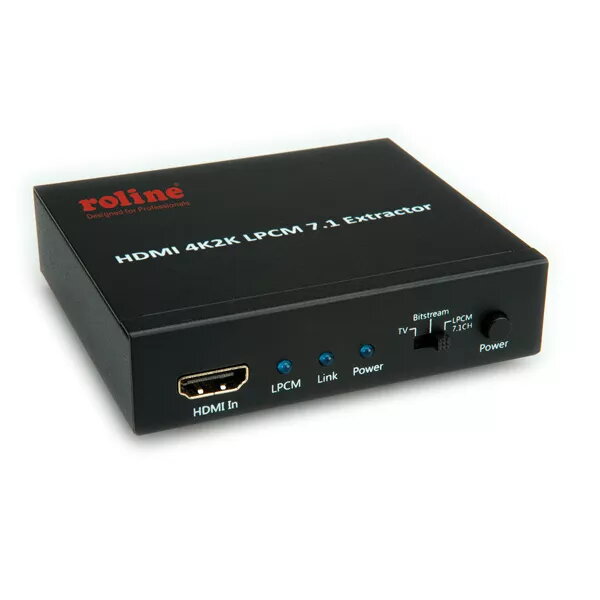

Audio Extractor ROLINE HDMI 4K2K LPCM 7.1

Name: Audio Extractor ROLINE HDMI 4K2K 14.01.3442
Brand: ROLINE
SKU: 1100975
Price: 94.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Audio Extractor ROLINE HDMI 4K2K LPCM 7.1 Photo 3

Audio Extractor ROLINE HDMI 4K2K LPCM 7.1 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ROLINE HDMI 4K2K Audio Extractor LPCM 7.1 allows you to extract audio from HDMI sources with a maximum video resolution of 3840 x 2160 pixels. It supports 7.1 audio output channels, ensuring high-quality sound. The device features HDMI input and output interfaces, making it easy to connect to your existing setup. Compact dimensions of 95 mm width, 85 mm depth, and 27 mm height make it suitable for various environments.

Available for order: 21 pcs.

Warranty: 2 Years

SKU: 1100975

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.45 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ROLINE HDMI 4K2K LPCM 7.1 Audio Extractor separates audio from an HDMI signal while passing the original video (up to 3840 x 2160). It provides HDMI input and output connectors and supports LPCM 7.1 multi-channel output so you can route high-resolution audio to an external sound system while the pure image signal continues to the display.

Advantages

The extractor supports HDMI and HDCP 1.2, high bit-rate (HBR) audio and audio sample rates up to 192 kHz for S/PDIF. It handles video resolutions up to 4K2K and 3D, offers CEC bypass, and provides up to four 3.5 mm phone jacks for analog multi-channel outputs. The unit is compact, powered by the included 5 V DC, 2 A adapter, and includes a user manual.

Suitable for

Connecting HDMI sources to displays with poor or no speakers
Routing multi-channel audio (LPCM 7.1) to external amplifiers or speaker systems
Using optical S/PDIF or analog 3.5 mm outputs for audio recording or playback
Integrating 4K/3D HDMI sources into home theatre or presentation setups

Key specifications

Maximum video resolution: 3840 x 2160 (4K2K)
Audio output: LPCM 7.1, S/PDIF (optical) up to 192 kHz, analog via up to 4 × 3.5 mm jacks
HDMI version / HDCP: supports HDMI and HDCP 1.2
Supports high bit-rate (HBR) audio and 3D video
CEC bypass supported
Power supply included: 5 V DC, 2 A
Dimensions (W×D×H): 95 × 85 × 27 mm
Colour: Black
Contents: extractor, power adapter, user manual

How to use

Connect the HDMI source (e.g., Blu-ray player, game console, PC) to the extractor's HDMI input and connect the extractor's HDMI output to your display. Choose the desired audio output: connect an optical cable to the S/PDIF port for digital audio or plug speakers/amplifier cables into the 3.5 mm jacks for analog multi-channel output. Power the unit with the supplied 5 V DC adapter. The device extracts audio while forwarding the original video signal to the screen.

Usage recommendations

For best results use high-quality HDMI and optical cables, ensure connected devices support the intended audio formats (LPCM 7.1 or HBR), and verify your display and audio equipment compatibility with HDCP 1.2 and 4K resolution.
