ROLINE 19-inch wall-mounted rack Pro 7U, 600x600 WxD, two-part swivelling, grey, IP20, 50 kg capacity

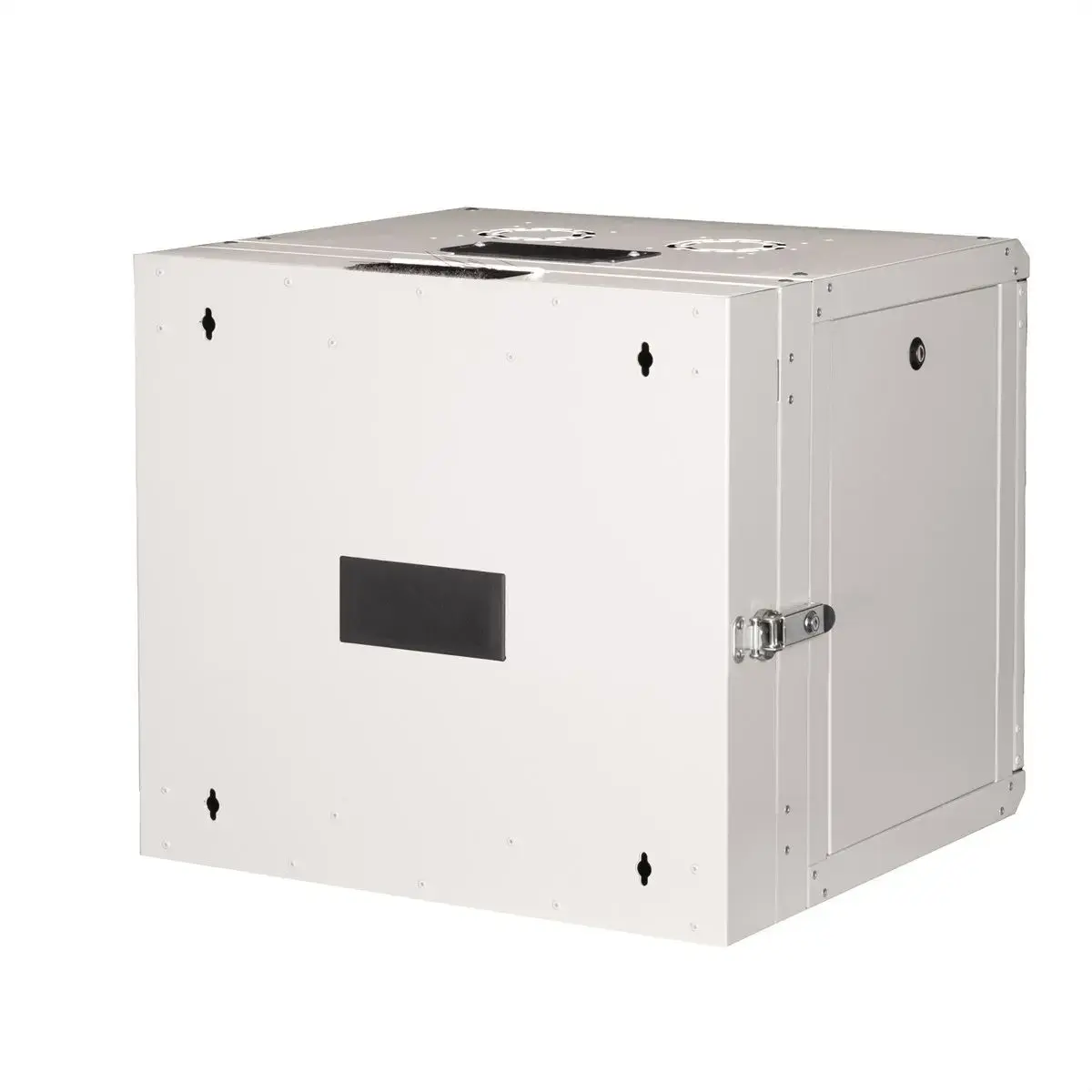

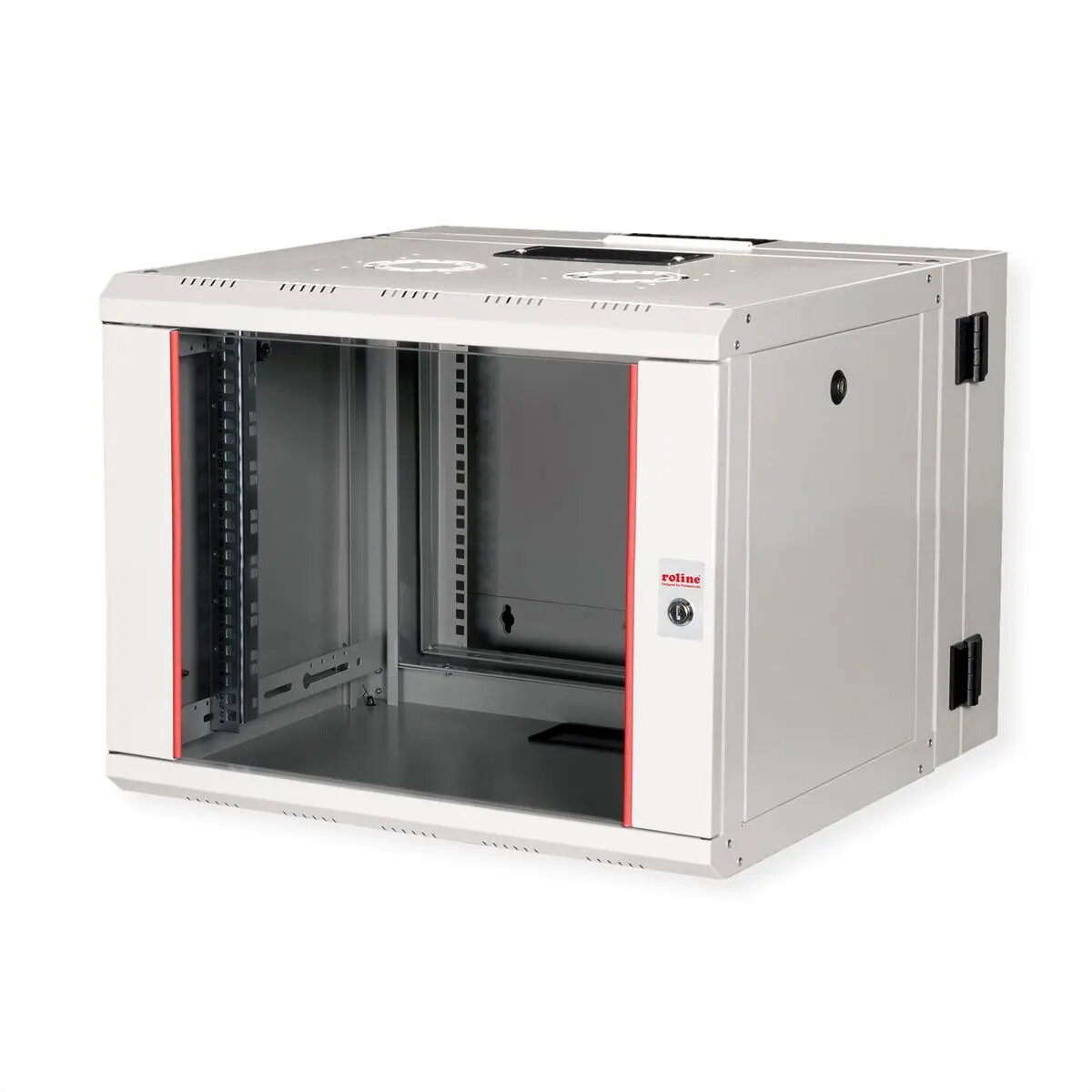

ROLINE 19-inch wall-mounted rack Pro 7U, 600x600 WxD, two-part swivelling, grey, IP20, 50 kg capacity is a compact wall cabinet designed for flexible network cabling and small equipment installations. It features a hinged rear frame that allows the enclosure to be folded sideways for easier access, integrated sliding cable inlet with foam rubber seal in the roof, and punched cable inlets with covers in the rear panel and base. The roof chassis includes a cut-out for an optional fan module, and the cabinet provides internal galvanised 19" profile rails that are reversible and adjustable in depth, as well as 19" perforations in the rear frame. The enclosure is built from robust sheet steel up to 1.5 mm thick and electrostatically powder-coated in grey (RAL 7035).

Advantages

The two-part swivelling design with an integrated hinge on the rear frame enables convenient lateral access for installation and maintenance, while removable and lockable front door and side panels improve accessibility and security. Brush strips, foam-sealed sliding cable inlet, and punched inlets with covers help organise and protect cable entries. Reversible, depth-adjustable galvanised 19" rails and a pre-cut roof chassis for fan installation increase the cabinet's adaptability for various rack-mount network and server devices.

Suitable for

• Small server rooms and network closets
• Telecom and network distribution points
• Wall-mounted installations of switches, patch panels and compact rack-mount devices

When it may not be suitable

This 7U wall-mounted rack supports up to 50 kg and has IP20 protection, so it is not designed for heavy equipment, outdoor use, or environments requiring dust- or water-tight enclosures. Larger installations that require higher U count, greater load capacity, or more advanced environmental protection will need a different cabinet model.

Key specifications

• Mounting height: 7U
• External dimensions (WxD): 600 x 600 mm
• Construction material: sheet steel up to 1.5 mm thick, electrostatic powder coating
• Finish colour: grey (RAL 7035)
• Protection rating: IP20
• Maximum static load: 50 kg
• Internal rails: galvanised 19" profile rails, reversible and depth-adjustable
• Cable management: sliding roof inlet with foam seal, punched rear and base inlets with covers, brush strips on rear frame
• Access features: removable and lockable front door, removable and lockable side panels, reversible door hinge
• Roof: chassis cut-out for optional fan module

How to use

Mount the rear frame of the enclosure on the wall in the desired opening direction, then attach the enclosure to the frame. Use the reversible, depth-adjustable 19" rails to fit switches, patch panels or other 19" equipment. Route cables through the sliding roof inlet with foam seal or the punched inlets in the rear and base, and secure cable entries with the provided covers and brush strips. If required, install a fan module in the roof cut-out. For free-standing use, fit levelling feet or castors as an alternative to wall mounting.

What to consider before purchase

• Verify that total equipment weight does not exceed 50 kg
• Confirm that 7U rack height and 600 x 600 mm footprint accommodate your devices
• Check that IP20 protection level is sufficient for your environment
• Ensure required ventilation or fan options are available for installed equipment

Usage recommendations

Place heavier devices as low as possible in the 7U rack, distribute weight evenly across the rails, and use the brush strips and cable covers to maintain neat cable entry and avoid strain on connectors.
