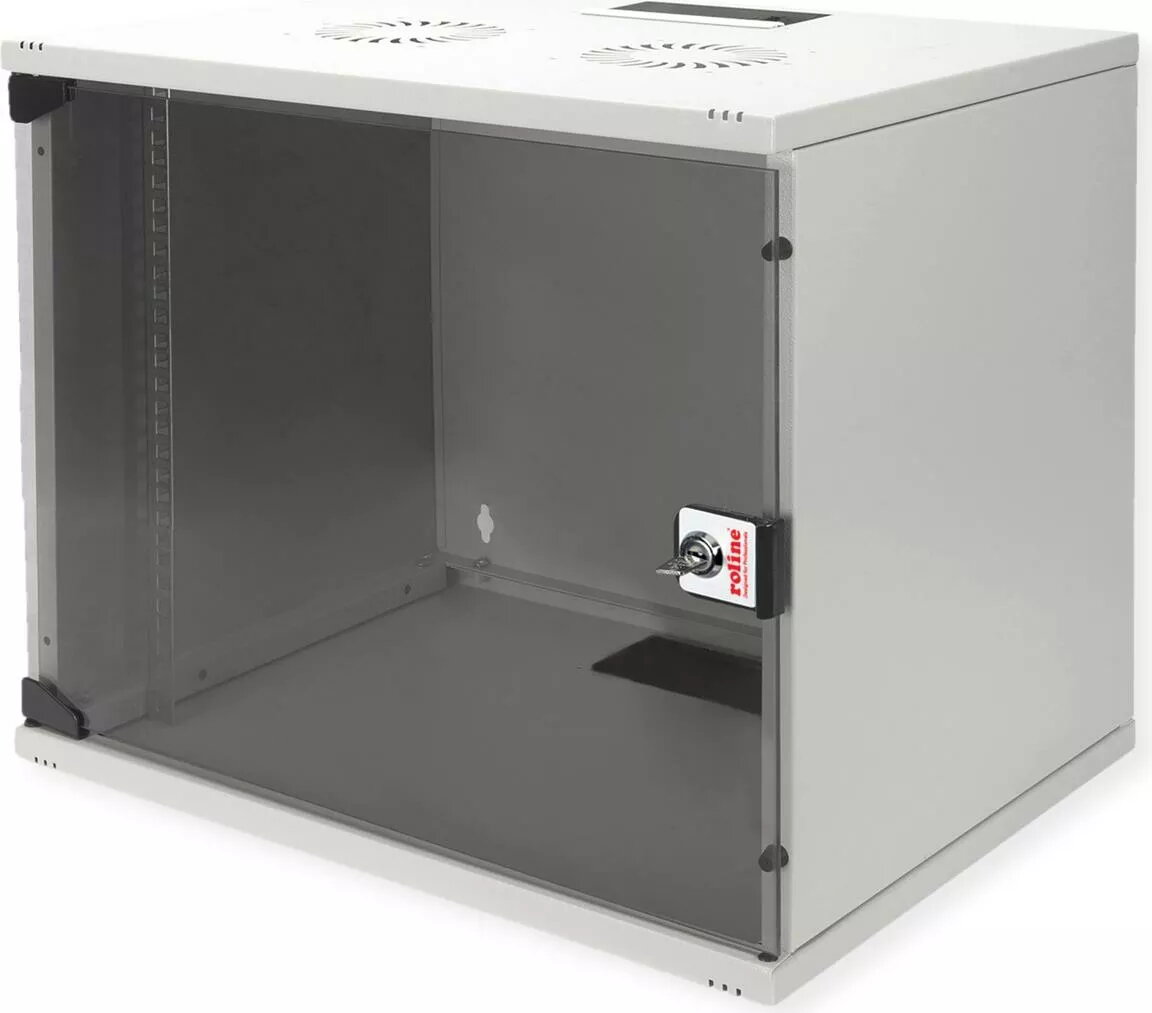

Wall-mount server cabinet ROLINE 9U, 19" 540x400 mm, basic kit, gray

ROLINE 9U 19" wall-mount server cabinet basic kit with external dimensions 540 x 400 mm is a compact installation solution for mounting 19-inch network and server equipment in confined spaces. The cabinet provides 9 height units (HE) and a gray finish, supplied as a basic kit designed for small offices, server rooms and network closets. Its compact footprint and standard 19" compatibility allow for secure, space-saving placement of switches, patch panels, routers and compact servers while maintaining accessible cabling and ventilation paths.

Advantages

The wall-mount cabinet occupies minimal floor area and enables vertical equipment organization, reducing clutter in small technical rooms. Supplied as a basic kit, it allows flexible configuration and quick assembly on-site. The 19" standard mounting rails support common rack-mount devices and provide reliable mechanical support. The gray finish offers a neutral appearance suitable for professional environments, and the shallow 400 mm depth makes it appropriate where clearance is limited.

Suitable for

• Wall-mounted installation of 19" switches and patch panels in small offices
• Compact server or network equipment in server closets and telecom cabinets
• Edge network installations and CCTV recording equipment in limited spaces
• Cabling and patching points where space-saving vertical racks are required

Key specifications

• Mounting type: wall-mount cabinet
• Height: 9U (height units)
• External dimensions: 540 x 400 mm (height x depth)
• Rack standard: 19" mounting rails for rack equipment
• Finish: gray
• Delivery state: basic kit (Bausatz) for assembly

How to use

Attach the cabinet securely to a suitable wall structure using appropriate anchors and fixings rated for the combined weight of the cabinet and installed equipment. Assemble the kit components following the supplied instructions, fix the 19" mounting rails to the correct U positions, and install equipment from top to bottom to maintain balance. Route power and network cabling through the provided entry points or knockouts, and leave space for airflow around active devices. Verify that doors or panels open without obstruction and that all fastenings are tight before connecting power.

Usage recommendations

Install power distribution units and cable management accessories to keep cabling organized and to reduce strain on connectors. Maintain a clearance of at least several centimeters in front and behind the cabinet where possible to ensure adequate ventilation. For heavier or heat-generating equipment, consider installing forced ventilation or relocating to a larger enclosure.
