19-inch Network Cabinet ROLINE Basic 42U 800x1000 mm freestanding rack, glass door, grey, 600 kg

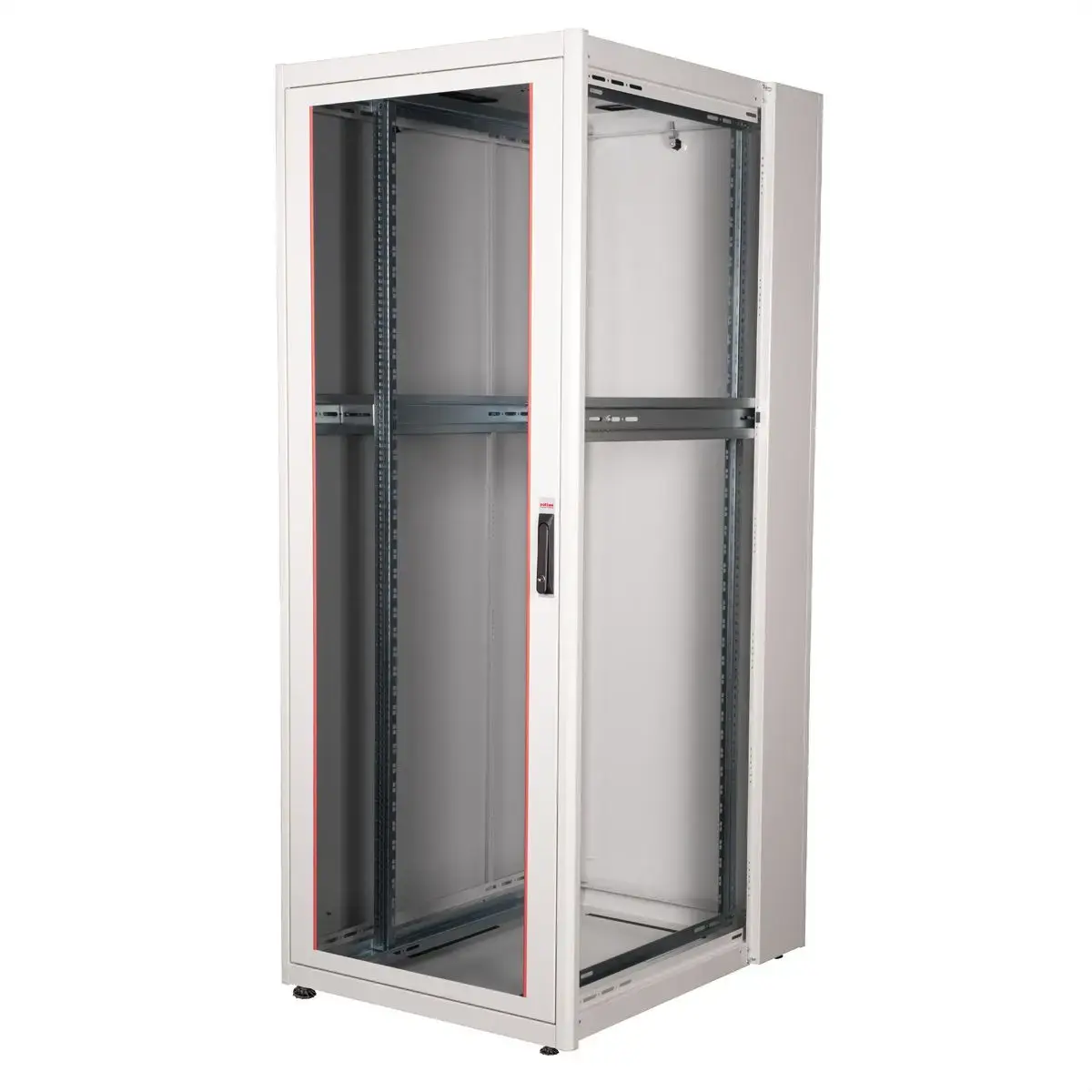

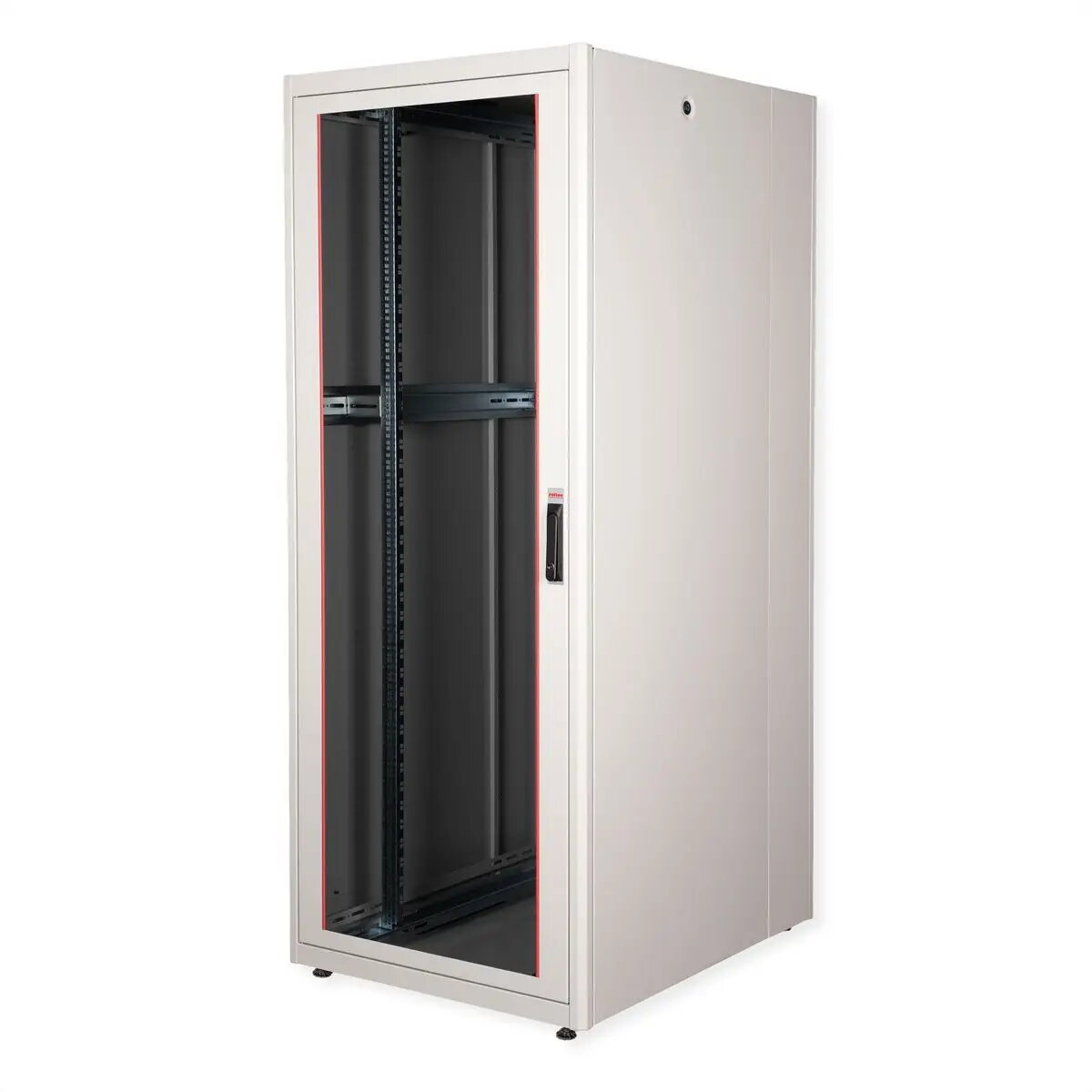

Freestanding 19-inch network cabinet ROLINE Basic 42U 800x1000 mm is designed for mounting server and network equipment on adjustable 19" rack rails. With a usable rack height of 42U and external footprint of 800 x 1000 mm (WxD), the cabinet supports static loads up to 600 kg and has an IP20 protection rating. The enclosure features a glass front door, removable side and rear panels, adjustable feet and a robust steel construction with sheet thickness up to 1.5 mm. Strategically placed cable inlets in the base, roof and sides simplify cabling, while the roof includes a punched area for fan module installation. Two pairs of galvanised, reversible and depth-adjustable 19" profile rails are fitted and connected to depth struts to accommodate different equipment depths. The cabinet is finished with electrostatic powder coating in grey (RAL 7035).

Advantages

The ROLINE Basic 42U cabinet provides a compact but stable solution for medium-size server rooms and network closets, combining a high load capacity with adaptable rail positions and multiple cable entry points. Removable panels and a lockable glass front door offer straightforward access for installation and maintenance, while the option to change the door hinge or fully dismantle the cabinet improves flexibility for site-specific requirements. The steel construction and powder-coated surface ensure mechanical durability and corrosion resistance for indoor IT environments.

Suitable for

• Server rooms and small data centres requiring a 42U freestanding rack
• Network closets and telecommunications equipment mounting
• Racks for patch panels, switches and 1U–4U rack servers
• Environments where organised cable entry and optional fan module installation are needed

Key specifications

• Rack height: 42U
• External dimensions (WxD): 800 x 1000 mm
• Maximum static load capacity: 600 kg
• Protection rating: IP20

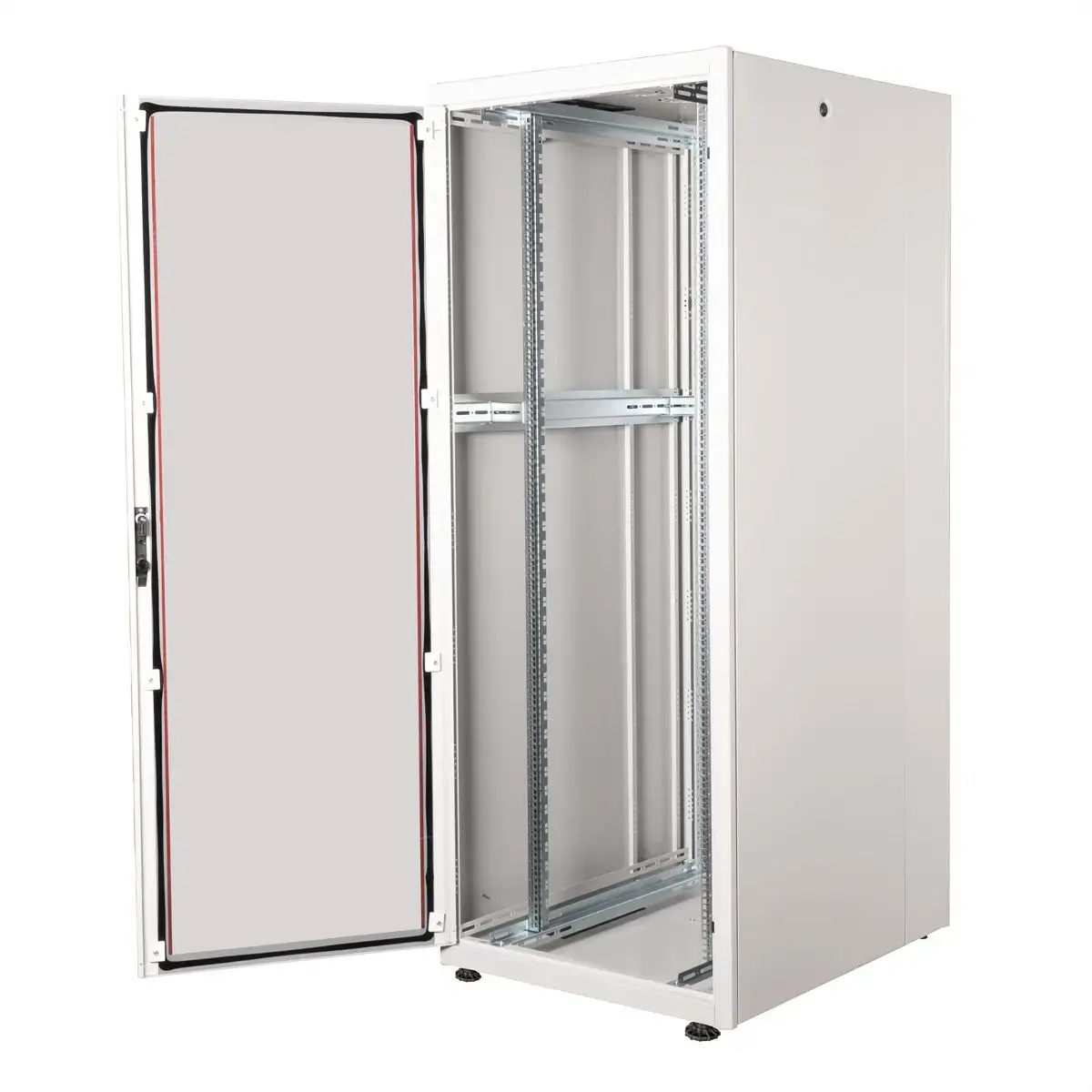

• Front door: lockable glass door, removable, hinge changeable
• Panels: removable side and rear panels
• Material: steel sheet up to 1.5 mm thickness
• Colour: grey (RAL 7035), electrostatic powder coating
• Internal rails: two pairs of galvanised reversible 19" profile rails, depth-adjustable and connected to depth struts
• Cable management: cable inlets in base, roof and sides; roof punched area for fan module
• Adjustable feet for levelling
• Weight: approx. 113.8 kg

How to use

Place the freestanding cabinet on a firm, level surface and use the adjustable feet to level the enclosure. Remove panels or the front door as needed to access the interior when mounting equipment. Adjust the internal 19" profile rails to the required depth and secure them before installing patch panels, switches or servers. Route cables through the base, side or roof inlets and secure them to rails or cable management accessories to maintain airflow and serviceability. If additional cooling is required, use the roof punched area to mount a compatible fan module. Lock the front door after installation to limit unauthorised access.

Usage recommendations

For safe operation and longevity, distribute installed equipment weight evenly across the rails and avoid exceeding the 600 kg static load. Use appropriate earthing and grounding practices when connecting equipment. When planning cable routes, leave service space for airflow and maintenance access; consider adding cable management accessories and a fan module if the cabinet will host heat-generating servers.
