Network cabinet ROLINE 19-inch Pro 22U, freestanding 800x800 mm, glass door, grey, 600 kg, IP20

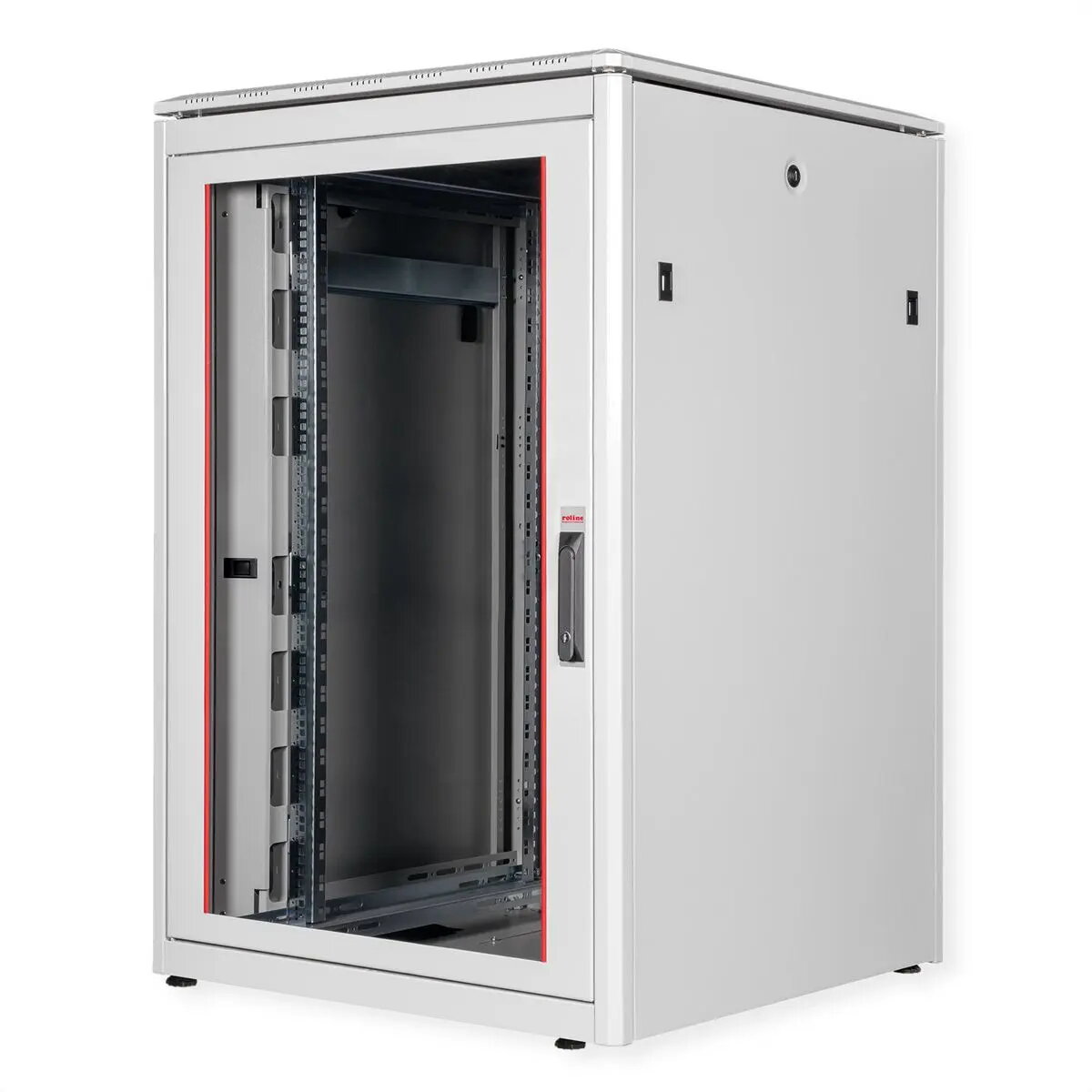

Freestanding 19-inch network cabinet ROLINE Pro 22U with an 800 x 800 mm footprint, glass front door and IP20 protection. The cabinet is built from robust steel with up to 1.5 mm sheet thickness and is powder-coated in grey (RAL 7035). It includes two pairs of galvanised, reversible 19" profile rails that are depth-adjustable and reinforced with additional depth struts, making it suitable for mounting server, networking and telecom equipment. The cabinet supports a static load up to 600 kg and has adjustable feet for stable placement on uneven floors.

Advantages

The ROLINE 22U freestanding rack combines durable steel construction with modular accessibility: removable front and rear doors and detachable side panels simplify installation and maintenance. A glass front door allows visual inspection of installed equipment without opening the cabinet. Adjustable, reversible rails accommodate a variety of component depths, while the stepped removable top cover with ventilation slots supports improved airflow and easy fan-module installation. Powder-coating ensures a corrosion-resistant surface for longer service life in office and server-room environments.

Suitable for

• Small to medium enterprise server rooms and network closets
• Telecom equipment rack-mount installations
• Office network distribution and patch panel mounting
• Laboratory or workshop environments requiring secure, freestanding racks

Key specifications

• Rack format: 19-inch, 22U usable height
• Footprint (W x D): 800 x 800 mm

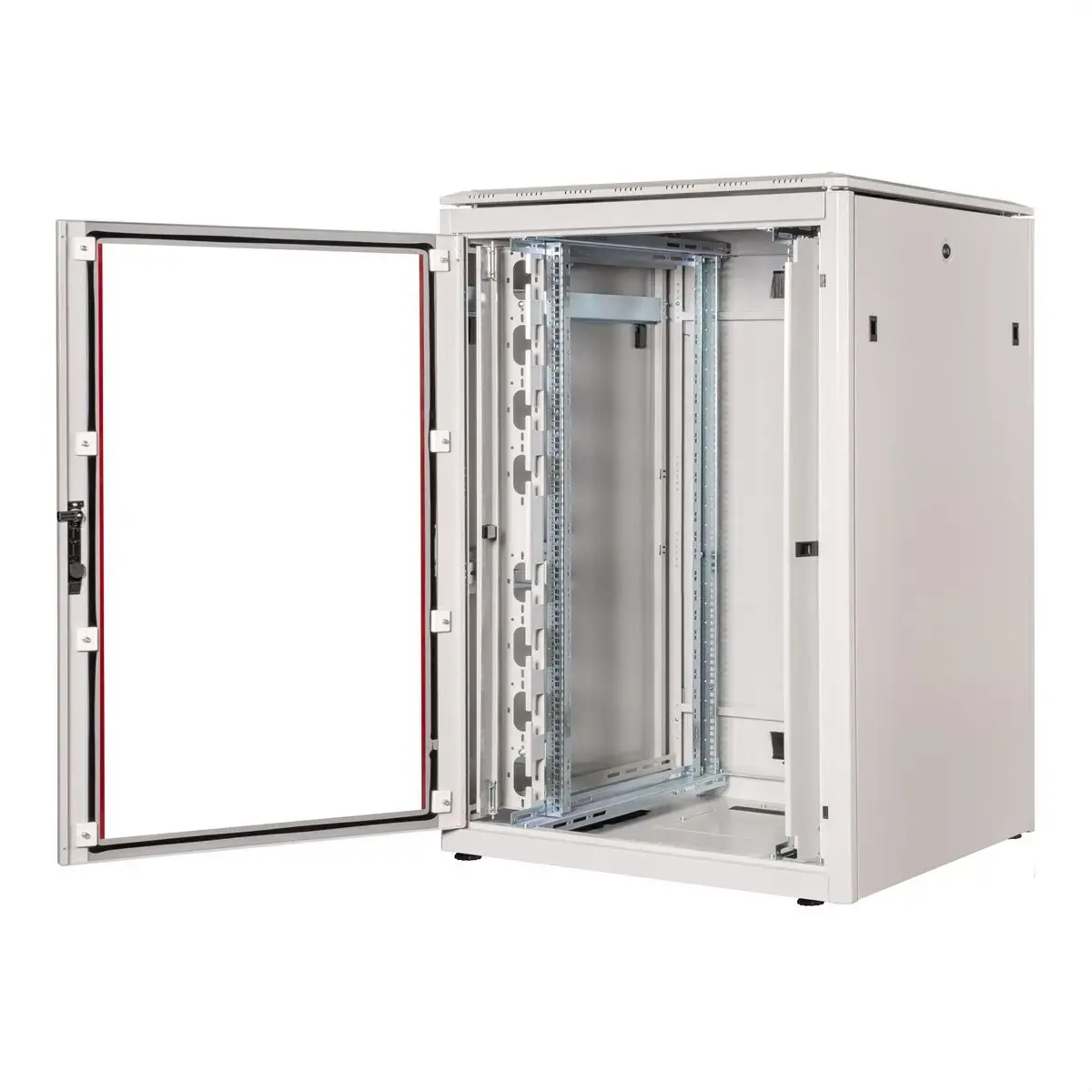

• Front door: tempered glass
• Protection class: IP20
• Material: steel construction, up to 1.5 mm sheet thickness
• Finish: electrostatic powder coating, grey (RAL 7035)
• Load capacity: supports up to 600 kg static load
• Internal rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable

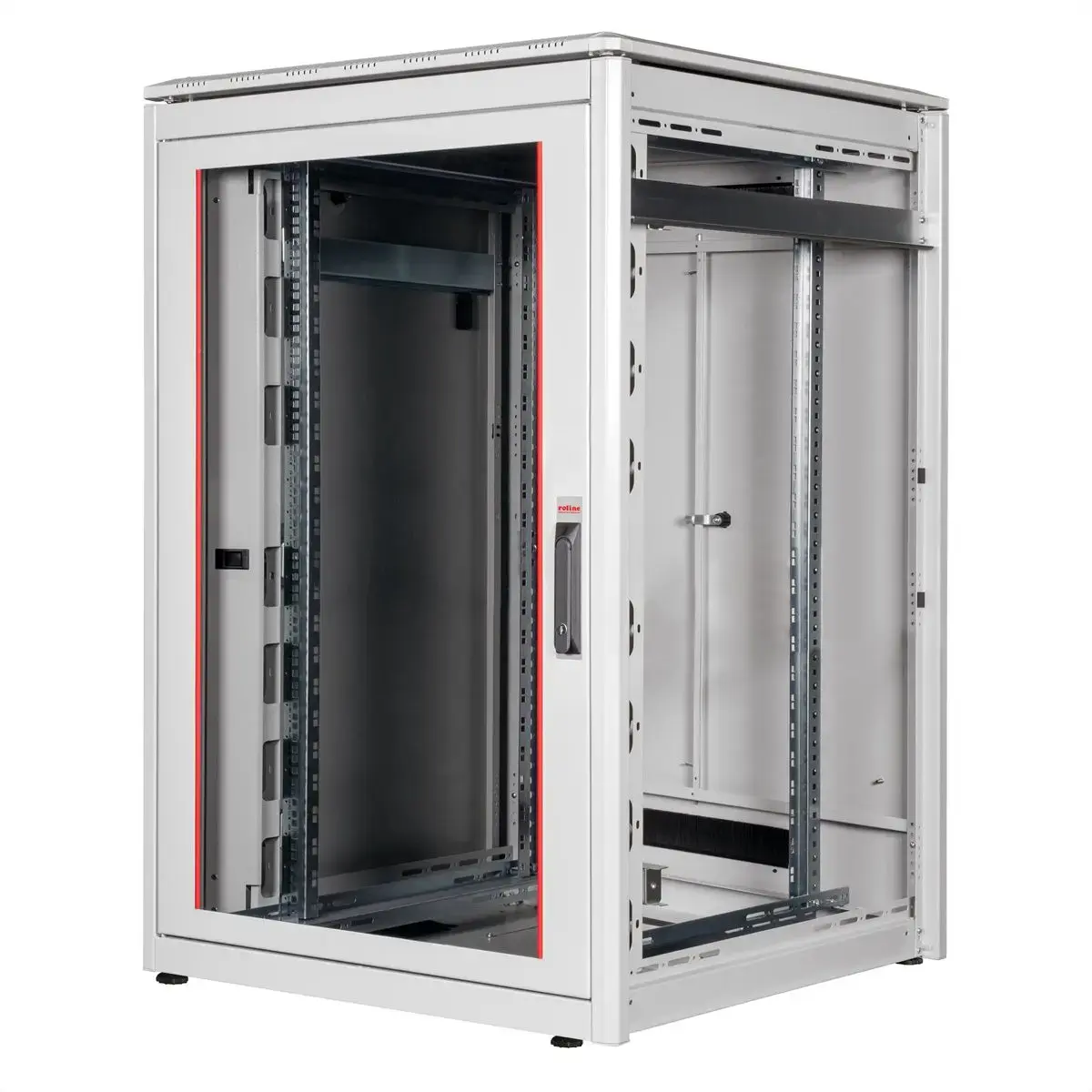

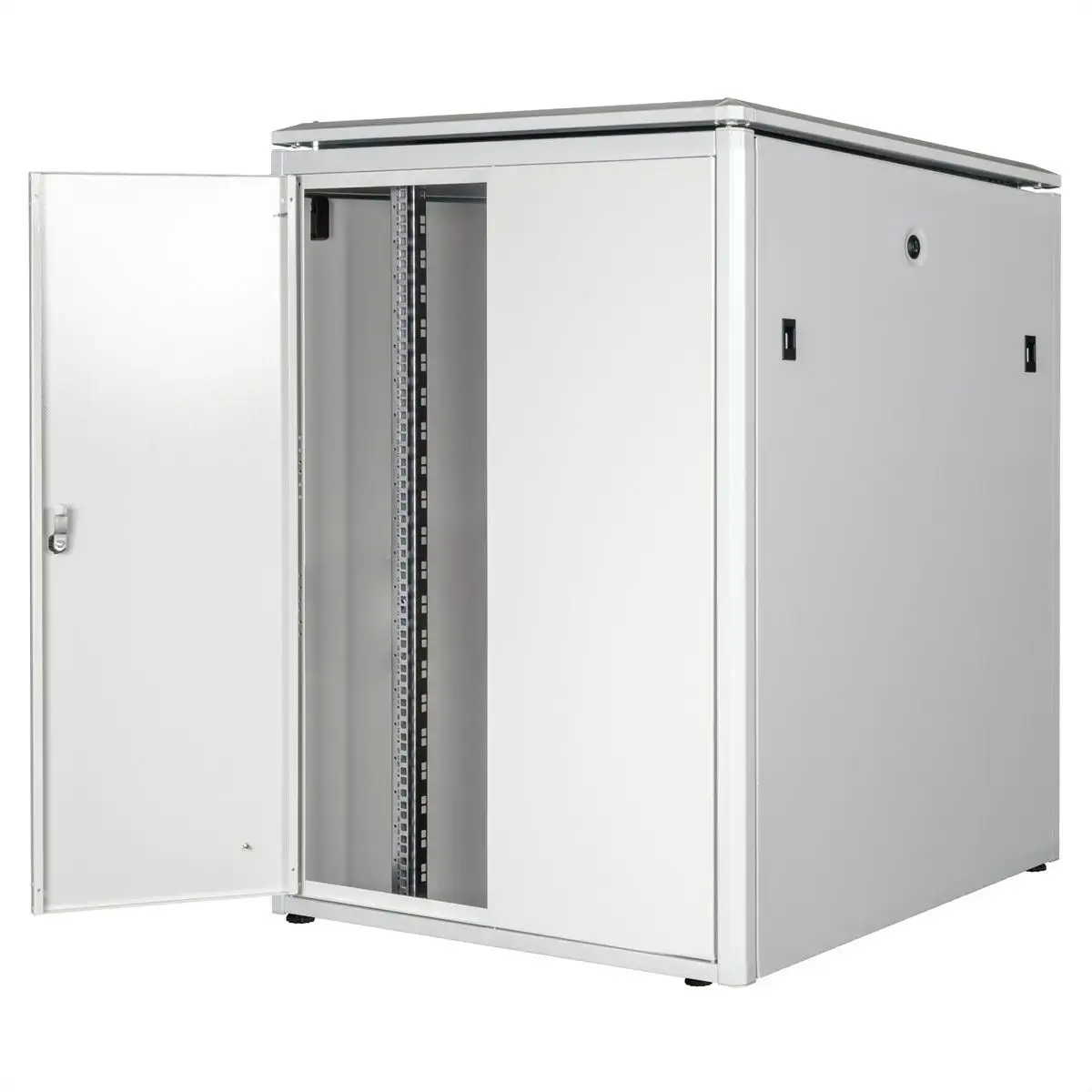

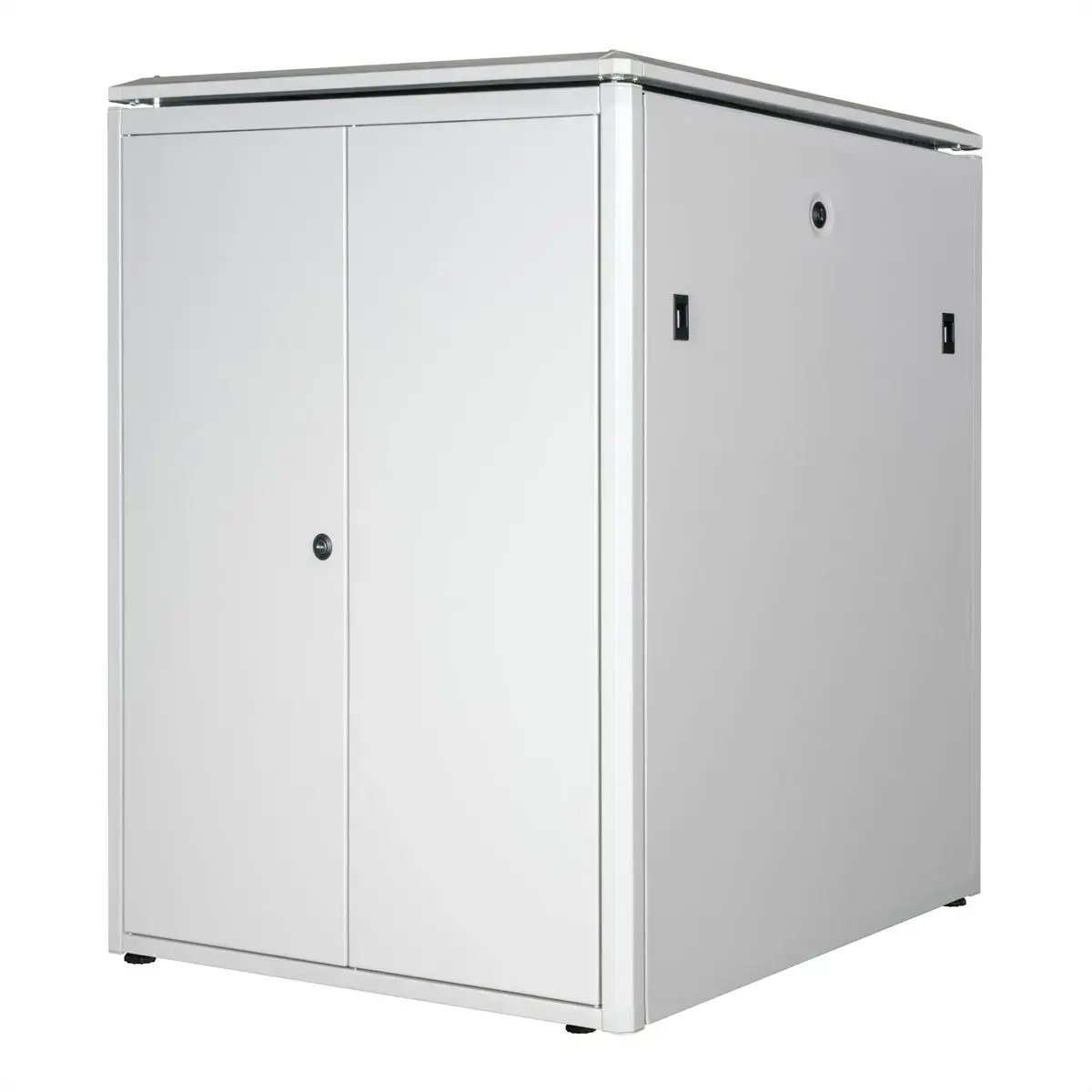

• Access: removable front and rear doors, removable side panels
• Cable management: roof and base brush inlets, slide-on inlet with foam seal (features available in series design)
• Cooling provisions: stepped removable top cover with ventilation slots for fan module installation
• Mounting feet: adjustable for leveling
• Weight: approx. 71.1 kg

How to use

Place the cabinet on a stable, level surface and adjust the feet to ensure the unit stands securely. Install the 19" equipment by sliding it onto the galvanised profile rails and secure each device with appropriate rack screws and cage nuts. Route power and network cabling through the roof and base brush inlets or the slide-on inlet with foam seal to maintain cable organization and reduce dust entry. Use removable side panels and doors to access the interior for installation and maintenance. If required, change the door hinge or remove panels for reconfiguration or transport.

Usage recommendations

To maintain airflow and prevent overheating, leave sufficient clearance at the cabinet front and rear and consider installing a fan module in the top cover for active ventilation if the rack houses high-density or heat-generating equipment. Secure heavy units on lower U positions to preserve stability and distribute weight evenly across the rails. Follow local grounding and cabling standards when connecting power and network lines.
