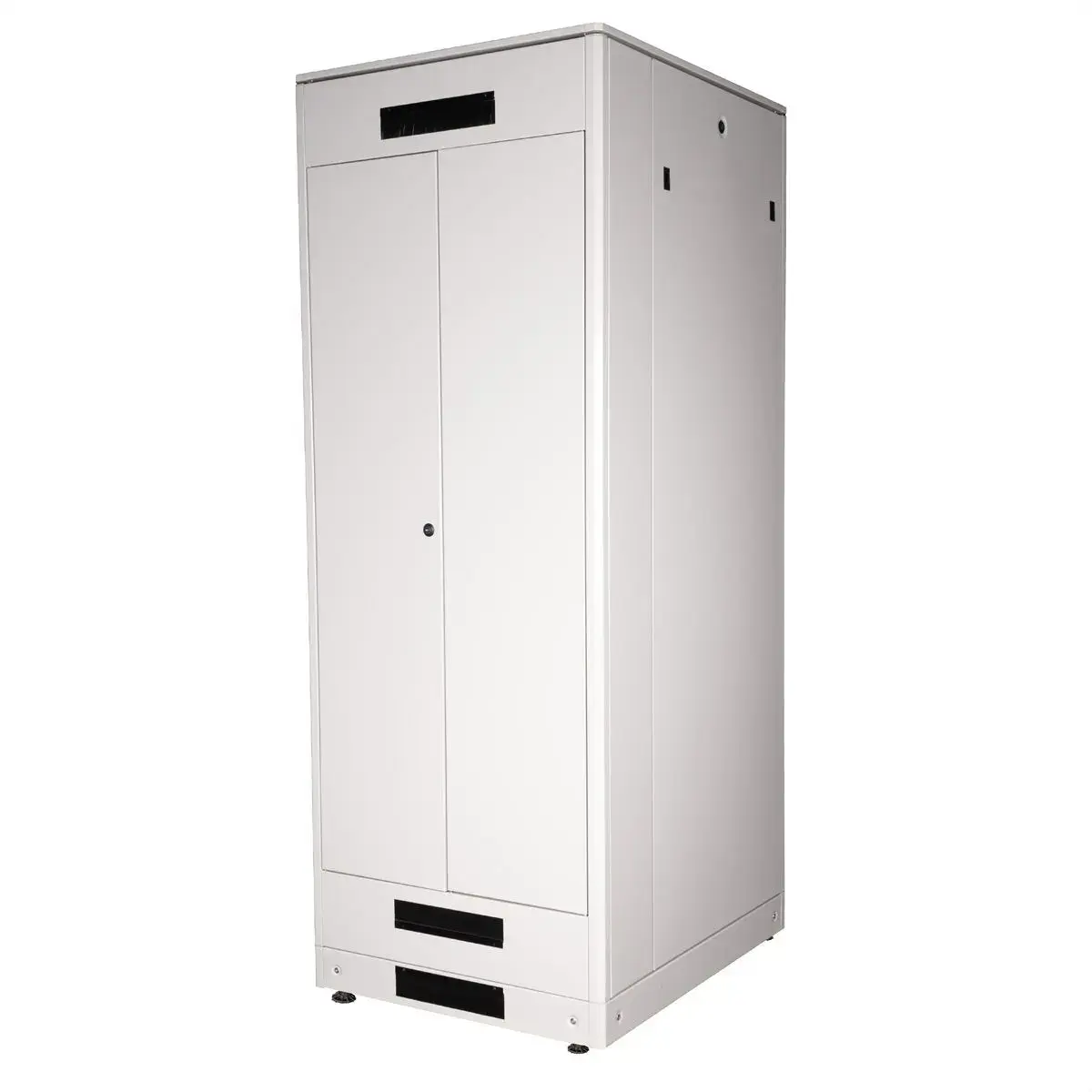

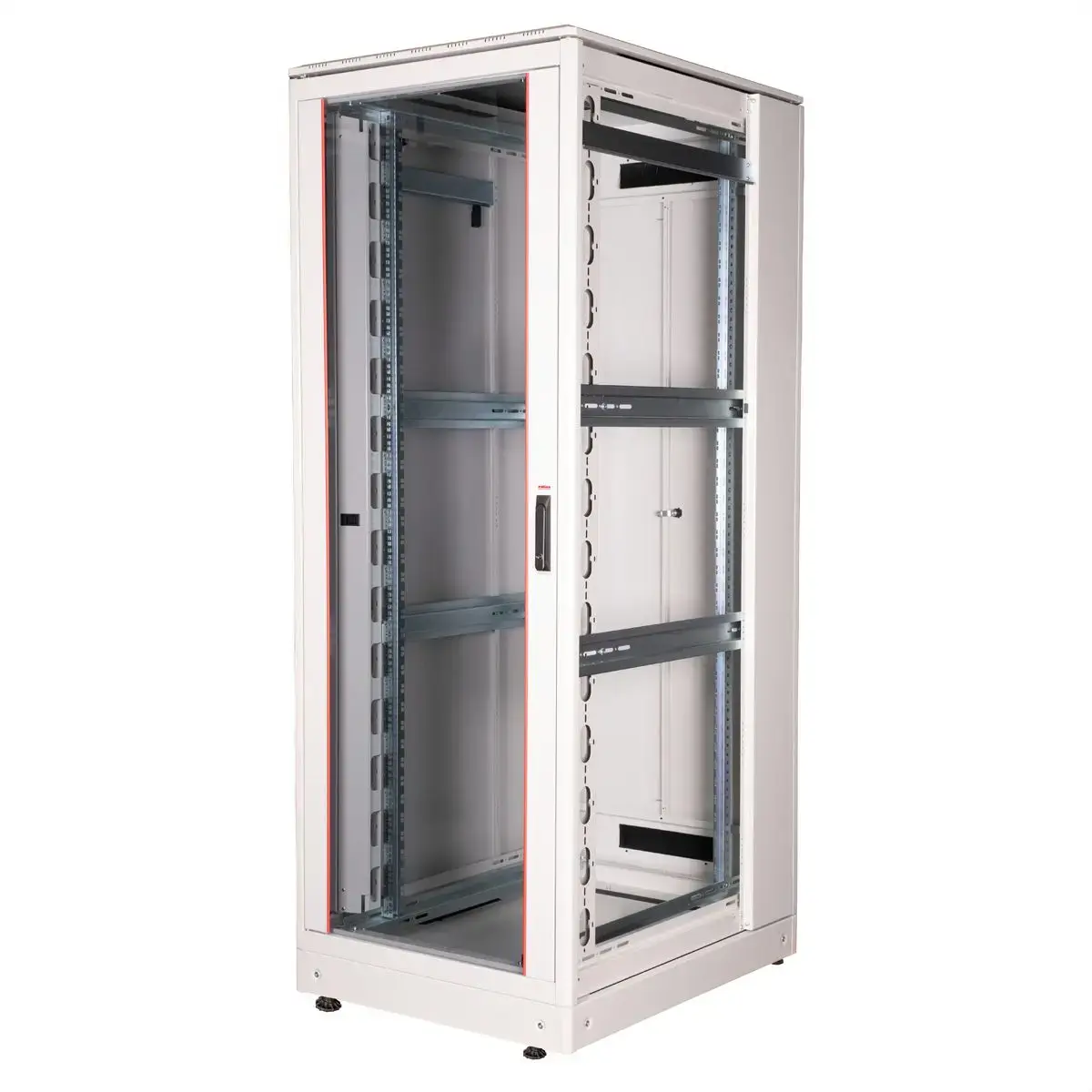

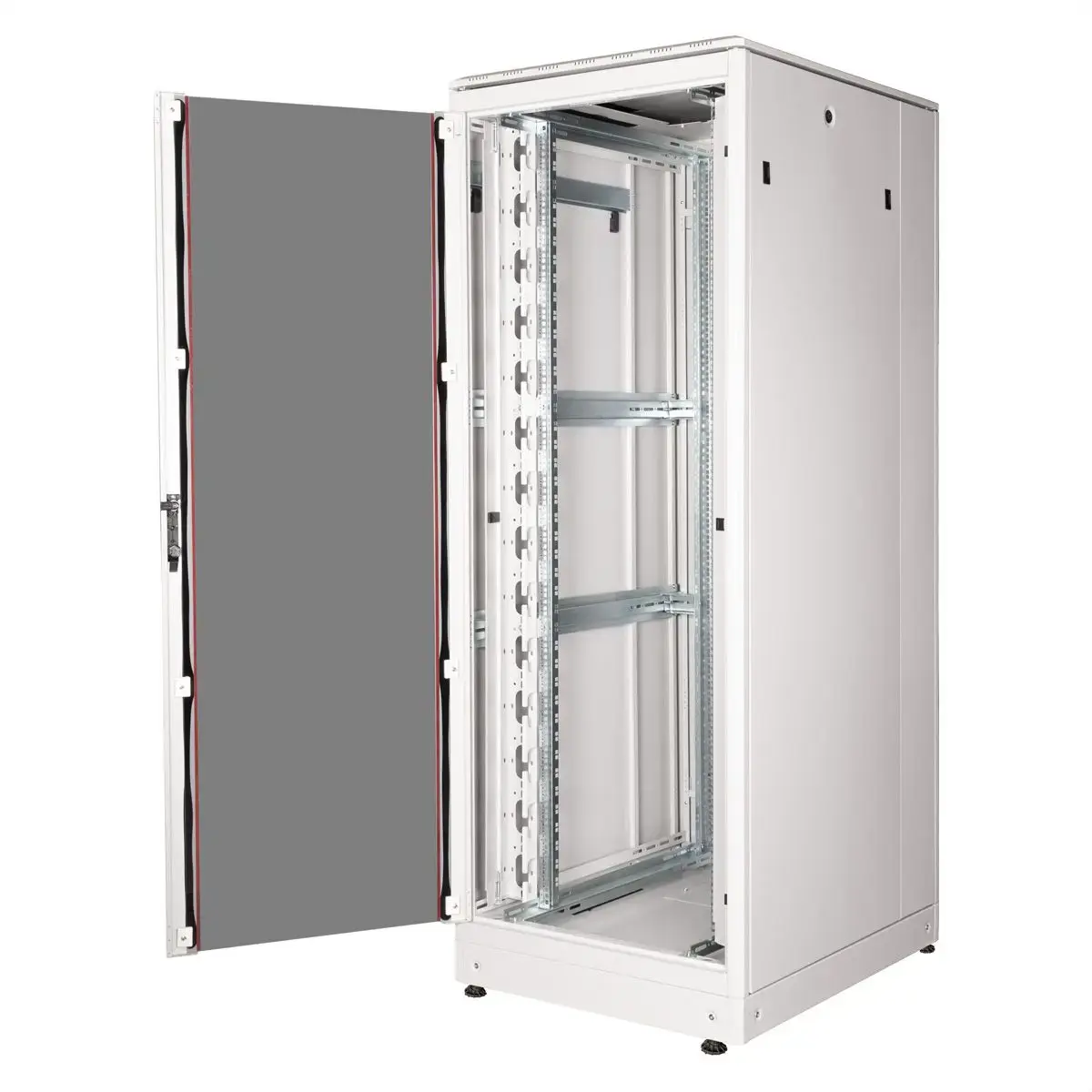

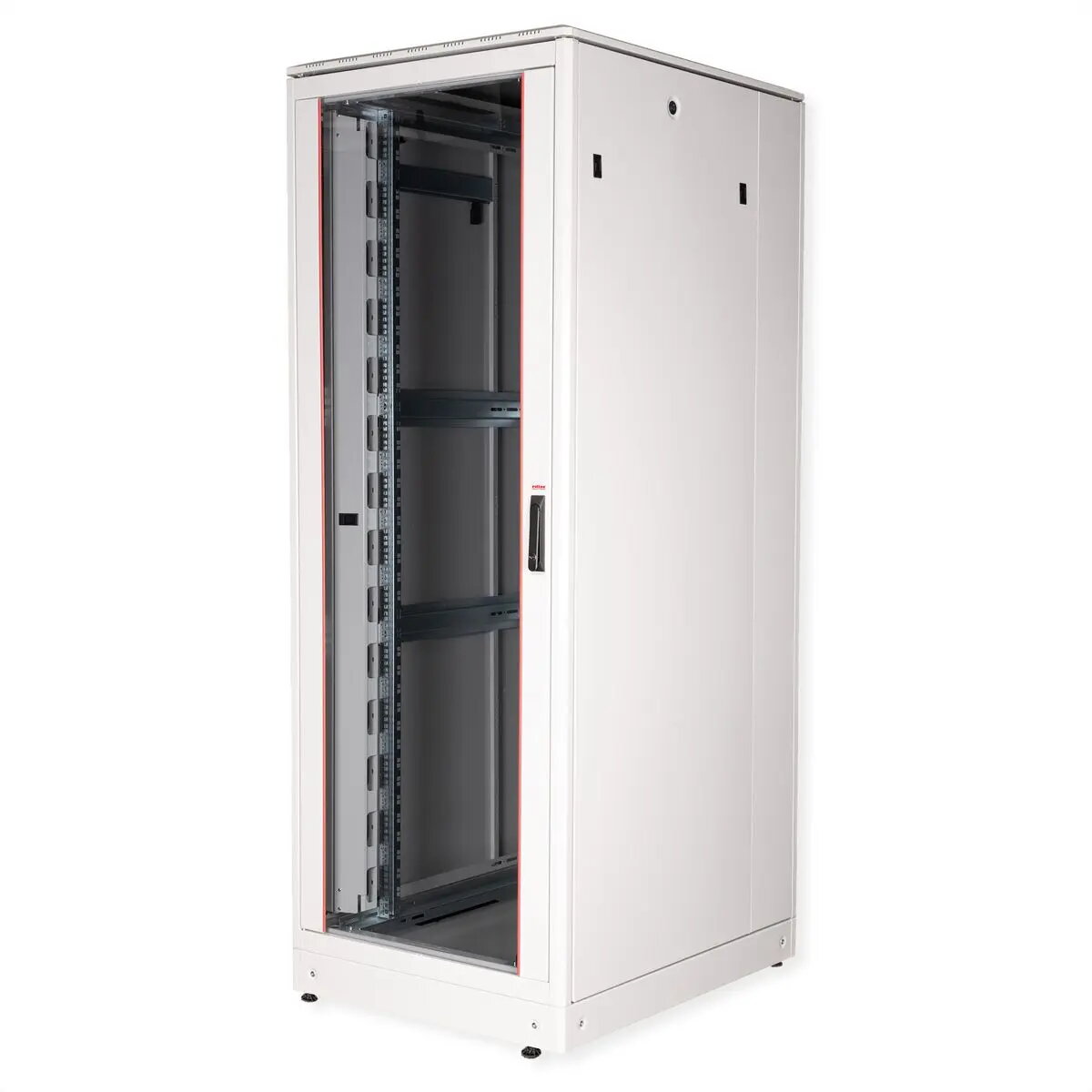

Network Cabinet ROLINE 19-inch Pro 42U, freestanding rack 800x1000 mm, glass door, grey, 600 kg

ROLINE 19-inch Pro 42U network cabinet is a freestanding server and network rack with external dimensions of 800 x 1000 mm (W x D) and a static load capacity of up to 600 kg. The enclosure is constructed from robust steel with sheet thickness up to 1.5 mm, finished with electrostatic powder coating in grey (RAL 7035). It includes a glass front door, removable rear door and side panels, adjustable feet and two pairs of galvanised, reversible 19" mounting rails that are depth-adjustable and connected to additional depth struts for secure installation of servers, switches and patch panels. The cabinet provides IP20 protection and weighs 130.6 kg.

Advantages

The ROLINE Pro 42U cabinet offers a combination of mechanical strength and flexible cable management: brush inlets in roof and base areas, a slide-on inlet with foam seal in the base chassis, and brush strips around the rear door (available from 26U models) reduce dust ingress while allowing cabling. Vertical cable ducts with covers and removable, modular side panels make access and routing easier. A stepped removable top cover with ventilation slots enables improved airflow and straightforward fan module installation. The reversible galvanised rails and modular construction allow depth adjustment and quick modification of the enclosure layout.

Suitable for

• Data centre server and network equipment mounting
• Telecommunication and comms rooms
• Office server closets and network cabinets
• Small to medium enterprise rack installations

Key specifications

• Rack height: 42U
• External dimensions (W x D): 800 x 1000 mm
• Static load capacity: up to 600 kg
• Material: steel, sheet thickness up to 1.5 mm
• Finish: electrostatic powder coating, grey (RAL 7035)
• Front door: glass
• Protection class: IP20
• Weight: 130.6 kg
• Mounting rails: two pairs galvanised 19" profile rails, reversible and depth-adjustable
• Cable management: brush inlets in roof and base, slide-on base inlet with foam seal, brush strips around rear door, vertical cable ducts with covers
• Cooling provisions: stepped removable top cover with ventilation slots, fan module installation possible
• Accessibility: removable front/rear doors and side panels, door hinge convertible

How to use

Place the freestanding ROLINE 42U cabinet on a level surface and adjust the feet to stabilise the enclosure. Install equipment on the 19" mounting rails, adjusting rail depth as required and securing devices with appropriate rack screws. Route network and power cabling through the roof or base brush inlets or use the vertical cable ducts with covers for structured wiring. Use the removable top cover ventilation slots for passive airflow or install compatible fan modules in the top section if forced cooling is needed. Doors and side panels can be removed to provide full access during installation and maintenance.

Usage recommendations

Verify total equipment weight and distribution before mounting to ensure the cabinet load capacity of 600 kg is not exceeded. Maintain clear airflow paths and place heavy devices lower in the rack. Use the provided cable management features (brush inlets, vertical ducts and sealed base inlet) to reduce dust ingress and keep cabling organised. For installations in shared or restricted spaces, ensure the IP20 protection level and glass front door meet local security and environmental requirements.
