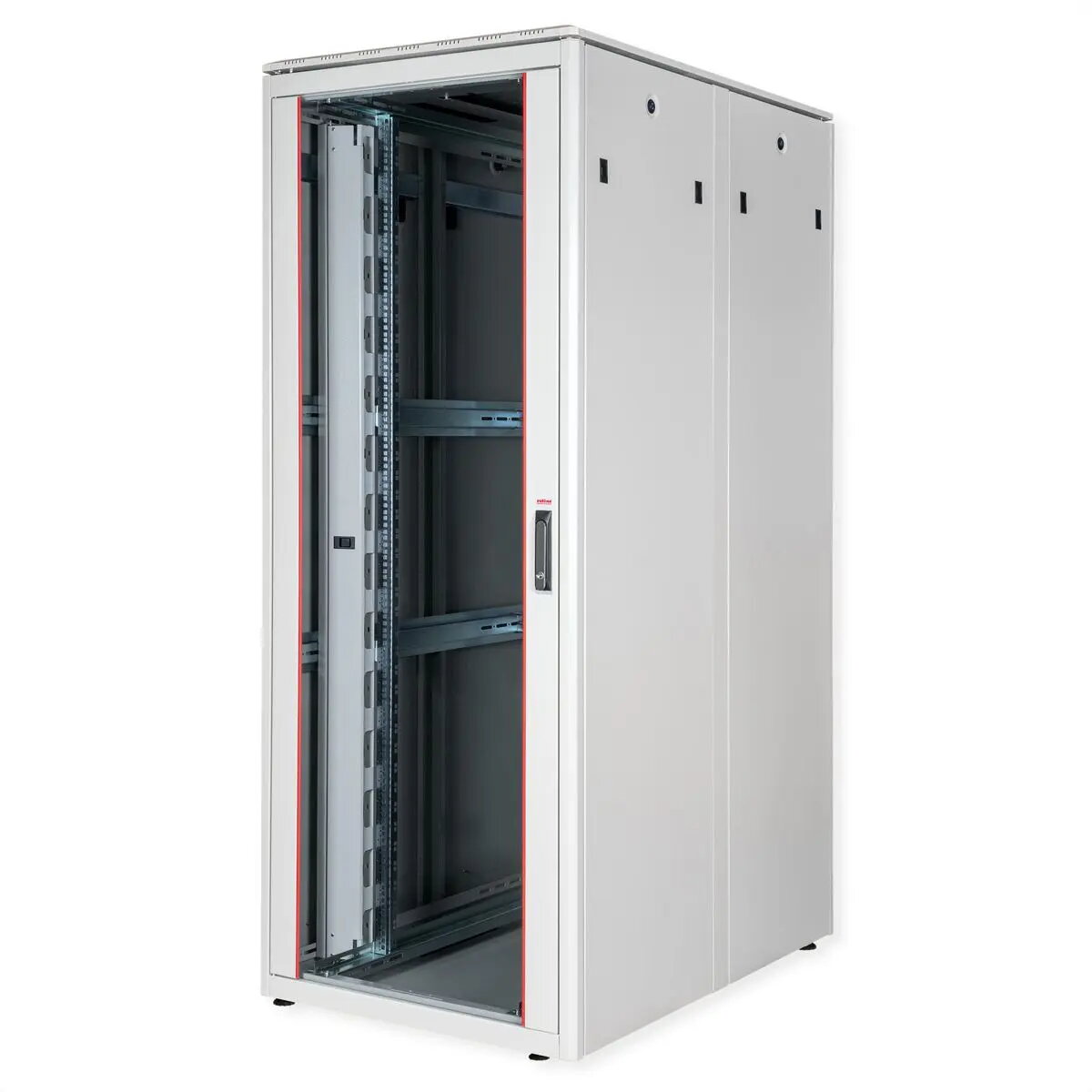

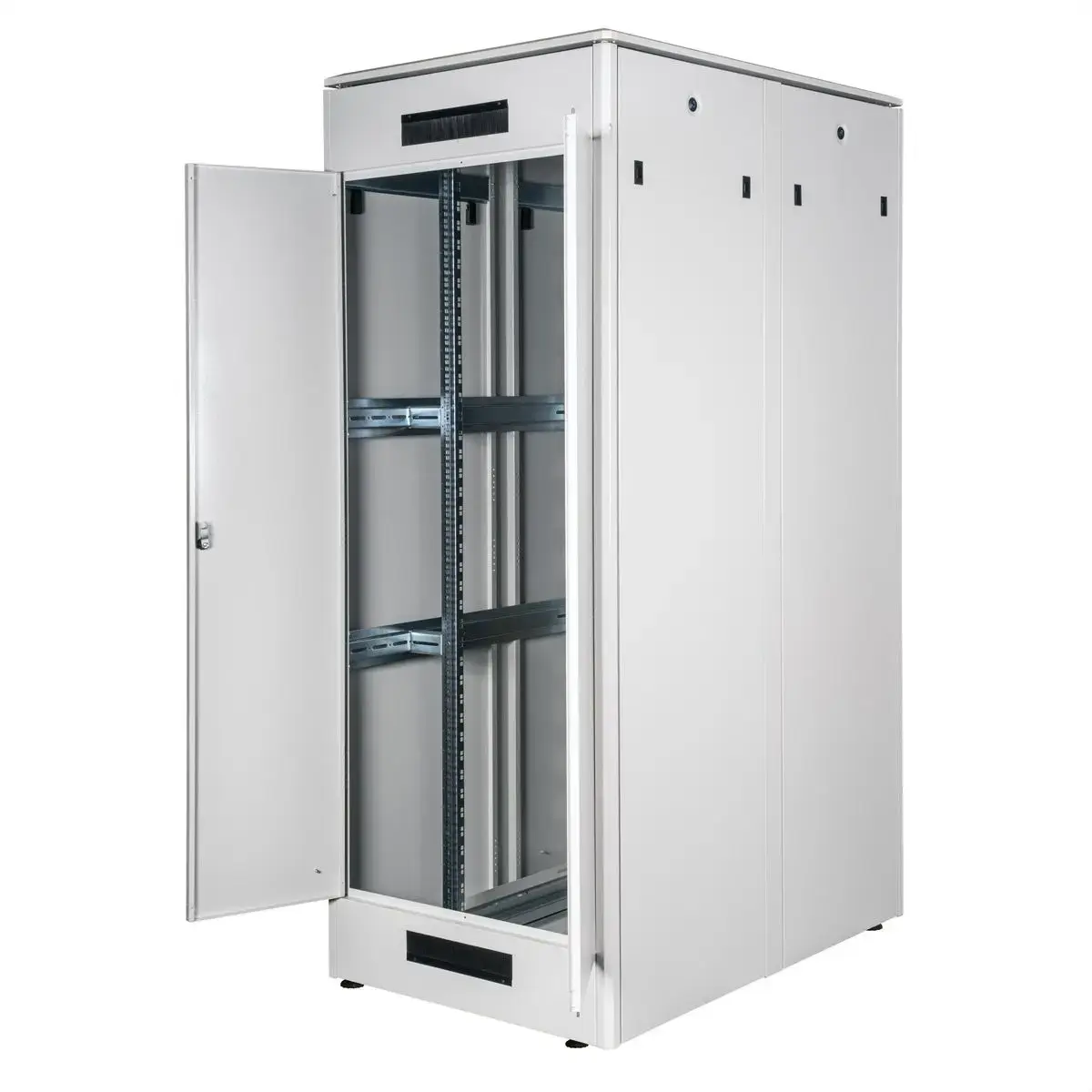

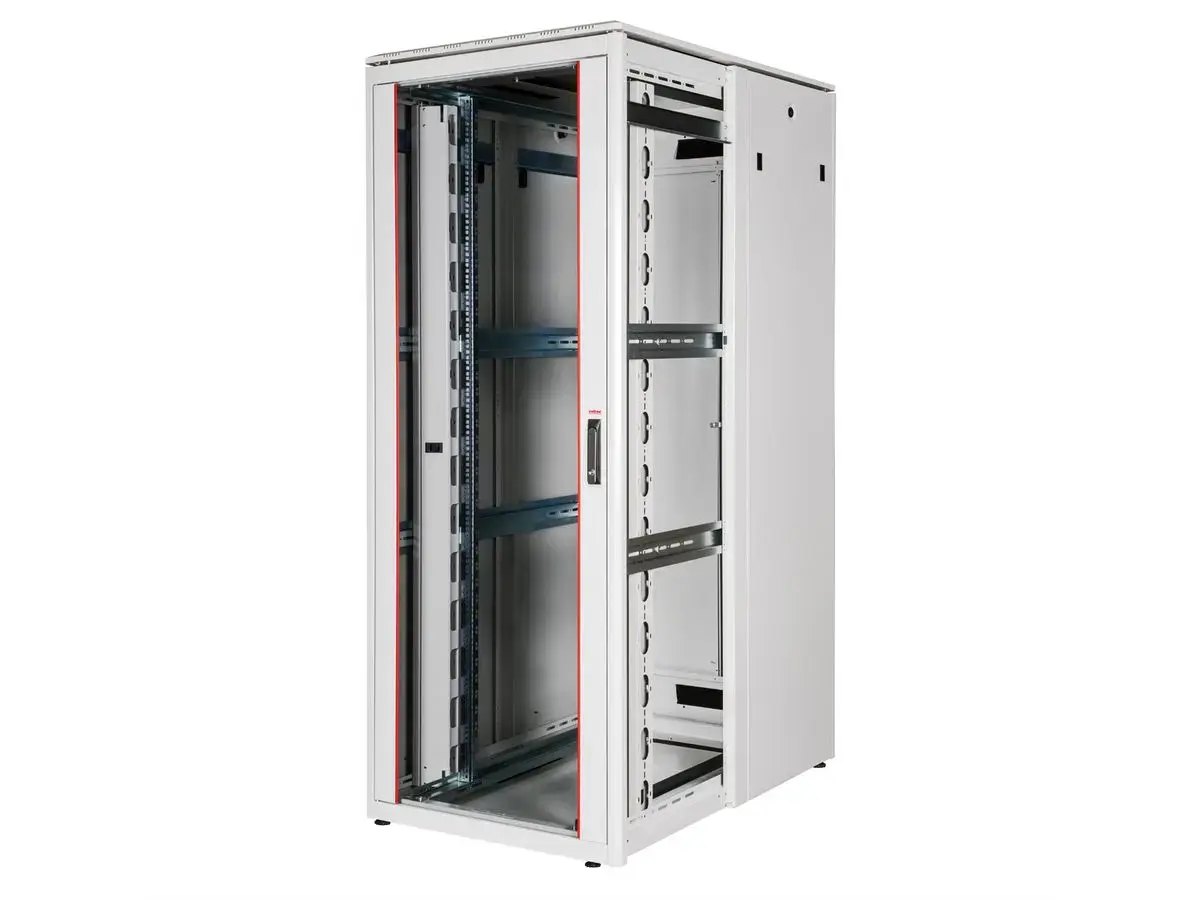

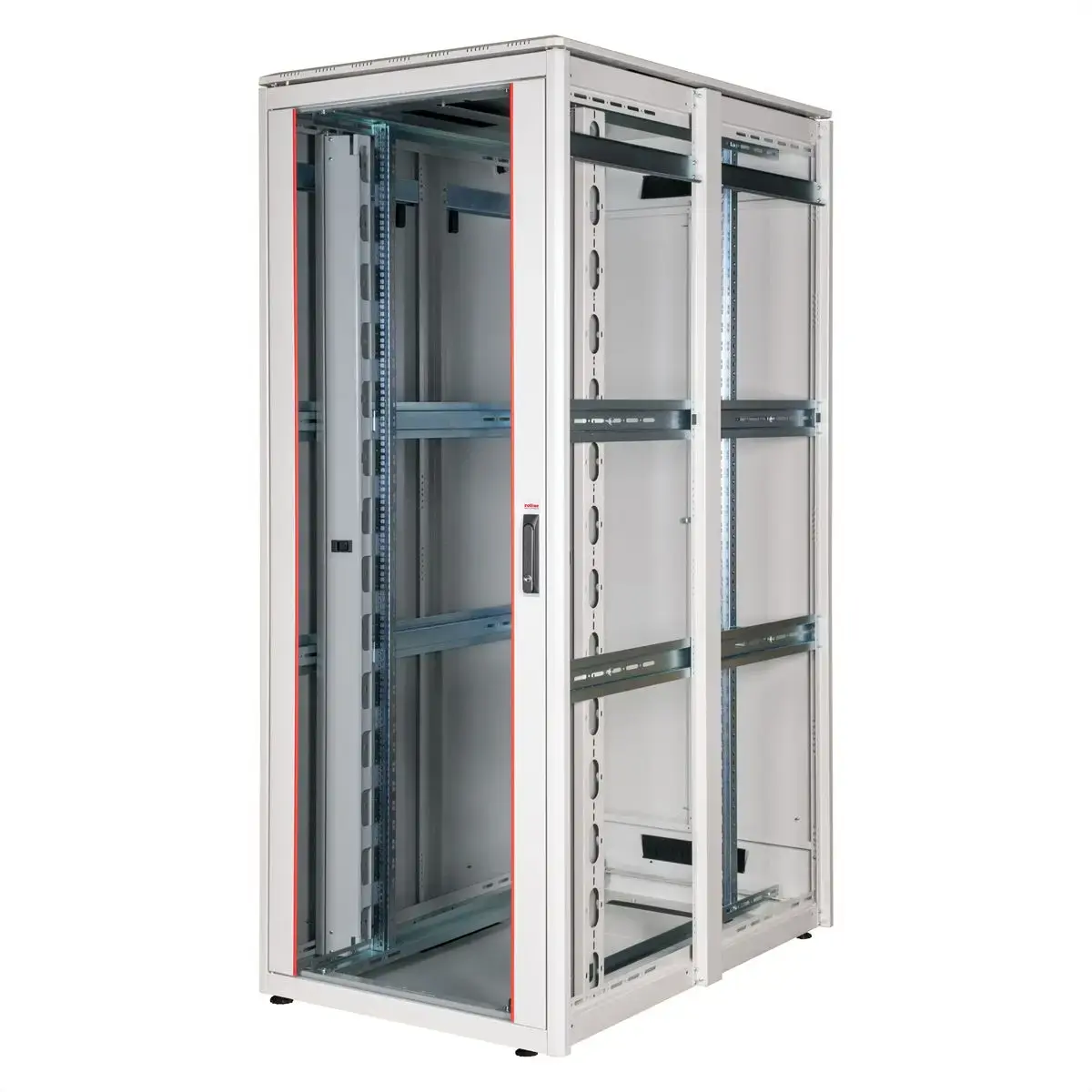

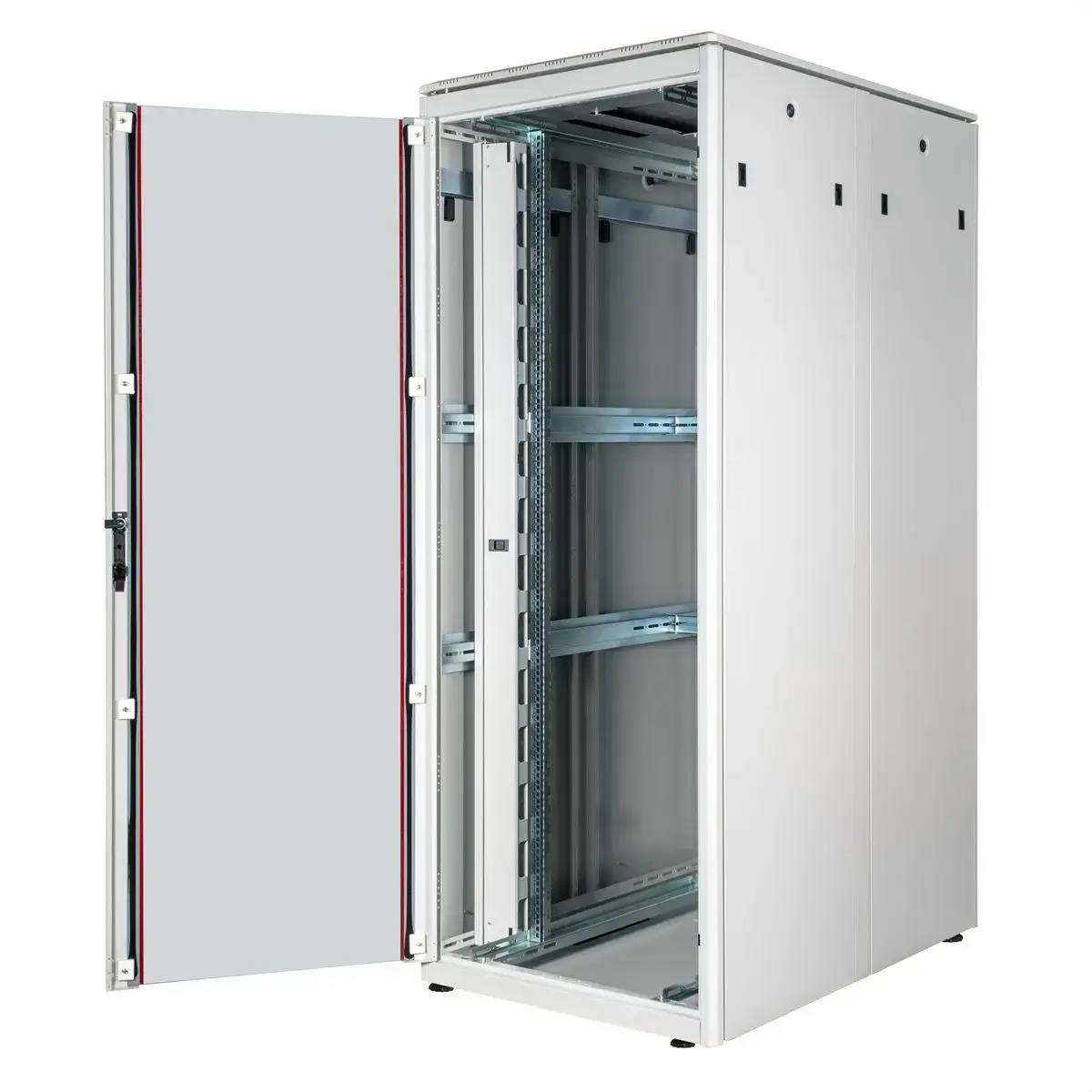

ROLINE 19-inch Network Cabinet Pro 42U freestanding rack 800x1200 mm, glass door, IP20, 600 kg

ROLINE 19-inch Network Cabinet Pro 42U is a freestanding rack cabinet with external dimensions of 800 x 1200 mm (W x D) and 42U usable rack height. The cabinet is constructed from robust steel with sheet thickness up to 1.5 mm, fitted with two pairs of galvanised adjustable 19" profile rails that can be mounted in either direction and adjusted in depth. The front door is glazed, the enclosure meets IP20 protection and the load capacity is up to 600 kg. The design includes removable side panels and doors, brush inlets in roof and base areas, a slide-on inlet in the base chassis with foam rubber seal, brush strips around the rear door and vertical cable ducts with covers to support structured cabling and airflow management.

Advantages

The cabinet combines solid mechanical strength and flexible cabling options: adjustable depth rails, vertical cable ducts and multiple brush openings enable neat cable routing while maintaining protection at IP20. Removable doors and side panels provide easy access for equipment installation and maintenance. The stepped removable top cover with ventilation slots allows improved air circulation and simple fan module installation. The steel construction with powder coating ensures durable surface protection suitable for server rooms and network facilities.

Suitable for

• Installation of 19" servers, switches and patch panels in data centres and server rooms
• Network and telecom equipment racks in office IT rooms
• Structured cabling projects requiring vertical cable ducts and brush inlets
• Environments needing a load capacity up to 600 kg and IP20 protection

Key specifications

• Usable height: 42U
• External footprint (W x D): 800 x 1200 mm
• Load capacity: up to 600 kg
• Material: steel, sheet thickness up to 1.5 mm
• Front door: glass (glazed)
• Protection rating: IP20
• Mounting: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Cabling features: brush inlets in roof and base, slide-on inlet with foam seal, brush strips at rear door, vertical cable ducts with covers
• Access: removable front and rear doors, removable side panels, interchangeable door hinge
• Top cover: stepped removable cover with ventilation slots for fan module installation
• Finish: electrostatic powder coating (standard grey or black)

How to use

Place the freestanding cabinet on a stable, level floor and adjust the feet to ensure it is plumb. Install the galvanised 19" profile rails at the required depth for your equipment, then mount servers, switches and patch panels according to standard 19" rack mounting practices. Route power and network cabling through the brush inlets, slide-on base inlet or vertical cable ducts to keep cables organised and reduce dust ingress. Use the removable side panels and doors to gain access during installation and maintenance; the front glazed door provides visual access without opening. If additional cooling is required, fit fan modules into the removable top cover slots following the fan manufacturer's instructions.

Usage recommendations

For safe operation and longevity, distribute equipment weight evenly across the cabinet and stay within the 600 kg load limit. Maintain clear airflow paths by organising cables and using the provided ventilation options; consider active cooling if installed equipment generates high heat. Secure heavy items at lower U positions to lower the centre of gravity and use the adjustable feet for stable positioning on uneven floors. Regularly inspect seals and brush strips to preserve IP20-level protection against solid objects.
