Patch Panel ROLINE 19-inch 1U 40x60mm Grey Steel

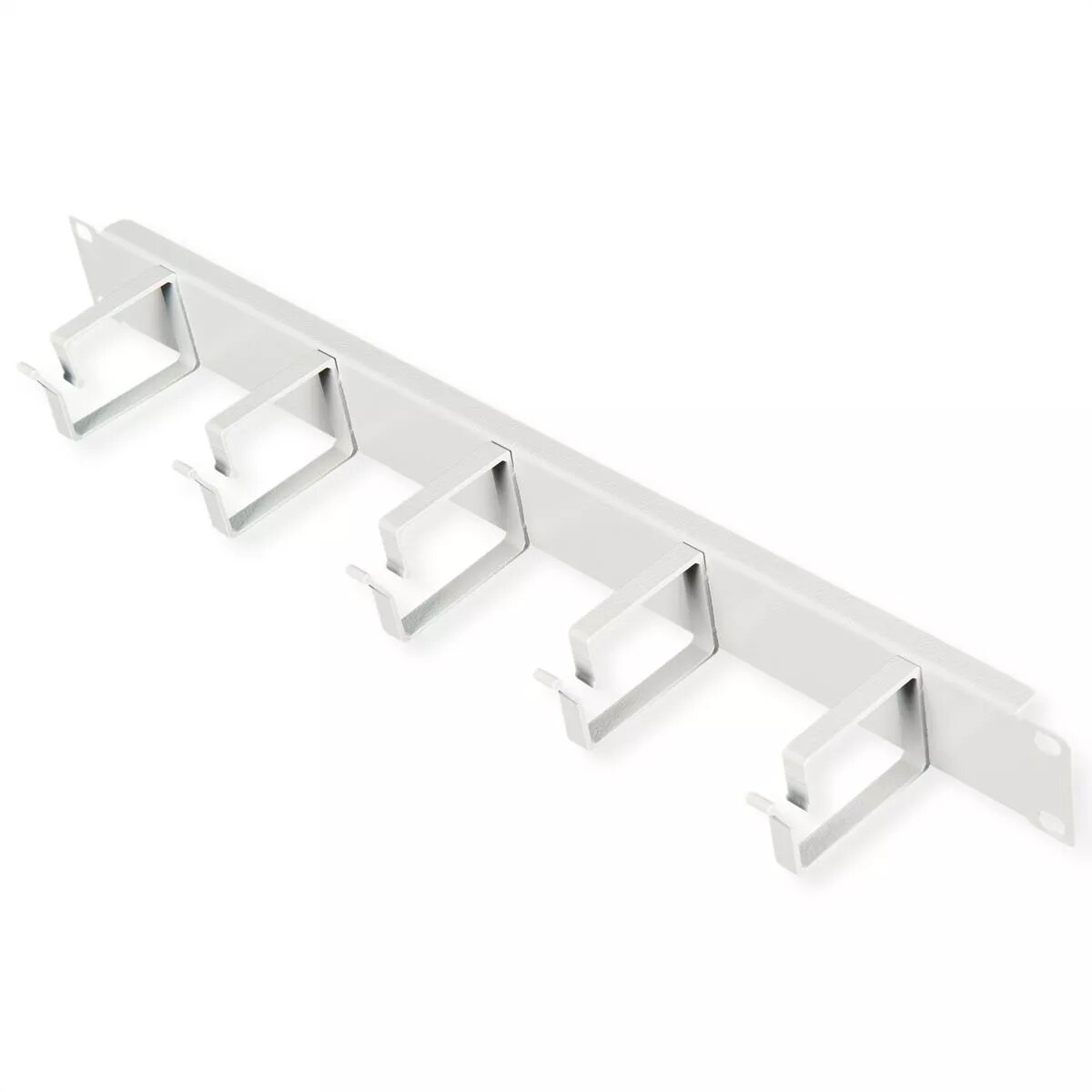

The ROLINE 19-inch 1U patch panel is a cable storage panel with a grey steel housing designed for mounting on 19-inch profile rails. Measuring 480 mm in width, 44 mm in depth and 80 mm in height, it provides a compact solution for organized horizontal routing of connection cables in network and server enclosures.

Advantages

The panel includes five cable routing brackets that allow simple and secure horizontal guidance of cables, improving cable management and accessibility. Its 19-inch 1U form factor and steel construction ensure compatibility with standard racks and durability for professional network installations.

Suitable for

• 19-inch network racks and server cabinets
• Organising patch and connection cables in data centres
• Small and medium office network installations
• Cable management in telecommunications and IT closets

Key specifications

• Brand: ROLINE
• Model: 19-inch 1U
• Material: Grey steel
• Mounting: 19-inch profile rails
• Dimensions (W×D×H): 480 × 44 × 80 mm
• Cable routing brackets: 5
• MPN: 26.21.0098
• EAN: 7630049600997

How to use

Mount the panel to the 19-inch profile rails in your rack or cabinet using standard rack screws. Route connection and patch cables through the five built-in routing brackets to achieve organized horizontal cable runs. Adjust cable placement within the brackets to avoid strain on connectors and to maintain clear access to ports and other rack-mounted equipment.

Usage recommendations

For optimal cable management, group cables by type or destination before routing and avoid overfilling the brackets; use additional panels or vertical management accessories if needed to maintain serviceability and airflow within the rack.
