Freestanding rack ROLINE Pro 26U 600x1000mm black IP20

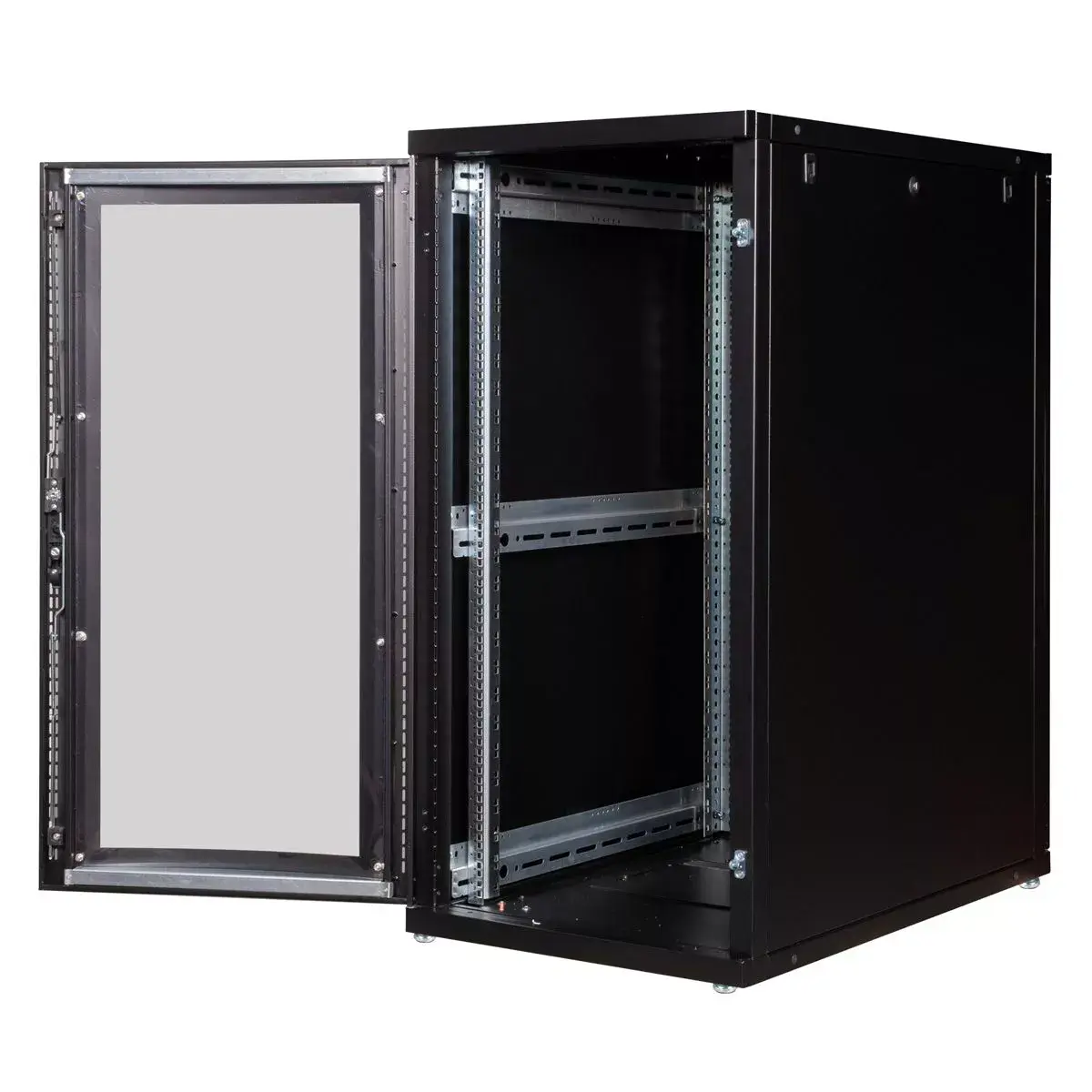

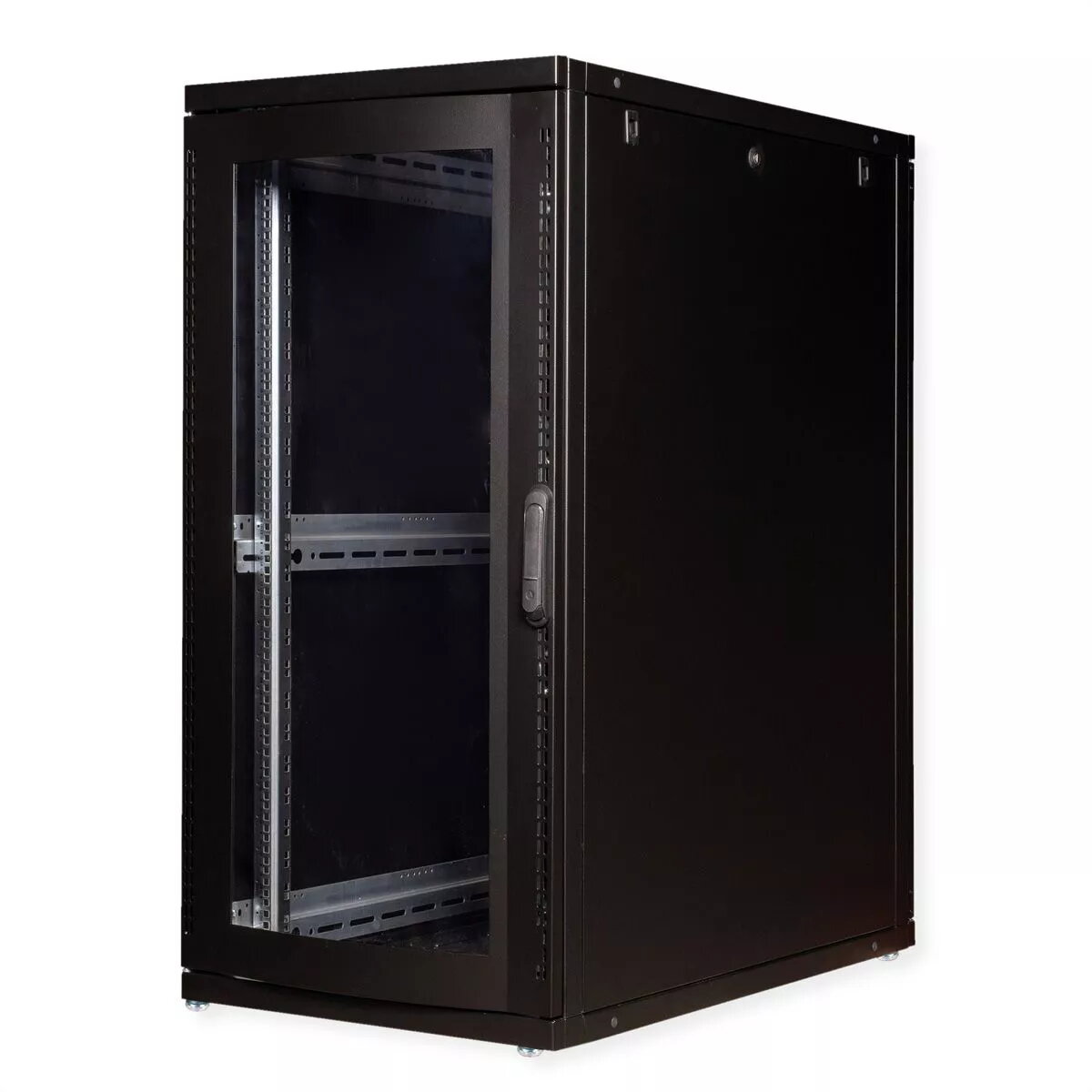

The ROLINE Pro 26U freestanding server rack (600x1000 mm, black, IP20) is a 19-inch cabinet designed for network and server installations with a capacity of 26U and a maximum load capacity of 1000 kg. The steel construction (material thickness up to 2.0 mm) is electrostatically powder-coated in black (RAL 9005) and includes two pairs of galvanised 19" mounting rails with depth adjustment and readable height units. The rack offers multiple cable inlets with brush strips, a slide-on inlet with foam rubber seal and additional brush inlet in the base chassis (side inlets on roof and base from 800 mm width), perforated front and rear doors to improve airflow and a perforated roof cover for fan module installation. Modular, lockable and removable side panels and replaceable hinges increase accessibility and serviceability.

Advantages

This freestanding rack combines robust steel construction and a high load rating with flexible mounting options and good airflow management. Adjustable, depth-adjustable 19" profile rails with readable U markings facilitate precise equipment installation. Cable management options, multiple inlet types and a perforated roof for fan modules support structured cabling and thermal management. The removable and lockable side panels and adaptable door hinges simplify maintenance and deployment in professional IT environments.

Suitable for

• Small and medium server rooms requiring a 26U 19" rack
• Network equipment and patch panels mounting
• Environments needing structured cabling and cable inlet options
• Installations where airflow and fan module mounting are required

Key specifications

• Mounting: 19" cabinet, 26U
• External dimensions (W x D): 600 x 1000 mm
• Colour: Black (RAL 9005)
• Material: Steel, up to 2.0 mm thickness; electrostatic powder coating
• Maximum load capacity: 1000 kg
• Protection class: IP20
• Weight: 79 kg
• Mounting rails: Two pairs galvanised 19" rails, depth-adjustable with readable U markings

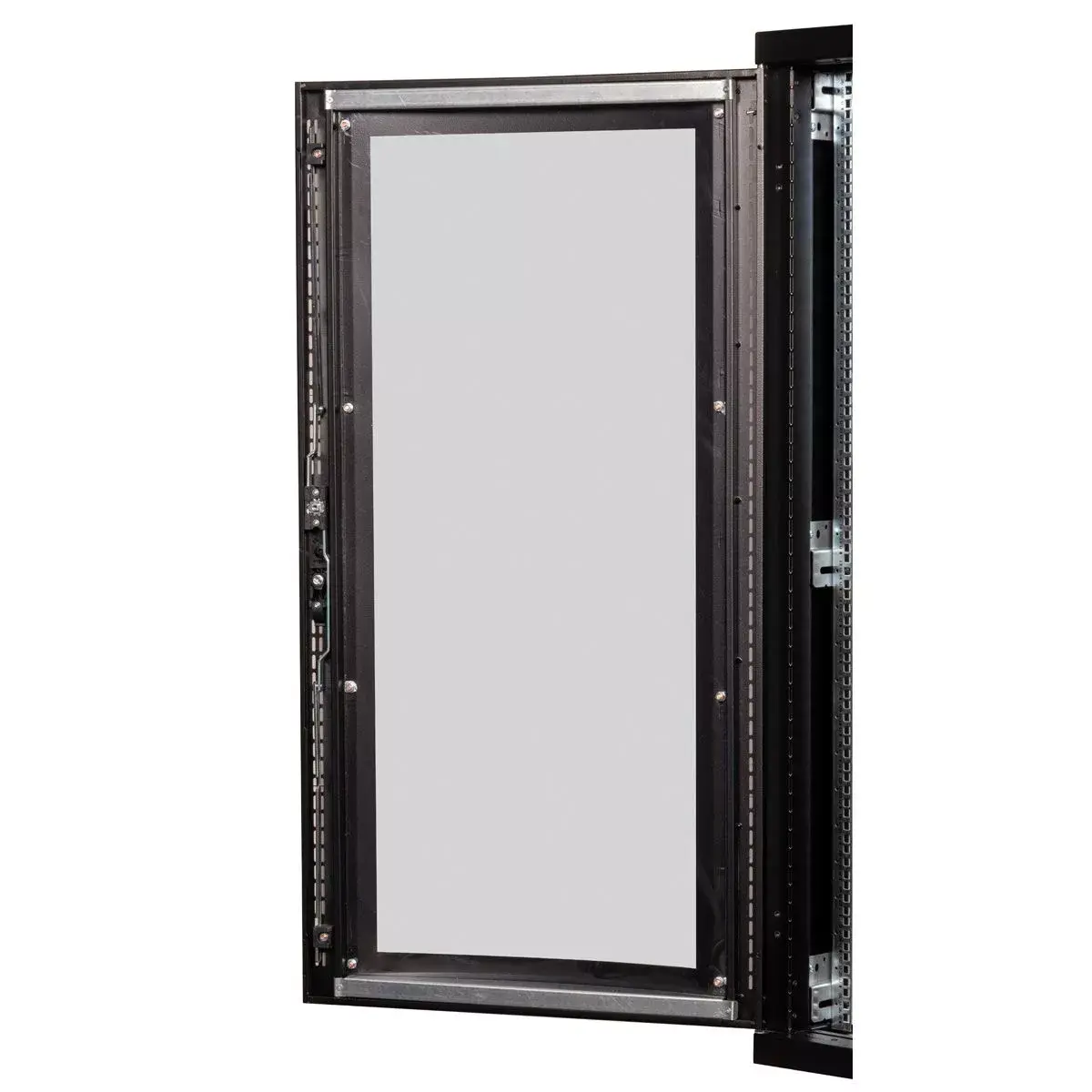

• Doors and panels: Perforated single-leaf front door, double-leaf rear door, modular lockable removable side panels
• Cable management: Inlets with brushes, slide-on inlet with foam rubber seal, additional brush inlet in base chassis
• Roof: Perforated cover for fan module installation

How to use

Place the freestanding rack on a level surface and adjust the feet for stability. Mount equipment on the galvanised 19" profile rails, using the readable U markings to align devices. Route cables through the provided brush inlets or the slide-on inlet with foam rubber seal; use the base chassis inlet where available. Install fans or fan modules onto the perforated roof if additional airflow is required. Secure side panels and doors and lock them if necessary. If needed, remove panels or doors for maintenance or deeper access; hinges can be changed to suit site requirements.

Usage recommendations

For optimal airflow, leave appropriate clearance at the front and rear for ventilation and consider installing fan modules in the perforated roof for active cooling. Use the depth adjustment on the mounting rails to accommodate different equipment depths and secure heavy devices near the bottom to maintain stability. Follow standard grounding and cabling practices and observe the 1000 kg load limit when populating the rack.
