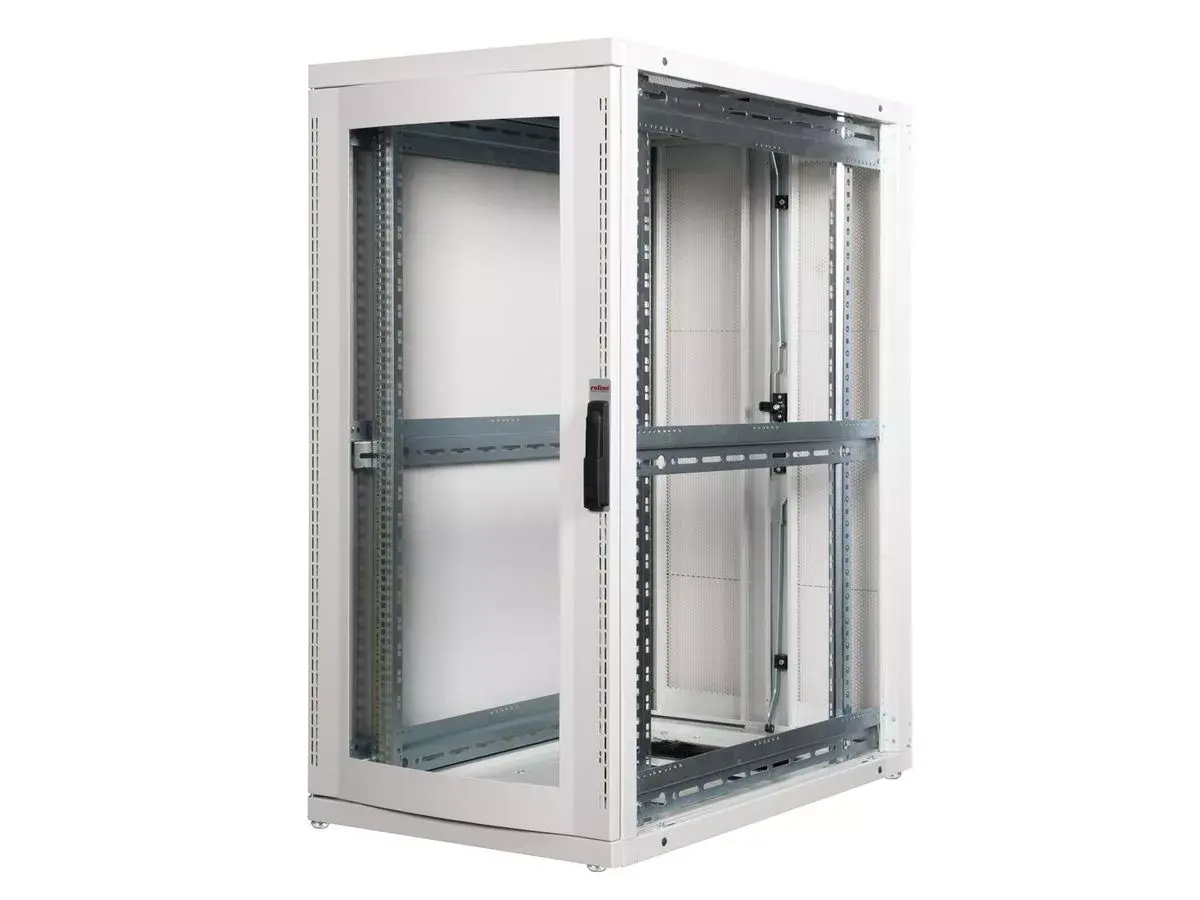

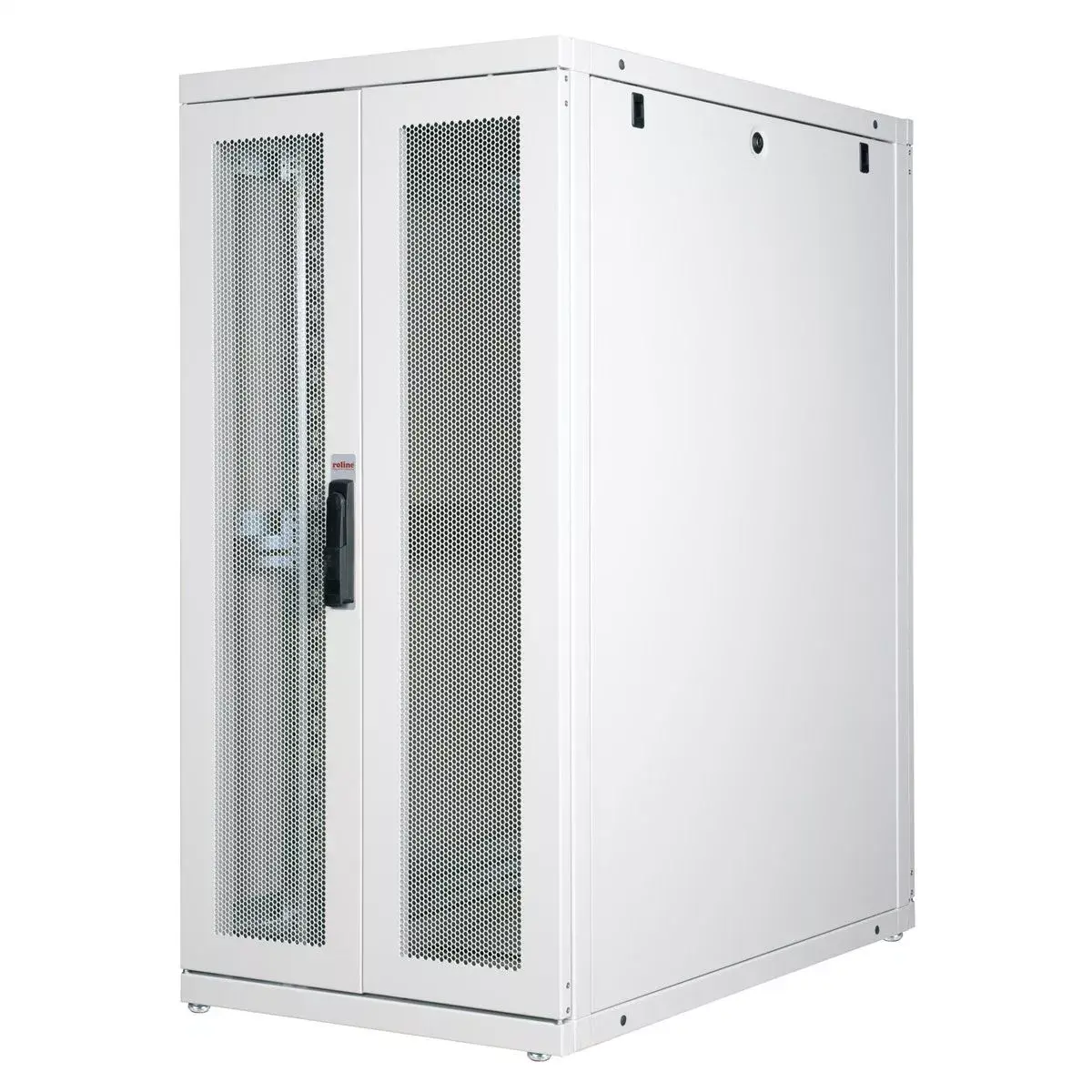

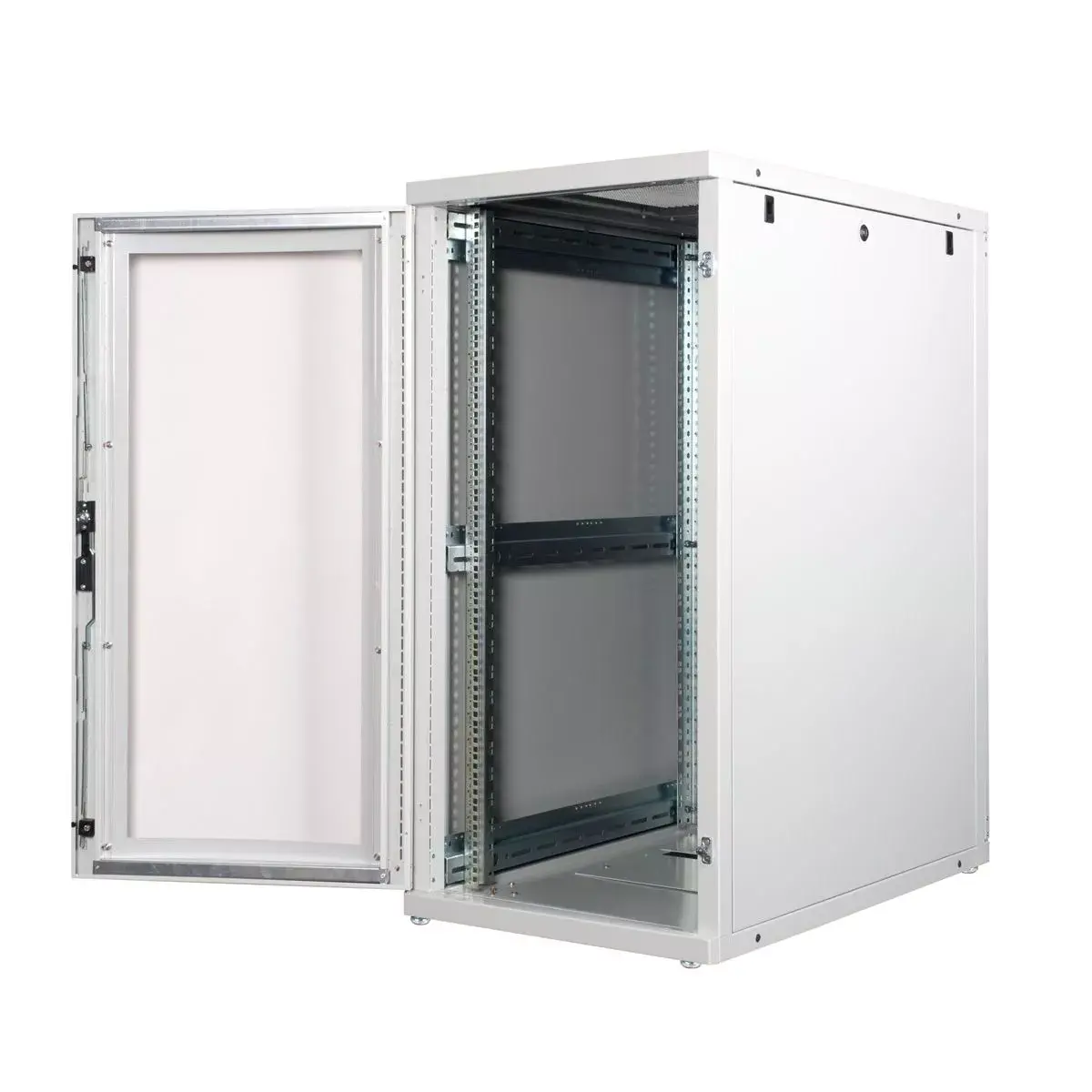

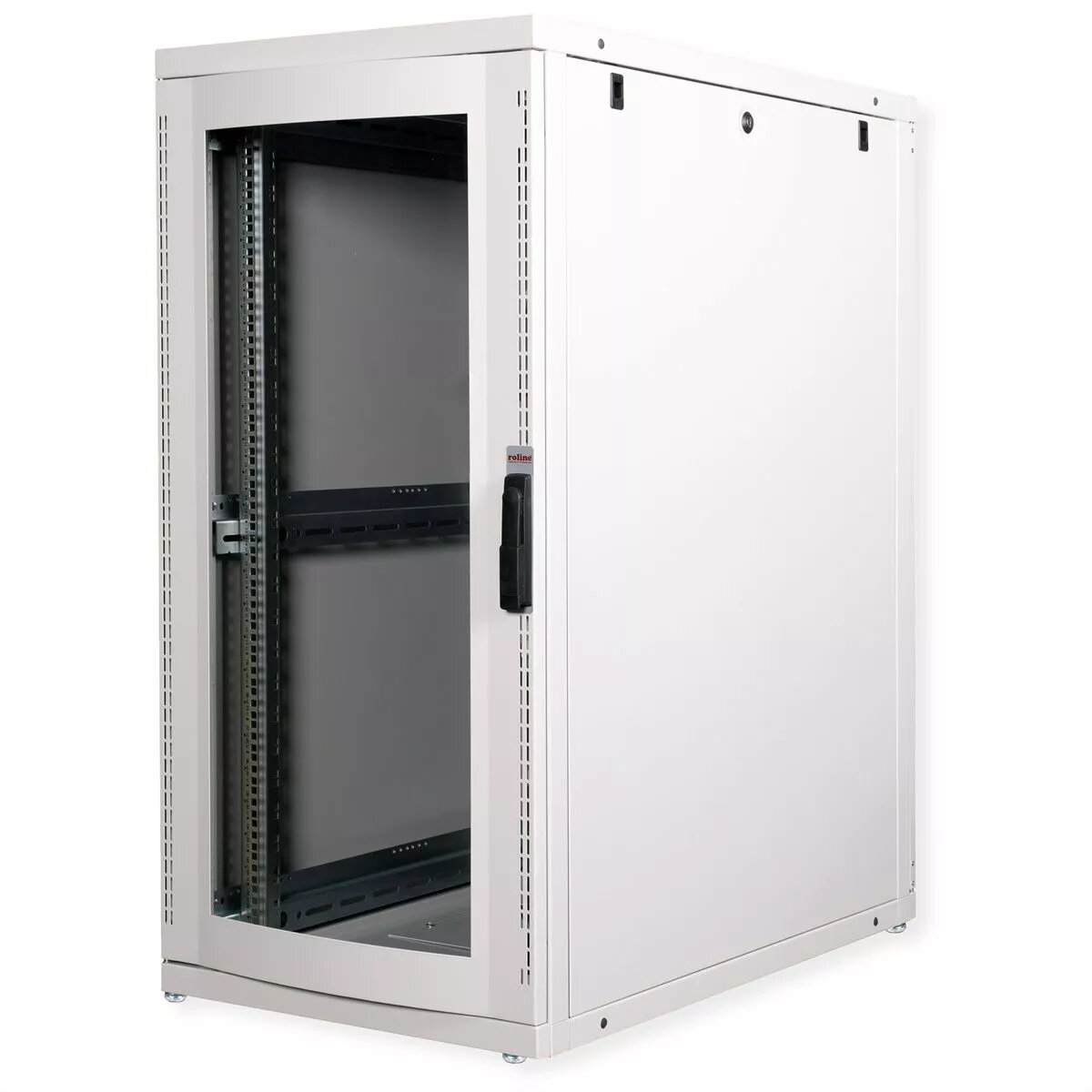

Freestanding rack ROLINE Pro 26 U 600x1000 grey Plexiglas 1000 kg

The ROLINE Pro 26 U freestanding 19-inch server rack (600x1000 mm) is designed for flexible network cabling and reliable equipment mounting. It offers 26U of usable space, a maximum load capacity of 1000 kg and comes in grey (RAL 7035) with a Plexiglas front option. The cabinet is constructed from robust steel with material thicknesses up to 2.0 mm, electrostatically powder-coated and equipped with adjustable feet and an IP20 protection rating.

Advantages

The enclosure provides multiple cable entry options including side brush inlets, a slide-on inlet with foam rubber seal and an additional brush inlet in the base chassis (available from 800 mm width), as well as a perforated roof for fan module installation. Perforated single-leaf front doors and double-leaf rear doors with swivel handles and profile half cylinders improve airflow. Inside, two pairs of galvanised 19" profile rails are fitted with readable height units and adjustable depth, connected by depth braces. Modular, lockable and removable side panels (horizontally divided from 42U) and changeable door hinges enhance accessibility and serviceability.

Suitable for

• Mounting 19-inch servers, switches and network equipment up to 26U
• Data centre racks and small server rooms requiring up to 1000 kg static load
• Network cabling installations that need multiple cable entry points and airflow management

Key specifications

• Form factor: 19-inch freestanding rack, 26U
• External dimensions (W x D): 600 x 1000 mm
• Max. load capacity: 1000 kg (static)
• Material: steel, up to 2.0 mm thickness; electrostatic powder coating
• Doors: perforated single-leaf front door, double-leaf perforated rear door; Plexiglas front option
• Cable entries: brush inlets, slide-on inlet with foam rubber seal, base chassis brush inlet (from 800 mm width)
• Rail system: two pairs of galvanised 19" profile rails with readable U markings and adjustable depth, depth braces
• Weight: 79 kg
• Protection rating: IP20
• Colour: grey (RAL 7035)
• Manufacturer: ROLINE, MPN: 26.21.0149, EAN: 7630049601529

How to use

Place the freestanding rack on a stable, level surface and adjust the feet to ensure correct levelling. Install equipment into the 19" profile rails, adjusting rail depth to suit equipment depth and securing units at the specified U positions. Use the provided cable inlets and brush seals to route and protect cables, and fit fan modules into the perforated roof where required to improve airflow. Lockable doors and removable side panels allow secure access and easier maintenance.

Usage recommendations

For optimal thermal management, combine the perforated doors and roof with active ventilation (fan modules) when populating the rack with heat-generating equipment. Verify total equipment weight before installation to ensure it does not exceed the 1000 kg static load rating.
