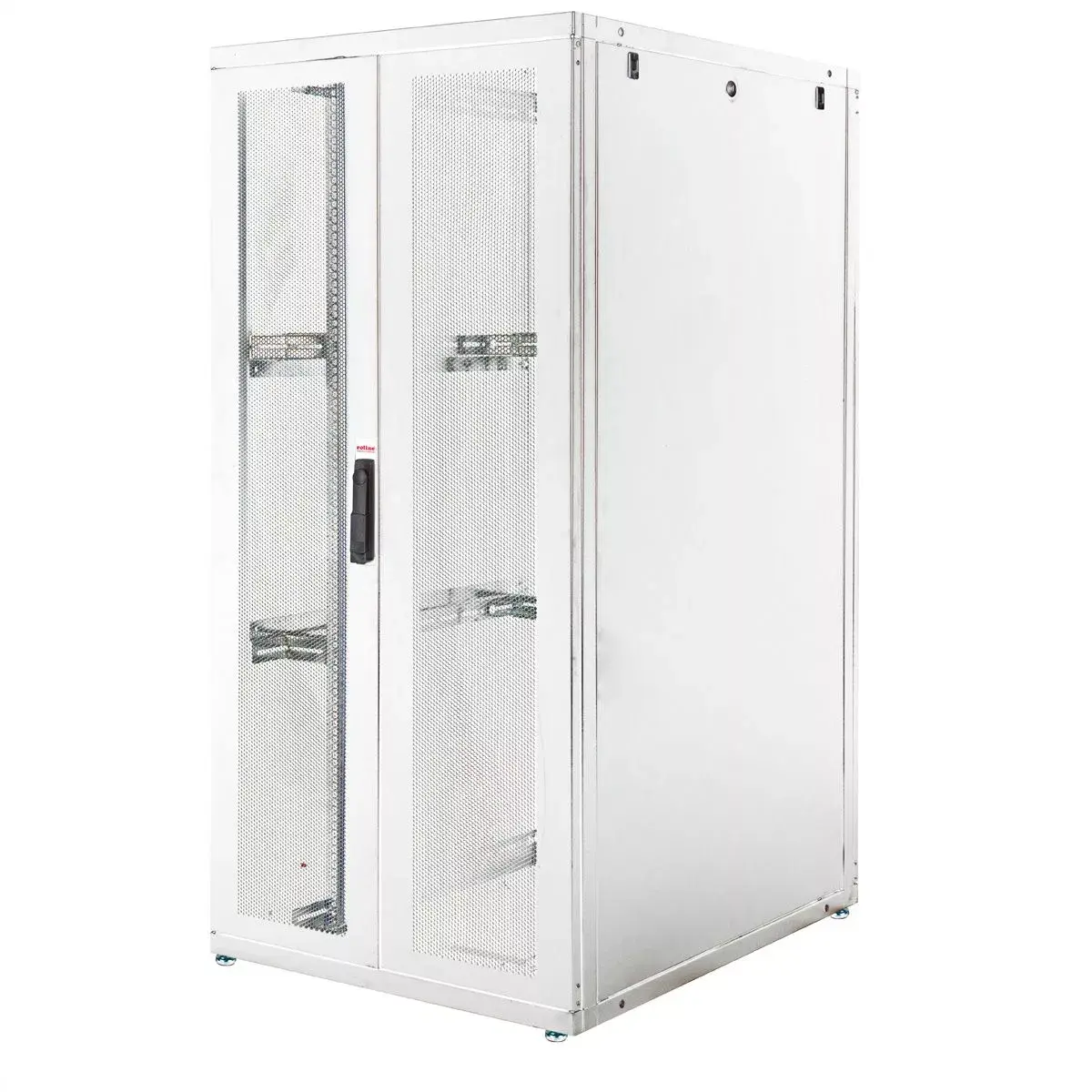

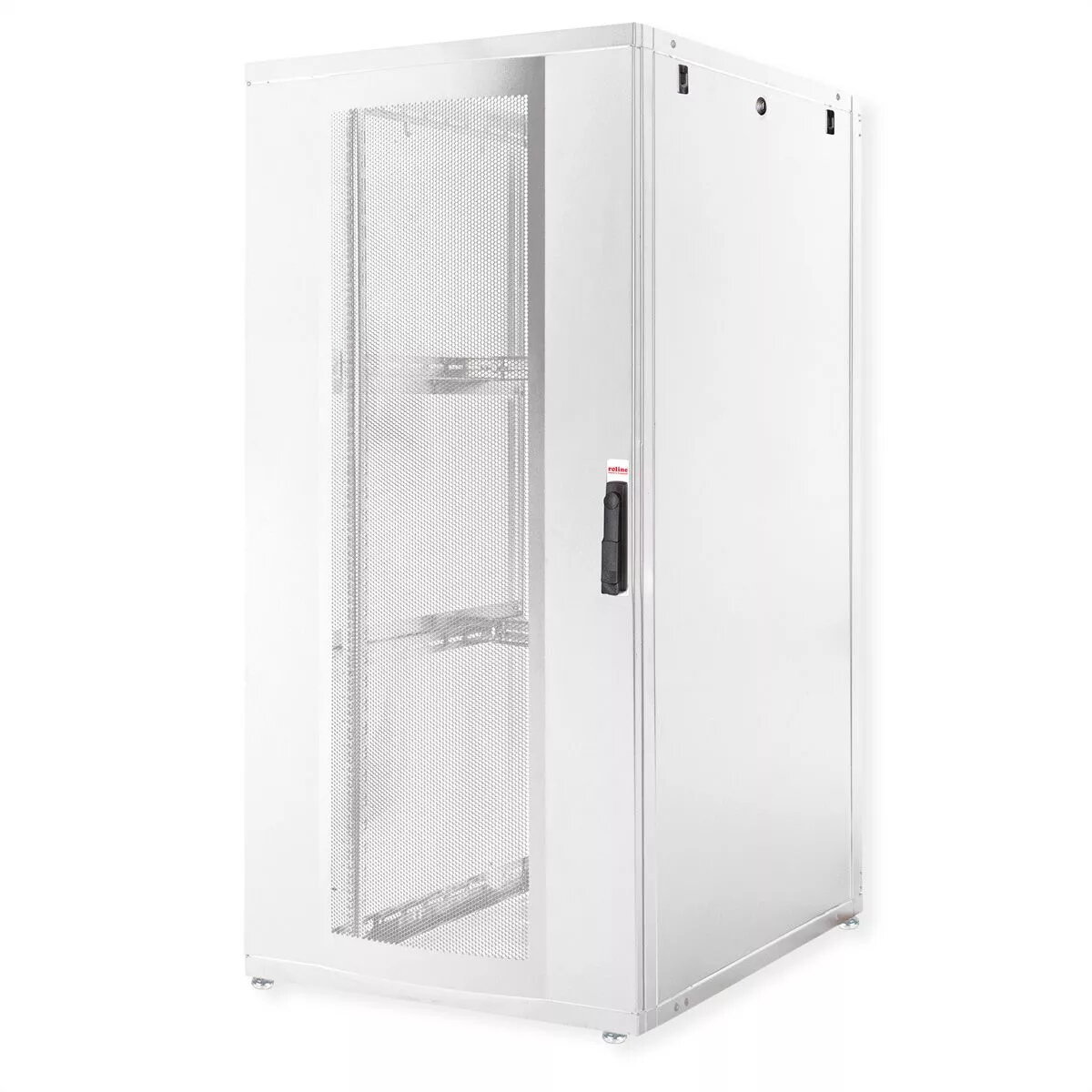

Freestanding rack ROLINE 19-inch server rack Pro 36 U 800x1000 grey

The ROLINE 19-inch server rack Pro 36U (800x1000, grey) is a freestanding enclosure designed for professional network and server installations. It provides 36U of mounting height, a robust steel construction with up to 2.0 mm material thickness and a load capacity suitable for heavy equipment. The unit includes adjustable 19" mounting rails, depth braces and a perforated roof for fan module installation, and is finished with an electrostatic powder coat in grey (RAL 7035).

Advantages

The cabinet offers flexible cable entry options including brush inlets, a slide-on inlet with foam rubber seal and an additional brush inlet in the base chassis (from 800 mm width). Perforated front and rear doors improve airflow, while dual-direction readable and depth-adjustable 19" profile rails simplify equipment mounting. Modular, lockable and removable side panels and interchangeable door hinges increase accessibility and serviceability. The construction can be dismantled for transport or reconfiguration.

Suitable for

• Server and network equipment installations in data closets and server rooms
• Rack-mounting of switches, routers, patch panels and storage devices
• Environments requiring controlled airflow and optional fan modules

Key specifications

• Mounting height: 36U
• External footprint (W x D): 800 x 1000 mm
• Construction material: steel, up to 2.0 mm thickness
• Finish: electrostatic powder coating, grey (RAL 7035)
• Maximum load capacity: up to 1000 kg
• Protection rating: IP20
• Weight: approximately 101 kg
• Internal features: two pairs of galvanised 19" profile rails, height-unit markings readable in both directions, depth-adjustable rails with depth braces
• Cable entry: side roof and base brush inlets, slide-on inlet with foam rubber seal; additional base brush inlet for widths from 800 mm
• Doors: perforated single-leaf front door and double-leaf rear door with swivel handle and profile half cylinder
• Roof: perforated cover suitable for fan module mounting

How to use

Position the freestanding rack on a level surface and adjust the feet to ensure stability. Install equipment on the 19" profile rails, adjusting their depth as required and using the readable U markings to align devices. Route cabling through the provided brush inlets or slide-on inlet with foam seal to maintain airflow and protect cables. If additional cooling is needed, mount compatible fan modules in the perforated roof. Lock removable side panels and doors when servicing is complete.

Usage recommendations

For optimal performance, distribute heavy equipment evenly across the vertical rack space and secure devices to the rails. Ensure adequate airflow by keeping perforated front and rear doors unobstructed and consider installing fan modules if ambient temperatures are high or equipment density is large.
