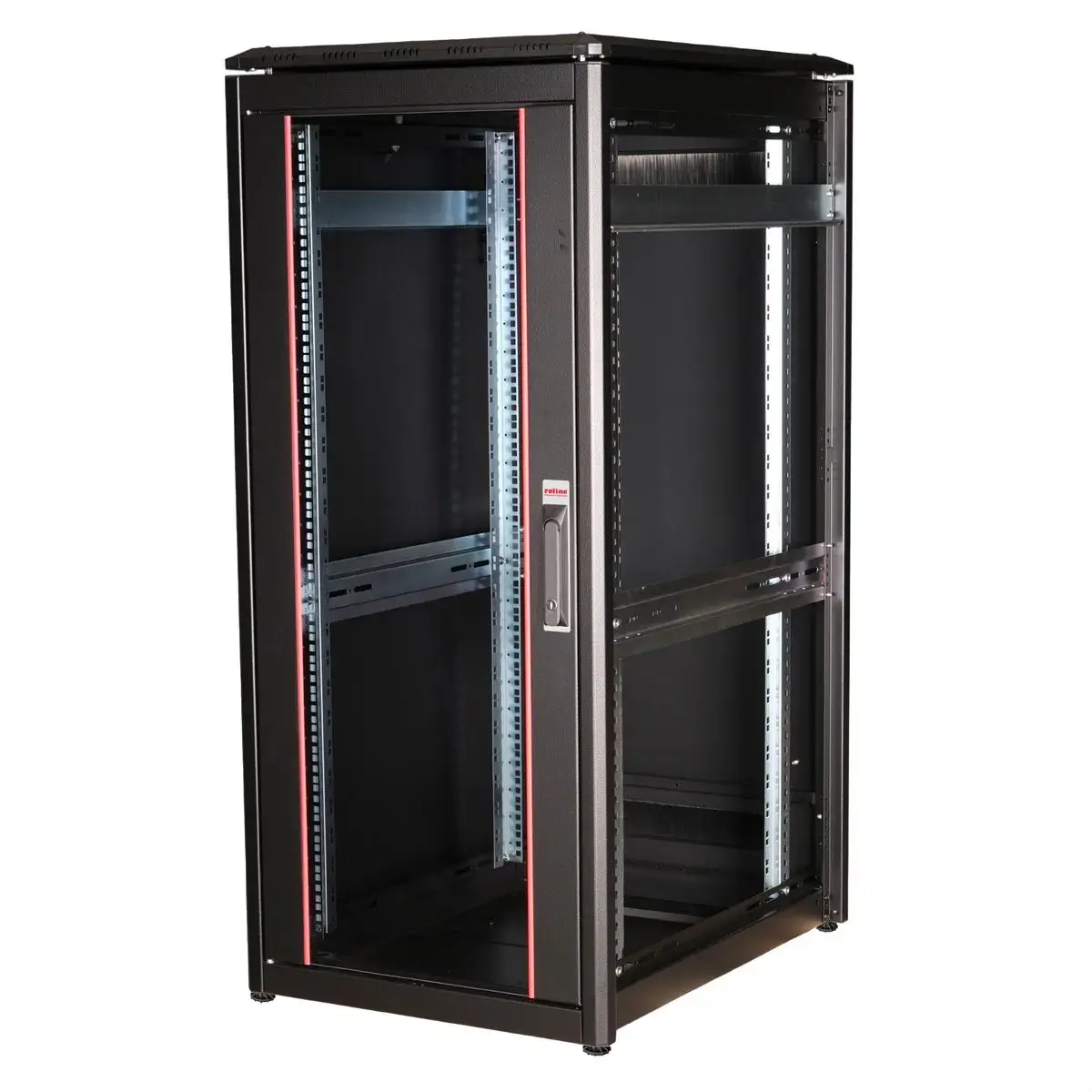

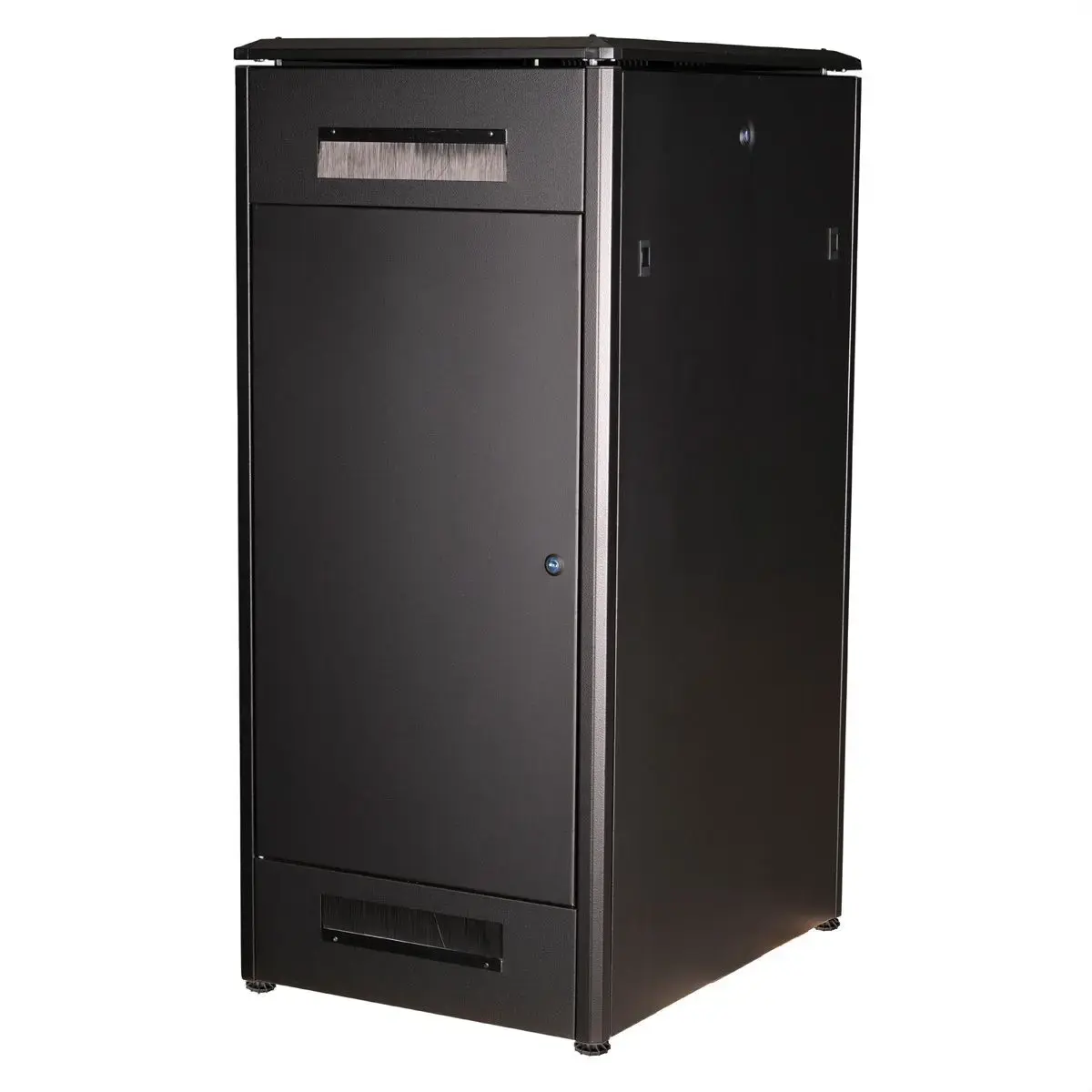

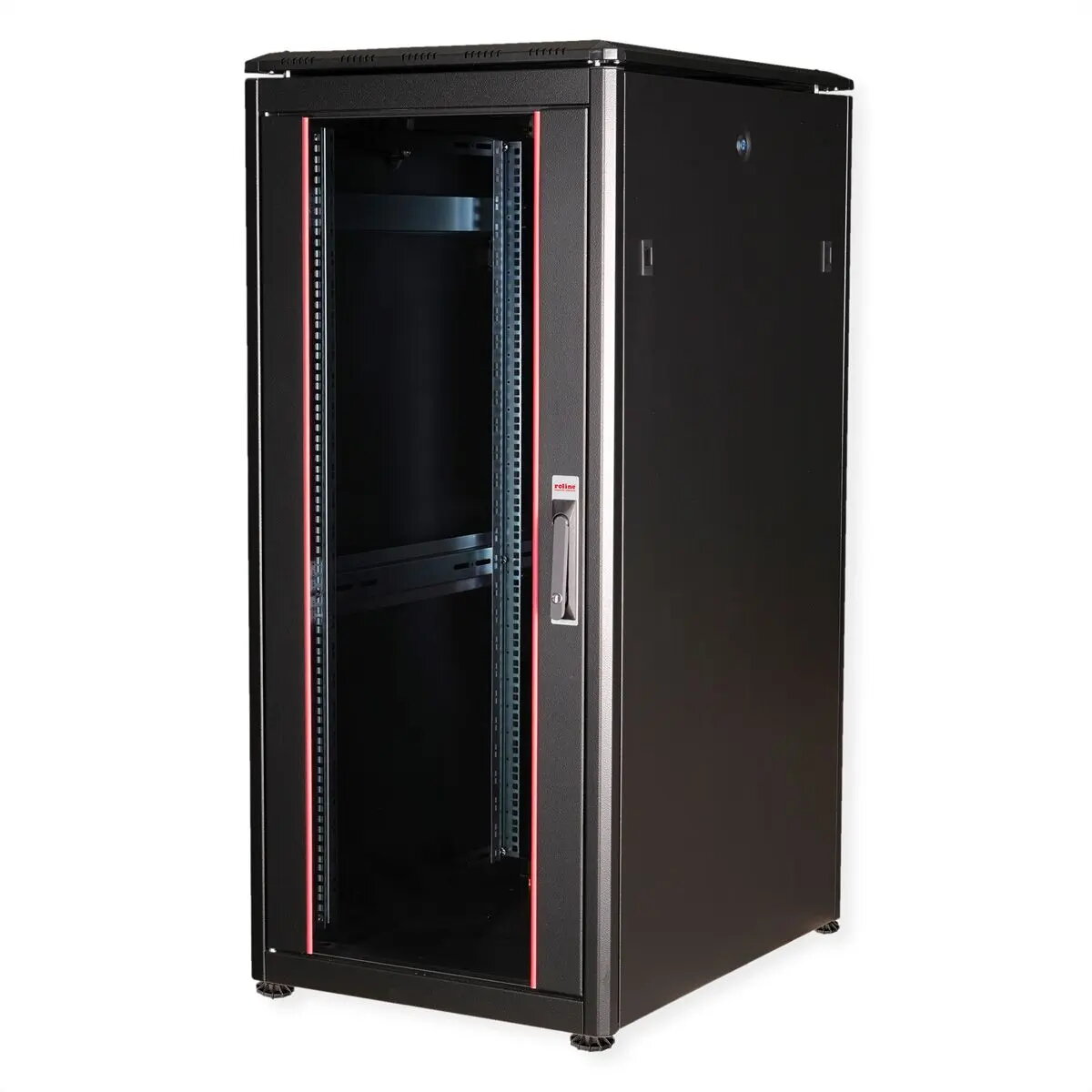

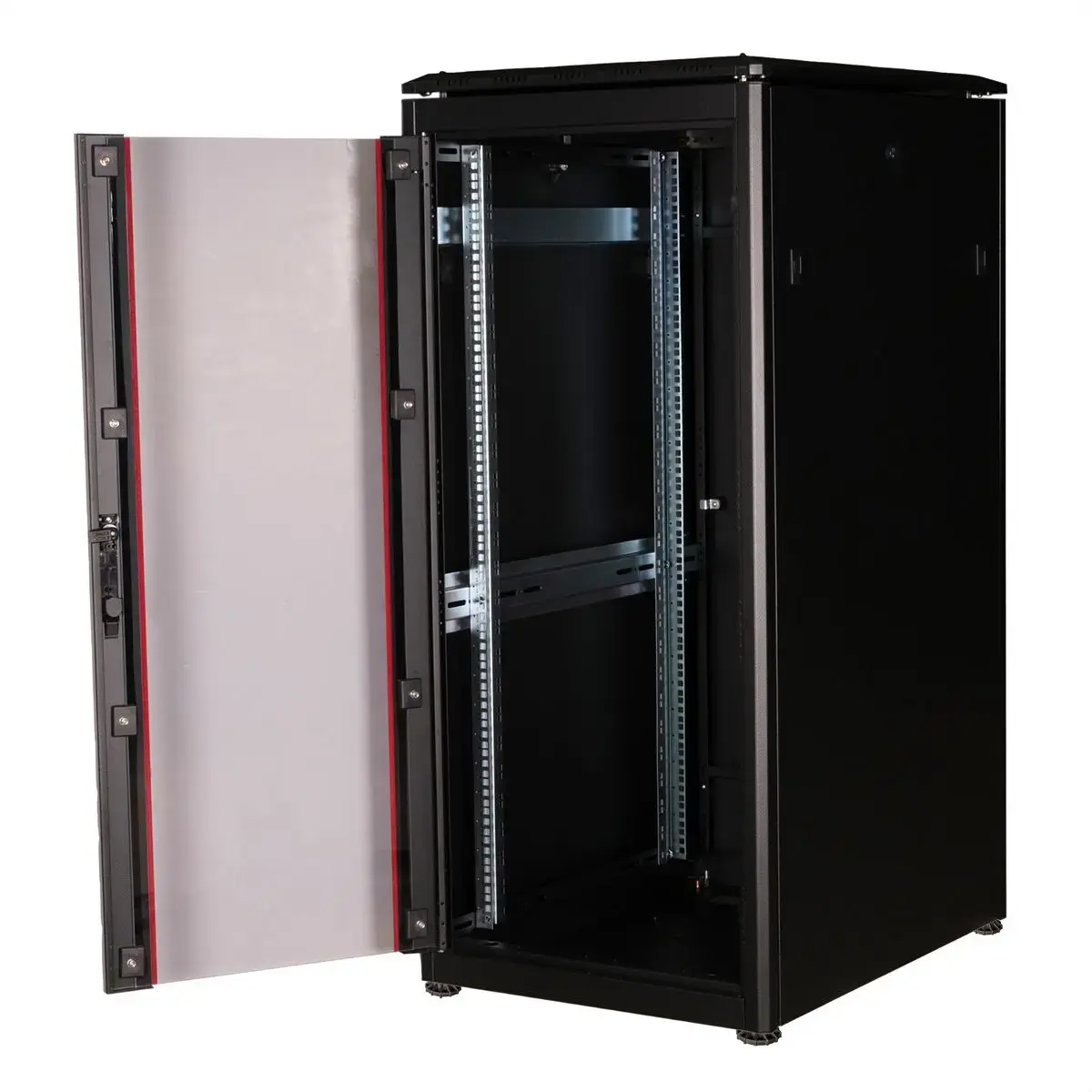

ROLINE 19-inch Network Cabinet Pro 26U, freestanding rack 26U, 600x800 mm, glass front door, IP20, black

ROLINE 19-inch Network Cabinet Pro 26U is a freestanding rack with a footprint of 600 x 800 mm and a glass front door, designed for mounting 19" equipment on adjustable rails. The cabinet supports up to 600 kg of distributed load and provides IP20 protection, adjustable feet and removable panels and doors for easy access. The robust steel construction and ventilation-ready top cover allow practical installation and maintenance in office server rooms, network closets and telecommunications environments.

Advantages

The cabinet offers flexible cable routing with brush inlets in the roof and base area, a slide-on inlet with foam rubber seal, brush strips around the rear door and optional vertical cable ducts next to the profile rails. Two pairs of galvanised 19" profile rails are depth-adjustable and reversible, while the stepped removable top cover with ventilation slots enables better air circulation and simple fan module installation. Side panels and doors are modular and removable, and door hinge position can be changed; the entire cabinet can be fully dismantled if required.

Suitable for

• Small to medium office server rooms and network closets
• Telecommunications equipment and patch panels
• Rack-mounted switches, routers and storage units
• Environments requiring secure front access with glass door and easy internal access

When it may not be suitable

This cabinet is intended for indoor use where IP20 protection is sufficient; it is not rated for outdoor or wet environments. Applications requiring higher ingress protection, specialised seismic mounting or very high cooling capacity may need a different enclosure solution.

Key specifications

• Rack height: 26U
• Footprint (W x D): 600 x 800 mm
• Maximum distributed load capacity: 600 kg
• Front door: glass
• Protection rating: IP20
• Material: steel (sheet thickness up to 1.5 mm)
• Colour: black (RAL 9005)
• Adjustable feet and removable side panels and doors
• Two pairs of galvanised, depth-adjustable and reversible 19" profile rails
• Top cover with ventilation slots and option to fit fan module

How to use

Place the freestanding cabinet on a level surface and adjust the feet to ensure stability. Install equipment on the 19" profile rails, adjusting their depth as needed and securing devices with appropriate rack screws. Route cabling through brush inlets, base inlets or vertical cable ducts to keep runs tidy and minimise interference. Use the removable side panels and doors for access during installation and maintenance; the top cover can be removed to add ventilation or fan modules. Follow standard safety and grounding procedures when connecting power and networking components.

What to consider before purchase

• Required rack height and whether 26U meets current and future equipment needs
• Footprint suitability for the intended room (600 x 800 mm)
• Load requirements to ensure 600 kg distributed capacity is sufficient
• Need for IP20 protection versus higher ingress protection levels
• Cooling and ventilation needs, and whether additional fans are required

Usage recommendations

For reliable operation, distribute equipment weight evenly across the profile rails, use proper cable management through the provided inlets and ducts, and install additional fans if thermal loads are high. Verify room clearance for the glass front door and ensure the cabinet is properly grounded.
