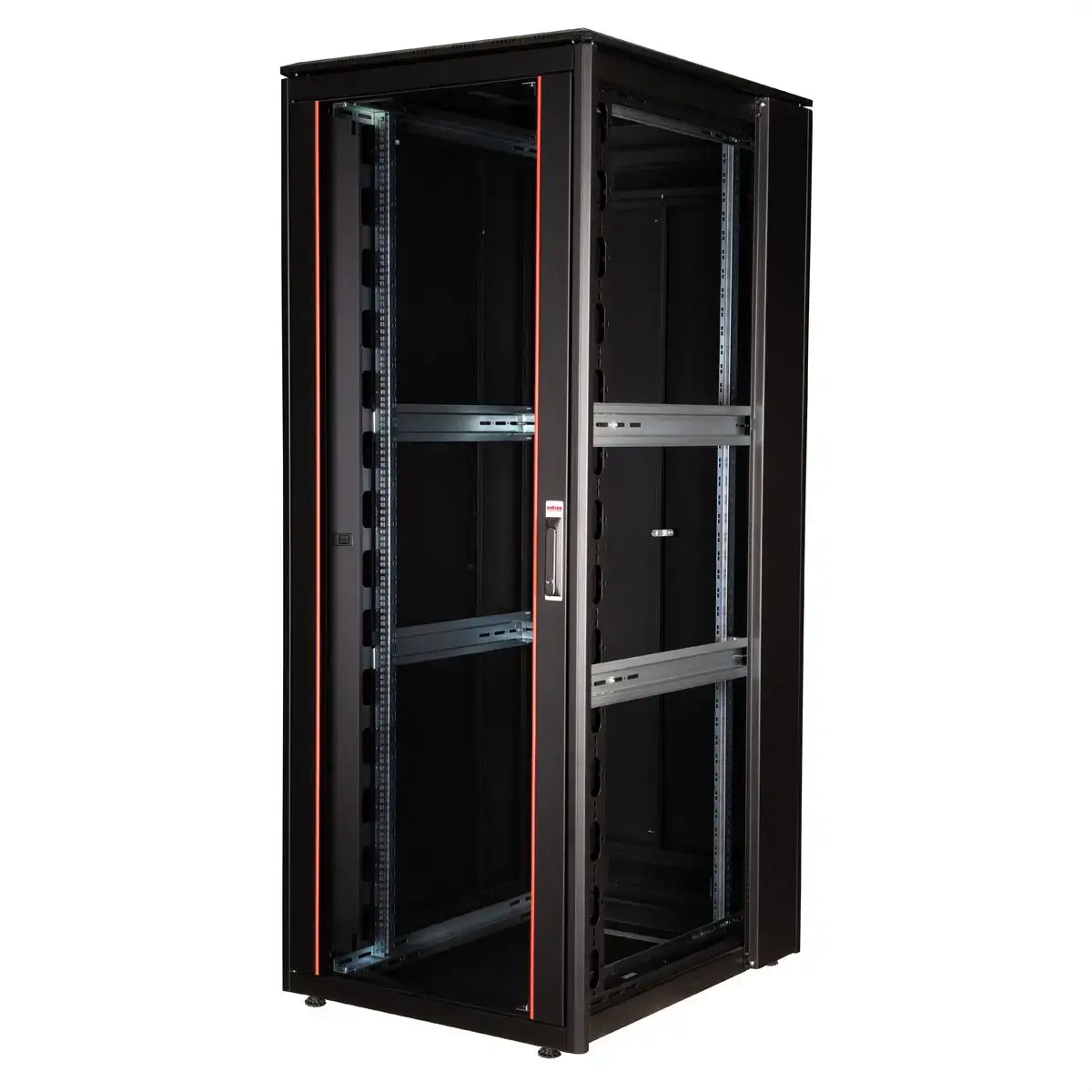

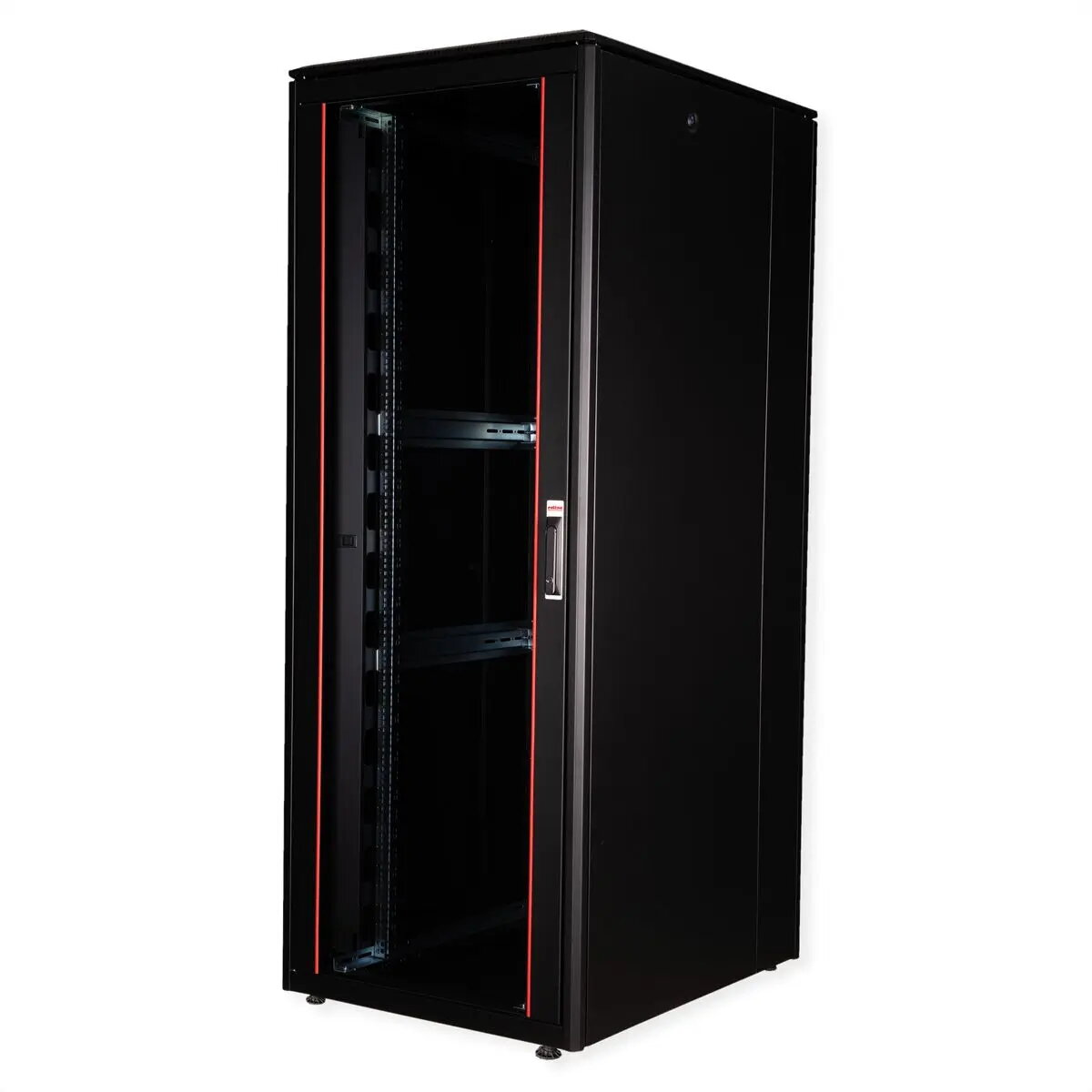

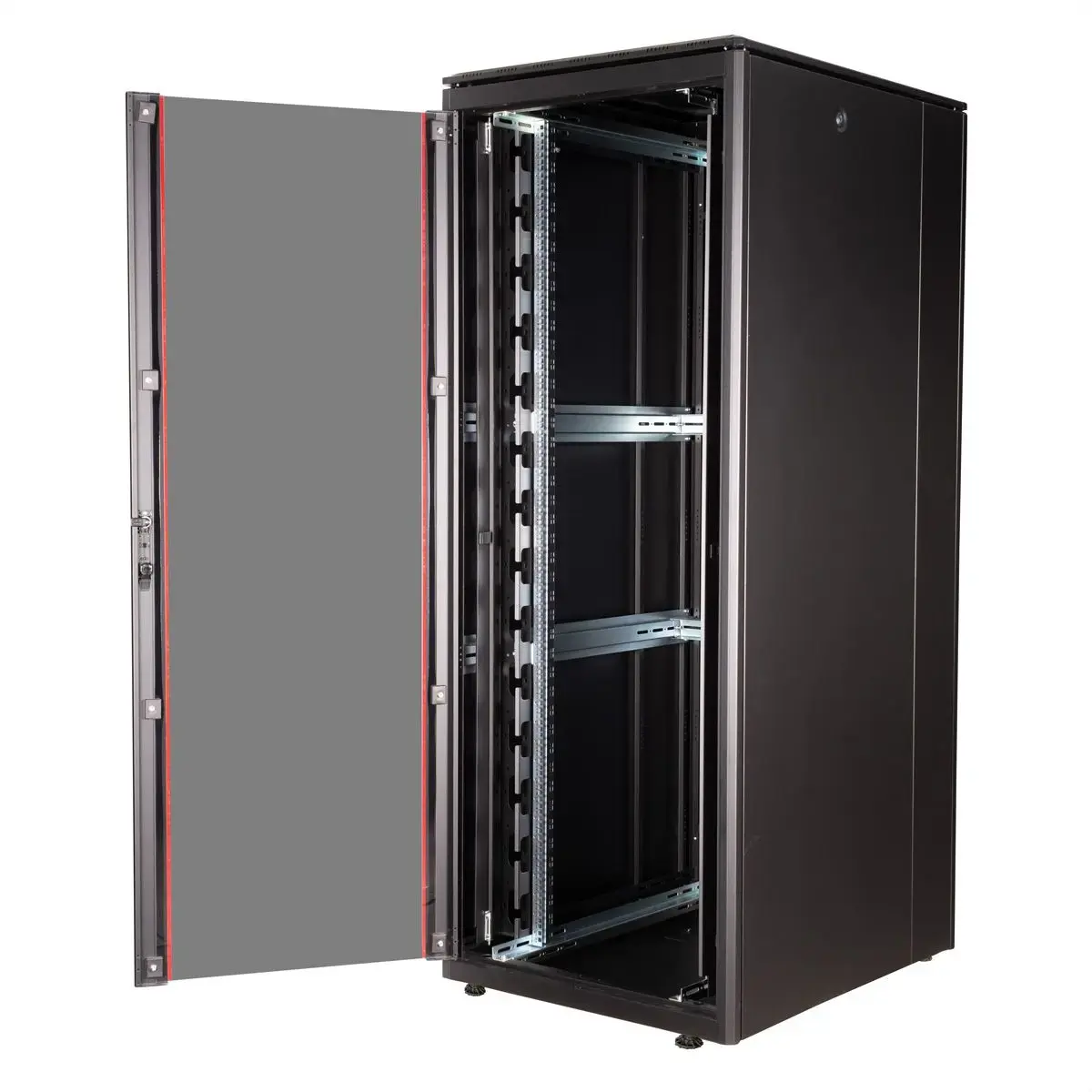

Network Cabinet ROLINE 19-inch Pro 42U, freestanding rack 800x1000 mm, glass door, black, 600 kg

ROLINE 19-inch Pro 42U network cabinet is a freestanding server rack with a 42U mounting height, outer dimensions of 800 x 1000 mm (W x D) and a black electrostatically powder-coated finish. The cabinet is built from robust steel sheet (up to 1.5 mm thickness) and provides IP20 protection. It includes a glass front door, removable side and rear panels, adjustable feet and built-in 19" mounting rails. The enclosure supports a maximum static load of 600 kg and has a total weight of approximately 130.6 kg. Design elements such as brush cable inlets in roof and base, vertical cable ducts and ventilation slots in a removable cover facilitate structured cabling and improved airflow.

Advantages

The ROLINE Pro 42U rack combines solid mechanical construction with features that simplify installation and cable management. Adjustable, depth‑adjustable and reversible 19" profile rails allow flexible mounting of network, server and telecom devices. Brush inlets, slide‑on base inlet with foam seal and vertical cable ducts reduce dust ingress and enable tidy cable routing. Removable panels and changeable hinges provide easy access for maintenance and reconfiguration while the powder-coated steel finish offers surface protection in standard black.

Suitable for

• Server rooms and data closets requiring a 42U freestanding rack
• Network and telecom equipment installations with structured cable management
• Racks demanding up to 600 kg of static load capacity
• Environments where front glass access and secure, lockable cabinets are needed

Key specifications

• Mounting height: 42U
• External dimensions (W x D): 800 x 1000 mm
• Construction material: steel sheet (up to 1.5 mm thickness)
• Finish: electrostatic powder coating, black (RAL 9005)
• Front door: glass
• Protection class: IP20
• Maximum static load capacity: 600 kg
• Built-in 19" profile rails: two pairs, depth-adjustable and reversible
• Cable management: brush inlets in roof and base, slide-on base inlet with foam rubber seal, vertical cable ducts with covers
• Ventilation: stepped removable cover with ventilation slots and option to install fan modules
• Access: removable side panels and rear door; hinge position can be changed
• Adjustability: adjustable feet and additional depth struts

How to use

Position the freestanding cabinet on a level surface and adjust the feet to ensure stability. Remove the front, rear or side panels as required to install equipment; the 19" profile rails are reversible and depth-adjustable to match device mounting requirements. Route power and data cabling through the roof or base brush inlets and secure cables within the vertical cable ducts. Use the stepped removable cover to improve airflow and to mount optional fan modules if additional cooling is needed. After equipment installation, reattach doors and panels and verify that the load is evenly distributed across rails and depth struts.

Usage recommendations

For safe and reliable operation, distribute equipment weight evenly across multiple rack units, ensure proper grounding of the cabinet, and maintain unobstructed airflow by keeping ventilation slots and fan modules clear of dust. When routing high-density cabling, use the provided brush inlets and vertical ducts to minimise strain on connectors and to preserve cable bend radii.
