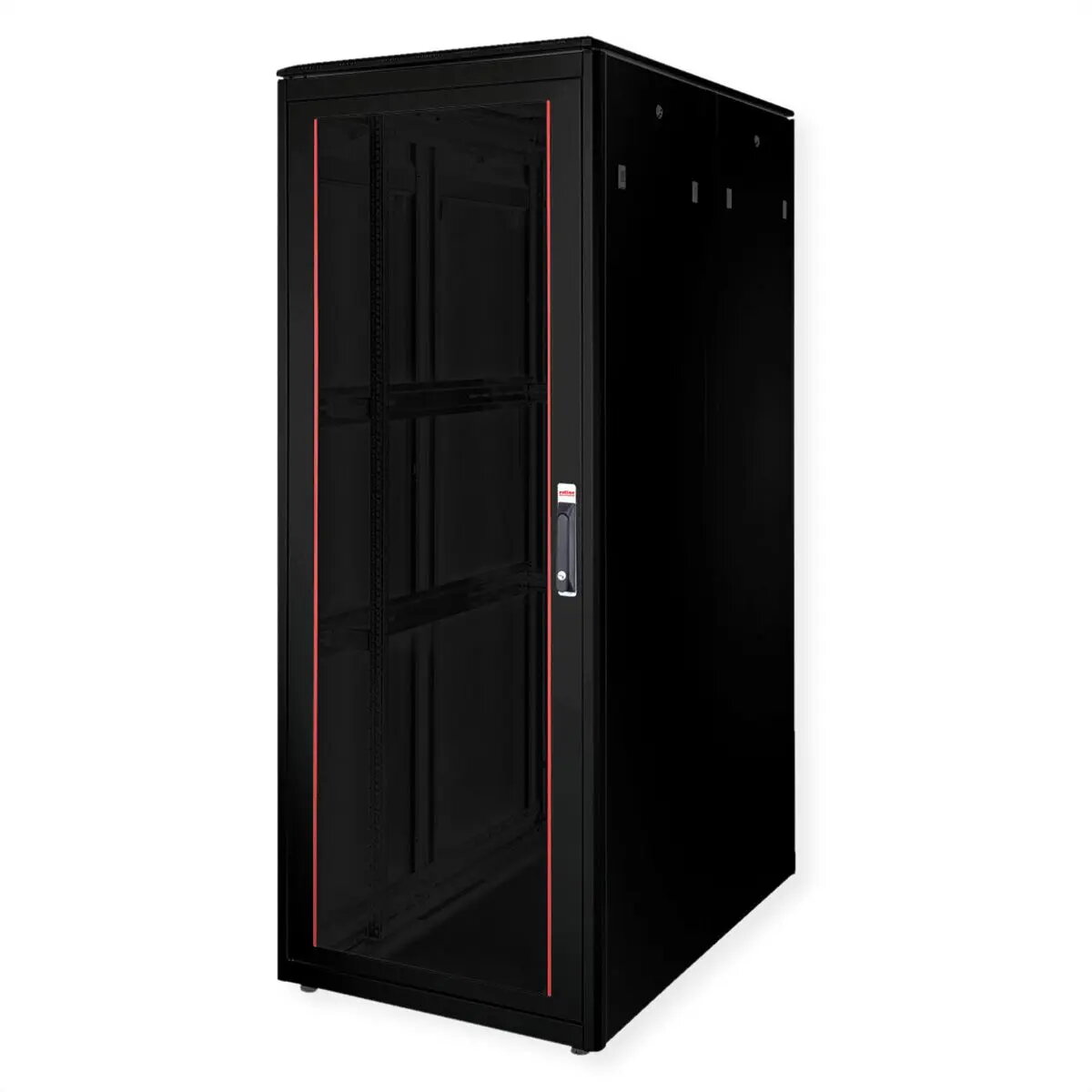

19-inch Network Cabinet ROLINE Pro 42U 800x1200 mm, freestanding rack, glass door, black

ROLINE 19-inch Network Cabinet Pro 42U 800x1200 mm is a freestanding server and network rack designed for 42U of 19" rack-mounted equipment. The cabinet has external dimensions of 800 x 1200 mm (W x D), a glass front door and a robust steel construction with sheet thickness up to 1.5 mm. It supports equipment loads up to 600 kg, provides IP20 protection and includes adjustable feet and depth-adjustable, reversible 19" profile rails. The enclosure is finished in electrostatic powder coating (black, RAL 9005) and features removable side panels and doors for improved accessibility.

Advantages

The Pro series design integrates brush inlets in roof and base areas and slide-on inlet elements with foam rubber seals to allow neat cable entry and reduce dust ingress. Vertical cable ducts with covers and brush strips at the rear door facilitate structured cable routing alongside the 19" profile rails. A stepped, removable top cover with ventilation slots supports passive airflow and enables installation of fan modules. The reversible and depth-adjustable rails plus additional depth struts give flexibility when mounting servers, switches and patch panels.

Suitable for

• Small and medium server rooms
• Network closets and IT cabinets
• Telecom installations and communications cabinets
• Equipment racks for switches, patch panels and 1U–4U servers

Key specifications

• Rack size: 42U 19" mounting space
• External dimensions (W x D): 800 x 1200 mm
• Load capacity: up to 600 kg
• Material: steel, sheet thickness up to 1.5 mm
• Protection rating: IP20
• Front door: glass
• Finish: electrostatic powder coating, black (RAL 9005)
• Rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable
• Cable management: brush inlets, slide-on inlet with foam seal, vertical cable ducts with covers
• Access: removable front and rear doors and removable side panels; changeable door hinge
• Additional features: stepped removable top cover with ventilation slots; prepared for fan module installation

How to use

Place the freestanding cabinet on a level surface and adjust the feet to ensure stability. Remove side panels or doors as needed to access the interior; the reversible rails allow orientation and depth adjustment to match mounted devices. Route network and power cabling through the brush inlets or the slide-on inlet in the base to maintain tidy cable runs and reduce dust entry. Install servers, switches and patch panels on the 19" rails, securing them according to the equipment manufacturer’s instructions and the rack mounting standard. Use the removable top cover and ventilation slots to install fan modules if active cooling is required.

Usage recommendations

For safe operation, distribute equipment weight evenly across the rails and avoid exceeding the 600 kg load limit. Ensure adequate airflow by maintaining free space in front of the glass door and using the ventilation provisions or adding fan modules when mounting heat-generating equipment. Use the cabinet’s cable management features to separate power and data cabling and to simplify maintenance. Follow local grounding and earthing practices when installing equipment.
