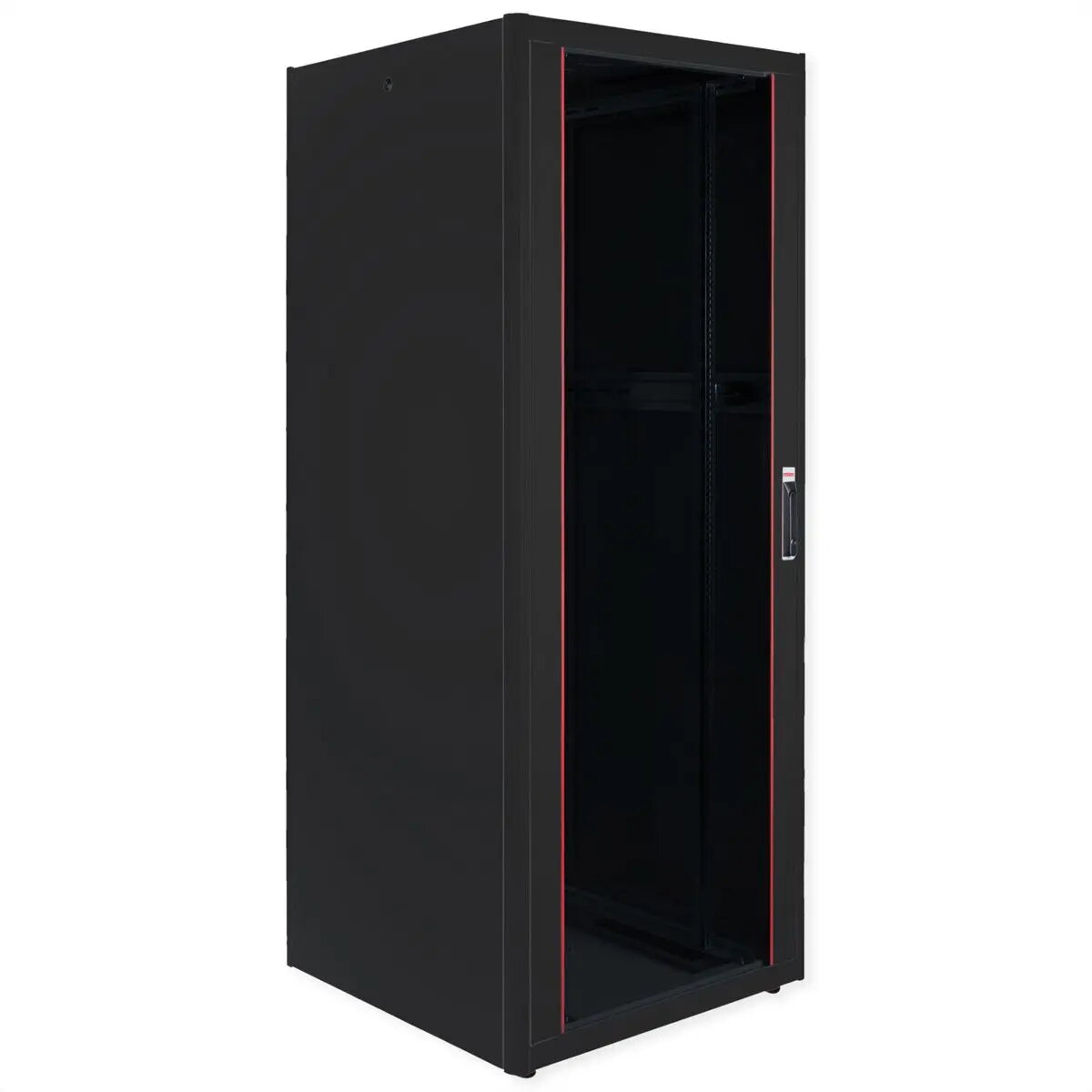

Network Cabinet ROLINE 19-inch Pro 42U, 800x800 mm, glass door, black, 600 kg

Freestanding 19-inch ROLINE Pro network cabinet with 42U rack capacity and external footprint of 800 × 800 mm (W × D). Constructed from robust sheet steel with up to 1.5 mm material thickness and finished in black (RAL 9005) by electrostatic powder coating. The cabinet includes a glass front door, removable rear door and side panels, adjustable depth and reversible 19" profile rails, and integrated features for flexible cable management and ventilation. Rated IP20, it supports a static load up to 600 kg and has a net weight of 108.1 kg, making it suitable for server rooms, communications closets and data centre installations.

Advantages

The ROLINE 42U Pro cabinet combines durable steel construction with modular accessibility: removable doors and side panels allow convenient access to installed equipment and cabling. Reversible and depth-adjustable 19" profile rails provide flexible mounting options for servers and network devices, while galvanised rails and additional depth struts ensure stable load distribution. Built-in brush inlets and a slide-on base inlet with foam seal, plus brush strips at the rear door, support organised cable entry and reduce dust ingress. The stepped removable top cover with ventilation slots facilitates air circulation and simplifies the installation of fan modules.

Suitable for

• Server rooms and data centres for mounting servers, storage and network appliances
• Telecommunications and comms closets in office buildings
• Network distribution and patching points for structured cabling
• IT racks in laboratory or production environments requiring IP20 protection

Key specifications

• Rack height: 42U
• External dimensions (W × D): 800 × 800 mm
• Construction material: steel sheet up to 1.5 mm thickness
• Finish: electrostatic powder coating, black (RAL 9005)
• Front door: glass
• Rear door and side panels: removable
• Internal rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable, connected to depth struts
• Cable entry: brush inlets in roof and base, slide-on inlet with foam rubber seal in base chassis, brush strips at rear door
• Ventilation: stepped removable top cover with ventilation slots, fan module mount compatible
• Load capacity: 600 kg (static)
• Protection rating: IP20
• Net weight: 108.1 kg

How to use

Place the freestanding cabinet on a level surface and adjust the feet to ensure stable seating. Remove the front glass door, rear door or side panels as required to gain access for mounting equipment. Install servers, switches and patch panels on the 19" profile rails, adjusting their depth to match device dimensions. Route cables through the roof or base brush inlets and through the vertical cable ducts beside the profile rails where provided; use the slide-on inlet and foam seal for tidy base entry. Fit fan modules into the top cover area if active ventilation is required and close removable panels after cabling and mounting are completed.

Usage recommendations

Distribute heavy equipment evenly across the rack and secure devices to multiple depth struts when possible to maintain stability and avoid point loading. Maintain clear airflow paths by organising cabling and using the ventilation slots and optional fans for enhanced heat dissipation. For safe handling during installation or relocation, disassemble panels as intended and follow local installation and grounding practices for IT enclosures.
