ROLINE 19-inch Network Cabinet Pro 47U, freestanding rack 600x800 mm, glass door, IP20, 600 kg load

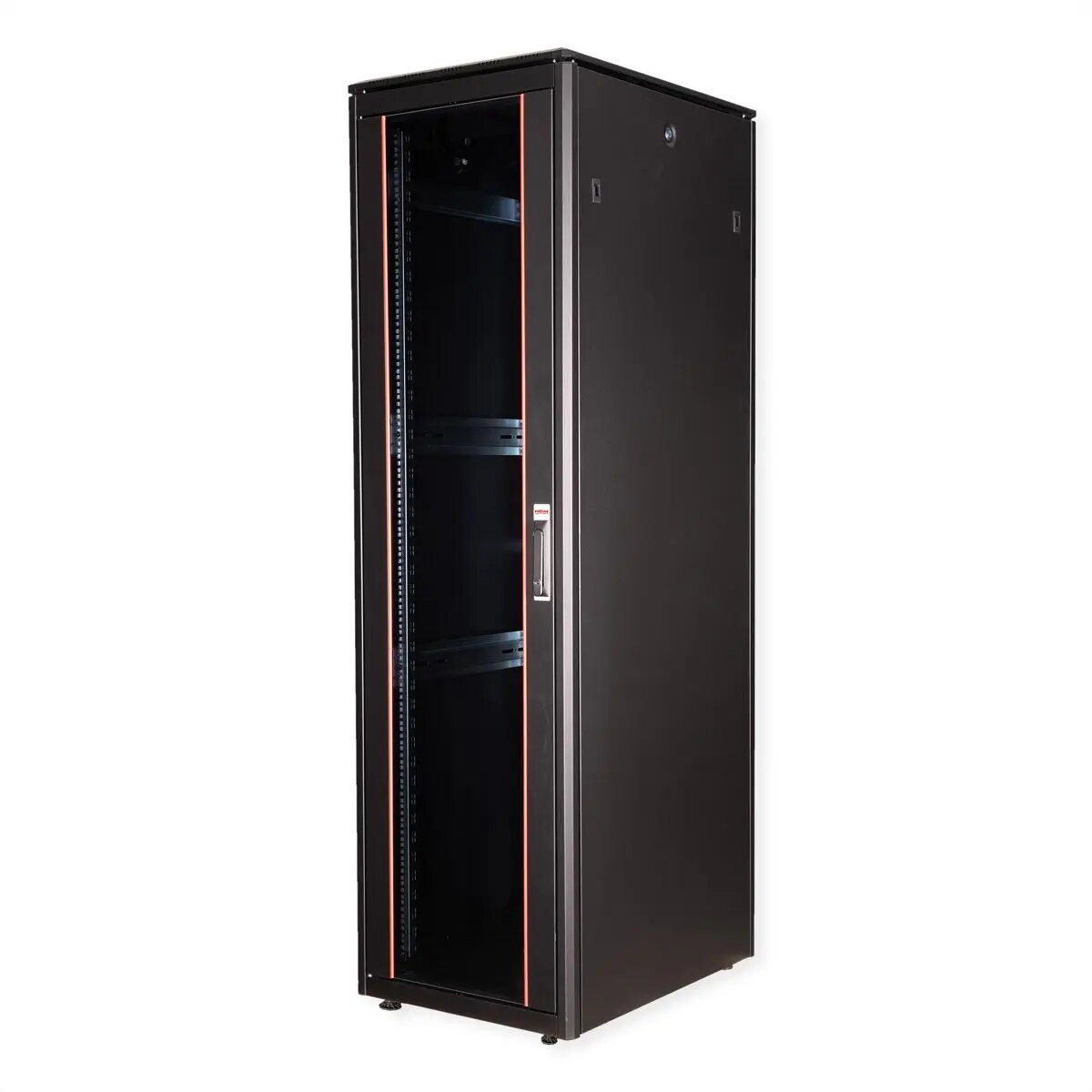

ROLINE 19-inch Network Cabinet Pro 47U is a freestanding rack with external dimensions 600×800 mm (W×D) and a rated load capacity of 600 kg. The enclosure provides IP20 protection and includes a tempered glass front door, two pairs of galvanised adjustable 19" profile rails, removable side panels and doors, and a stepped removable top cover with ventilation slots for improved airflow and fan-module installation. Constructed from robust sheet steel up to 1.5 mm thick and finished with electrostatic powder coating (available in grey RAL 7035 or black RAL 9005), this cabinet is designed for server, network and telecom equipment installation in data rooms and wiring closets.

Advantages

The cabinet combines high load capacity with a compact footprint (600×800 mm), offering stable support for heavy equipment while minimising floor space. Adjustable depth rails and reversible, depth-adjustable 19" profile rails enable flexible mounting of devices. Cable management features include brush inlets in roof and base areas, a slide-on base inlet with foam rubber seal, brush strips around the rear door and optional vertical cable ducts alongside the rails. Modular removable panels and doors allow easy access and serviceability. The tempered glass front door provides visual access to equipment while maintaining physical protection.

Suitable for

• Small and medium enterprise server rooms and network closets
• Telecommunications cabinets and patch panel installations
• Equipment racks for switches, routers, UPS units and rack servers
• Structured cabling environments requiring organised cable entry and vertical routing

Key specifications

• Form factor: 19-inch freestanding rack, 47U usable height
• External dimensions (W×D): 600×800 mm
• Rated load capacity: 600 kg
• Protection class: IP20
• Front door: tempered glass
• Construction: sheet steel up to 1.5 mm thick with electrostatic powder coating
• Internal rails: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Cable management: brush inlets (roof and base), slide-on base inlet with foam seal, brush strips on rear door, optional vertical cable ducts
• Ventilation: stepped removable top cover with ventilation slots, compatible with fan module installation
• Accessibility: removable front and rear doors and modular side panels; hinge exchangeable
• Weight: 92.9 kg

How to use

Position the cabinet on a level surface and adjust the feet to achieve stable levelling. Install equipment on the 19" profile rails, adjusting rail depth as needed and securing devices with appropriate rack screws. Use the brush inlets and slide-on base inlet to route power and network cabling into the cabinet while maintaining protection against dust ingress. Fit the removable top cover or install fan modules in the ventilation slots to support active airflow. For maintenance, remove side panels or open the glass front and rear doors to access mounted devices and cabling.

Usage recommendations

Distribute weight evenly across the rack units and secure heavy devices at lower positions to maintain stability. Use the built-in cable management features to separate power and data cabling and to reduce airflow obstructions. When deploying in environments with higher dust or particulate levels, consider sealing unused openings and using additional filtration for intake fans. Follow manufacturer guidance for earthing and for tightening of mounting hardware.
