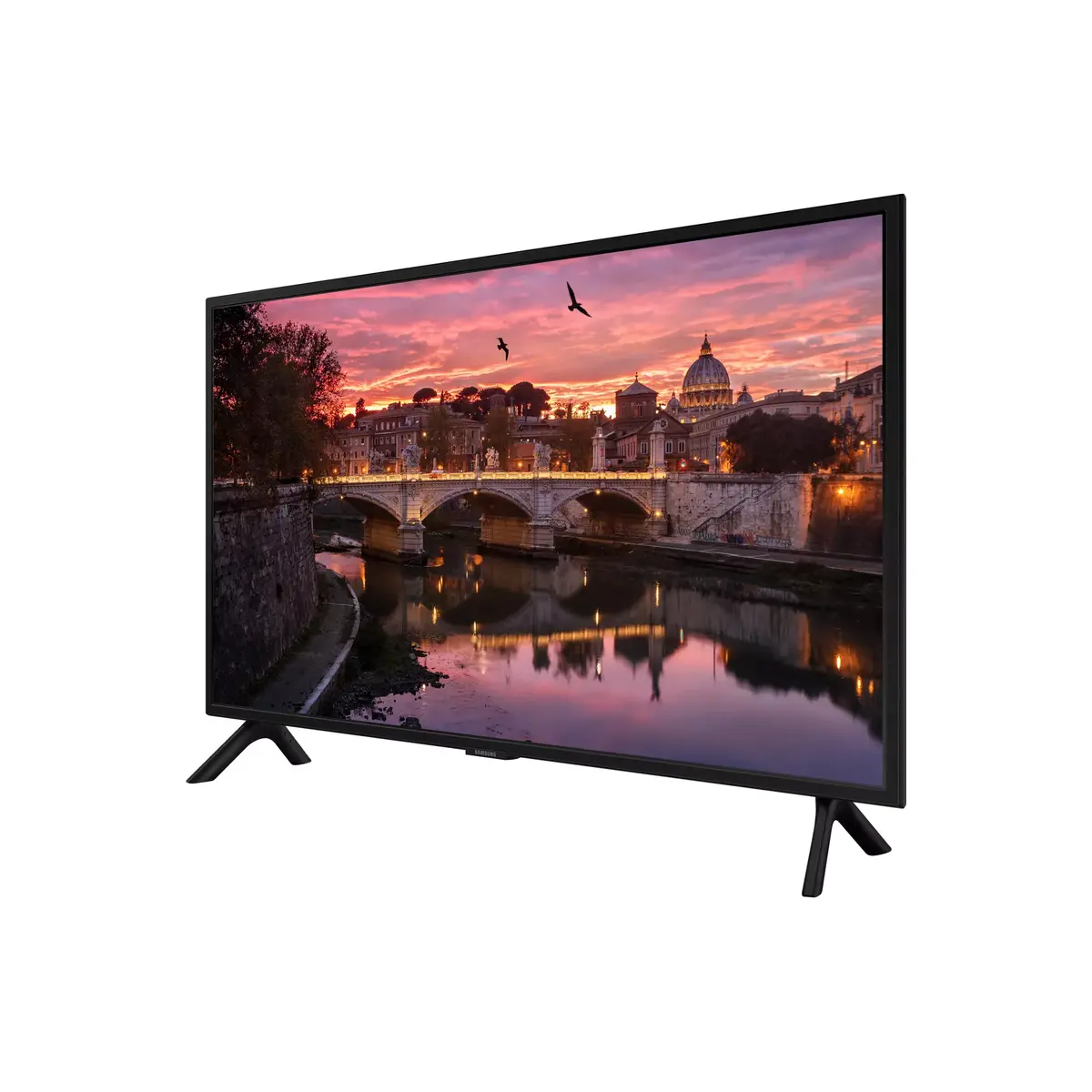

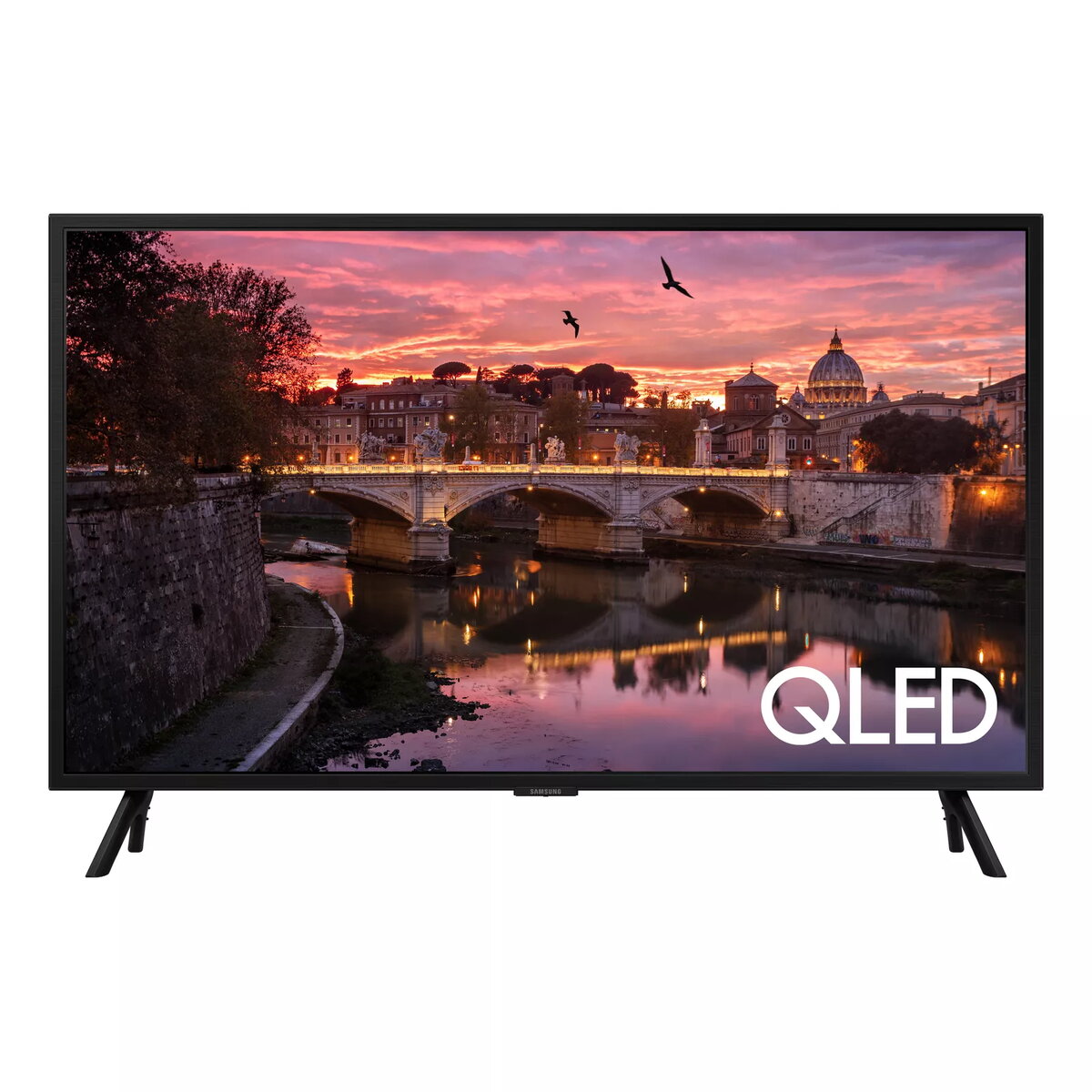

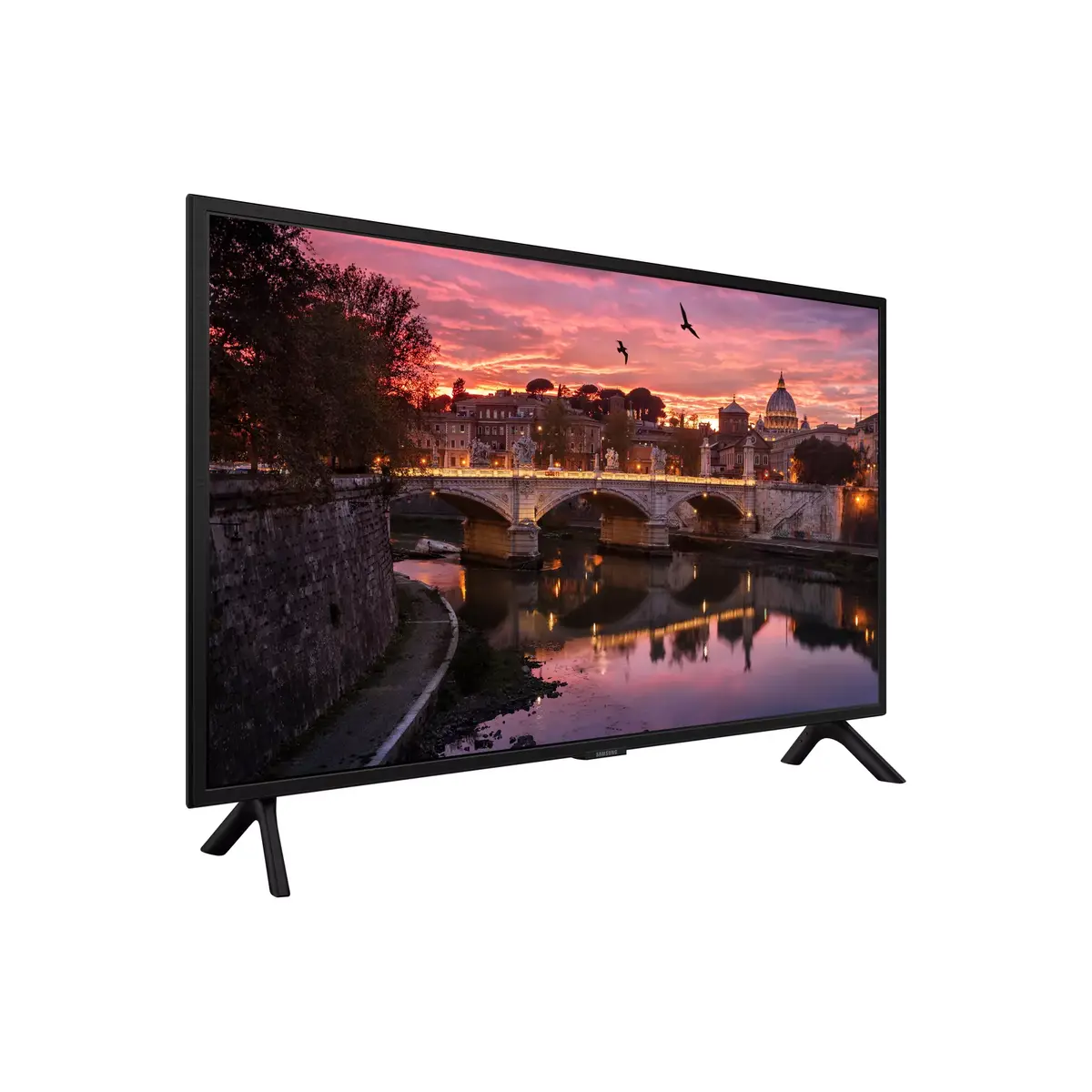

Television Samsung HJ690F 32" Full HD Hybrid Log-Gamma 1920 x 1080

Alarm clock:

Yes

Caption (subtitle):

Yes

Hotel channel list:

Yes

Other features

Security mode:

Yes

My Channel function:

Yes

Logo display with time-out setting (BMP/movie):

Yes

Power on mode:

Yes

Digital Living Network Alliance (DLNA) certified:

Yes

Auto source mode:

Yes

LYNK REACH version:

4.0

Content management solution:

Samsung LYNK REACH

H.Browser compatibility:

Yes

RJ-12 ports quantity:

1

Packaging content

Remote control included: Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Yes

Cables included:

AC

Batteries included:

Yes

Desktop stand:

Yes

Packaging data

Package height: The distance from the top to the bottom of the packaging.

530 mm

Package depth: The distance from the front to the back of the packaging.

120 mm

Package width: The distance from one side of the packaging to the other.

811 mm

Package weight: Weight of the packaged product.

7100 g

Quick installation guide:

Yes

Weight & dimensions

Width (with stand):

723.3 mm

Height (with stand):

477.7 mm

Depth (with stand):

154.2 mm

Weight (with stand):

5400 g

Weight (without stand):

5300 g

Height (without stand):

425.6 mm

Depth (without stand):

30.3 mm

Width (without stand):

723.3 mm

Technical details

Picture-in-Picture: Picture-in-picture (PiP) is a feature of some television receivers and similar devices. One program (channel) is displayed on the full TV screen at the same time as one or more other programs are displayed in inset windows. Sound is usually from the main program only.

No

Remote control type:

TM1240A

Ergonomics

Multi-code remote control:

Yes

Power

Energy saving mode: Device has energy saving operating mode.

Yes

AC input frequency:

50/60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

220-240

Power consumption (max): The maximum amount of power used by the device.

80 W

Energy consumption (HDR) per 1000 hours: Power consumption in switched-on state expressed in W.

45 kWh

Energy consumption (SDR) per 1000 hours: Power consumption in switched-on state expressed in W.

27 kWh

Energy efficiency scale: Range of energy efficiency levels classifying devices from most to least energy-efficient.

A to G

Power consumption (standby): The amount of electricity that is consumed when the product is on standby.

0.5 W

Energy efficiency class (HDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

G

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

27.4 W

Energy efficiency class (SDR): Energy efficiency class is a standard classification that is used all over Europe and which is understandable at first sight. Products can be efficiently compared according to classes, starting from A (the most energy efficient class), and ending with G (the most energy-intensive class). The classification of energy efficiency is based on annual energy consumption which is being calculated on the basis of several different parameters.

F

Management features

Sleep timer:

Yes

On Screen Display (OSD):

Yes

Electronic Programme Guide (EPG): An Electronic Programme Guide (EPG) allows device users to navigate scheduling information menus interactively, selecting and discovering programming by time, title, station, or genre using an input device such as a keypad, computer keyboard, or TV remote control. Its interactive menus are generated entirely within local receiving or display equipment using raw scheduling data sent by individual broadcast stations or centralized scheduling information providers. A typical IPG provides information covering the next 7 or 14 days.

Yes

Auto power off: The device switches itself off automatically after a certain activity, or after a certain time of inactivity.

Yes

Smoovie compatibility:

Yes

Hotel mode:

Yes

Number of OSD languages:

27

Performance

Hospitality Plug and Play:

Yes

ConnectShare (USB):

Yes

ConnectShare (HDD):

Yes

USB cloning:

Yes

Clock back up supply:

Yes

Picture processing technology:

Quantum Processor Lite, Samsung Auto Motion Plus, Samsung Contrast Enhancer

Eco sensor:

Yes

Design

Bezel type:

VNB (Very Narrow Bezel)

Audio

Audio decoders: Device or software capable of decoding a digital stream of audio e.g. internet radio.

Dolby Digital Plus

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

20 W

Number of speakers: The quantity of speakers included in/with the product.

2

Features

Teletext function: The TV has Teletext, which is a means of sending text and diagrams to a properly equipped television screen by use of one of the vertical blanking interval lines that together form the dark band dividing pictures horizontally on the television screen. It offers a range of text-based information, typically including news, weather and TV schedules. Subtitle (or closed captioning) information is also transmitted within the television signal (usually accessed by pressing 888 on the remote control.

Yes

Subtitles function:

Yes

High Dynamic Range (HDR) supported:

Yes

High Dynamic Range (HDR) technology:

Hybrid Log-Gamma (HLG)

Panel mounting interface: The product can be used wih VESA mounting interfaces.

100 x 100

VESA mounting:

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

TV tuner

Auto channel search:

Yes

Digital signal format system: The protocols supported for exchange of digital signal.

DVB-C, DVB-S2, DVB-T2

Tuner type: The type of radio tuner e.g. analog, digital.

Analog & digital

Smart TV

Welcome message:

Yes

Hospitality home menu:

Yes

Smart TV: Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.

Yes

Hybrid Broadcast Broadband TV (HbbTV) version:

2.0.1

Hybrid Broadcast Broadband TV (HbbTV):

Yes

Network

HID support:

Yes

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 4 (802.11n)

Bluetooth: Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

No

Wi-Fi: Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Yes

Ethernet LAN: An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Yes

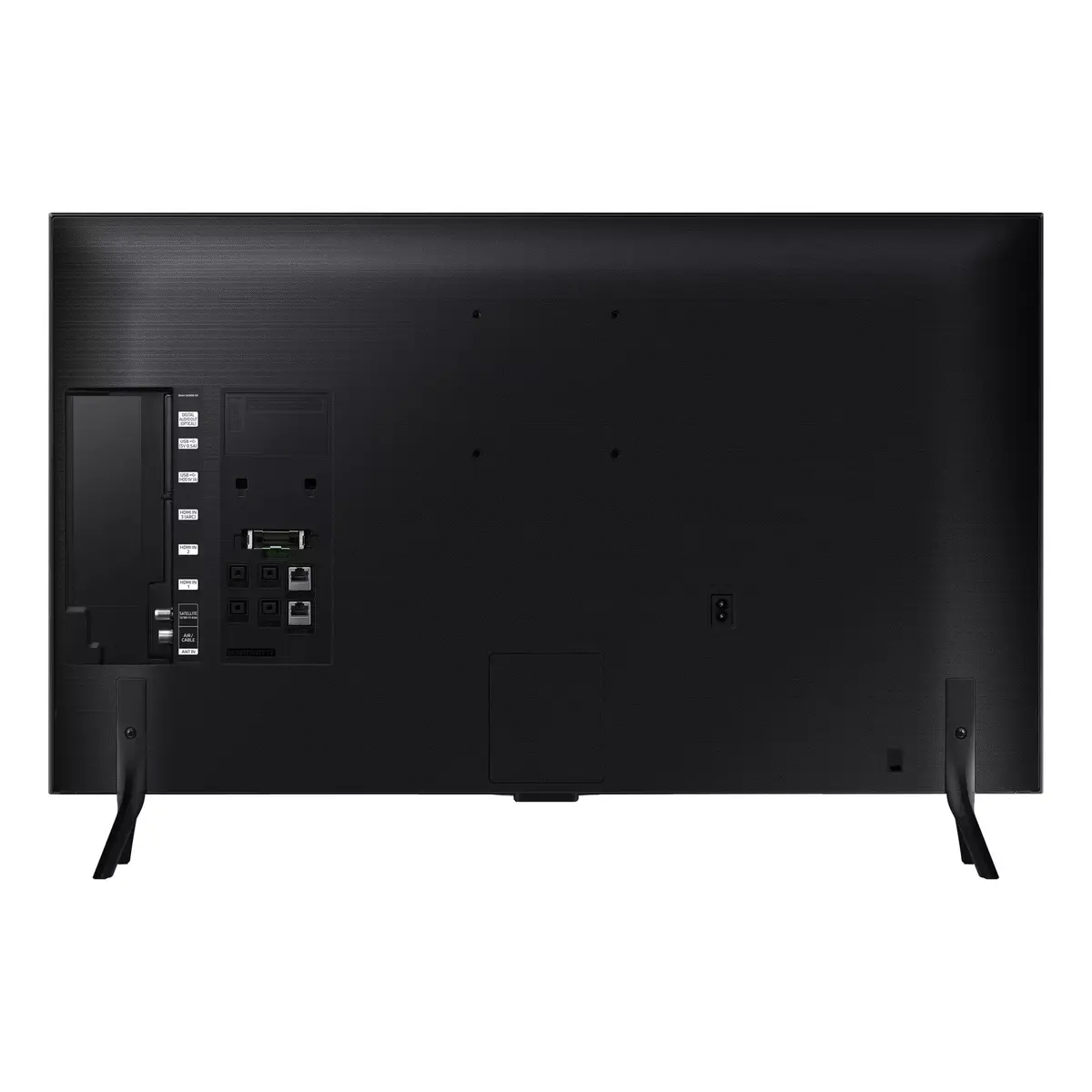

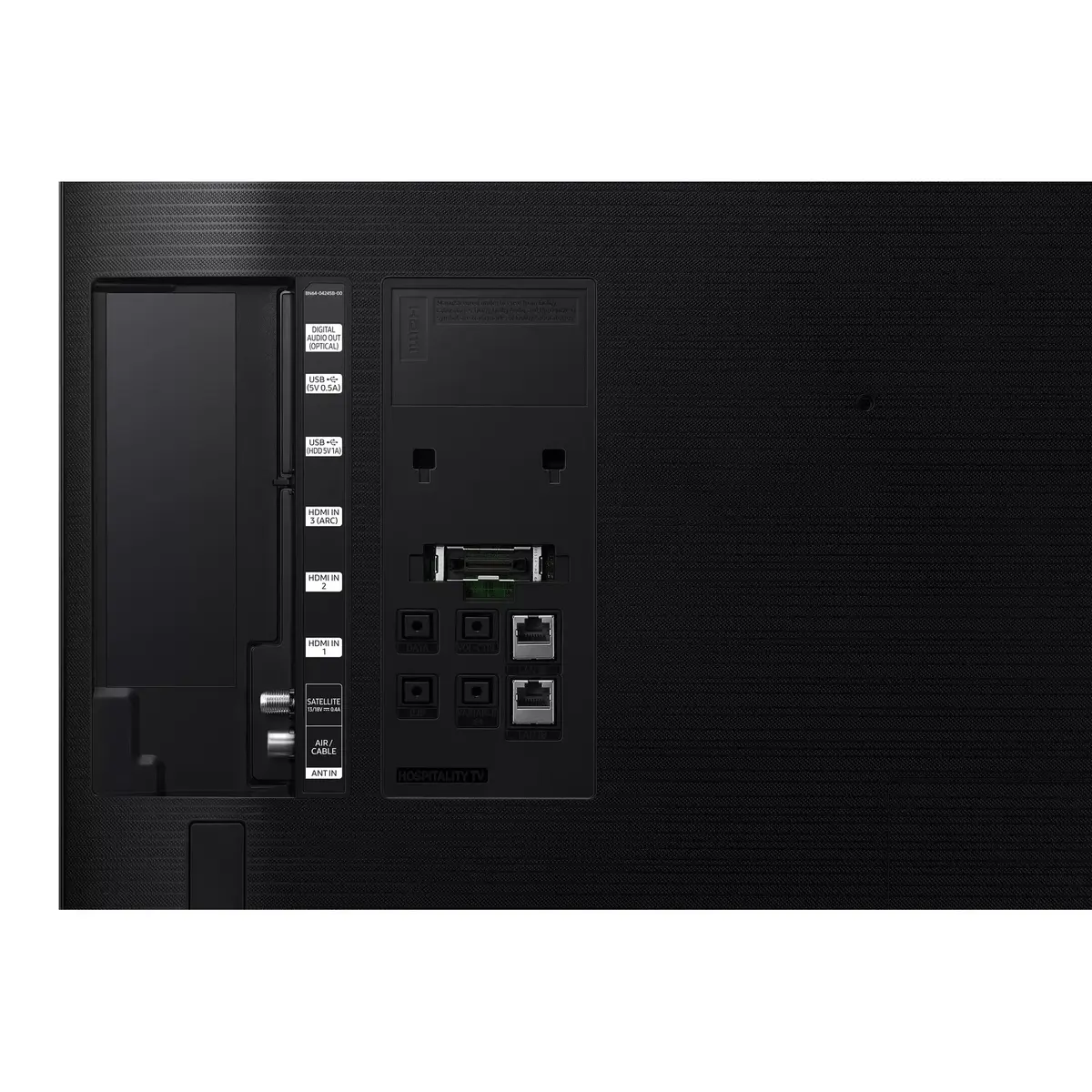

Ports & interfaces

Composite video in: The socket (port) for the composite video input (white cable).

0

RF ports quantity: The number of sockets (ports) for RF (radio frequency) connections.

3

Consumer Electronics Control (CEC):

Anynet+

HDMI ports quantity: The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

3

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2

Common interface Plus (CI+) version:

1.4

Common interface Plus (CI+): In Digital Video Broadcasting, the Common Interface (CI) is a technology which allows separation of conditional access functionality from a digital TV receiver-decoder (Host) into a removable conditional access module (CAM). CI+ or Common Interface Plus implements a form of copy protection between a Conditional Access Module (CAM) and the television receiver (Host). CI+ is backward compatible with CIv1. Old television receivers, which have CIv1 CI-slot, can be used with CI+ CAM and vice versa, but for viewing only those of TV programs which are not marked as CI+ protected.

Yes

Common interface (CI): Technology which allows separation of conditional access functionality from a digital TV receiver-decoder (Host) into a removable conditional access module (CAM). It is also referenced as DVB-CI for Digital Video Broadcast - Common Interface. The host is responsible for tuning to pay TV channels and demodulation of the RF signal, while CAM is responsible for CA descrambling. The Common Interface allows them to communicate with each other.

Yes

Digital audio optical out: The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector.

1

Component video (YPbPr/YCbCr) in: The number of sockets (ports) for RF (radio frequency) connections into the product.

0

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Audio Return Channel (ARC):

Yes

Display

Display diagonal (metric): This is the size of the display screen, measured diagonally.

80 cm

Viewing angle, horizontal: Maximum horizontal angle at which a display can be viewed with acceptable visual performance.

178 °

Viewing angle, vertical: Maximum vertical angle at which a display can be viewed with acceptable visual performance.

178 °

Dynamic contrast ratio marketing name:

Mega Contrast

Motion interpolation technology: Describes which motion interpolation technology device uses e.g. BLS (Back Light Scanning), PPR (Picture Perfection Rate), PMR (Perfect Motion Rate), TruMotion.

PQI (Picture Quality Index) 2100

Screen shape:

Flat

Native aspect ratio: The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

16:9

HD type: Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD

Display resolution: The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

1920 x 1080

Display technology: The technology used in the display e.g. plasma, LED.

QLED

Display diagonal: Size of the display for this product, measured diagonally, usually in inches.

32 "
