Short description

The Satel ACX-220 is an extension module designed for smart home central control units. Operating at a frequency of 868 - 868.6 MHz and a voltage of 12 V, it measures 126 mm in width, 158 mm in depth, and 32 mm in height. This module enhances your smart home system by providing reliable connectivity and control capabilities, ensuring seamless integration with other devices.
Available at price 50.49 €: 8 pcs.
Total available for order: 34 pcs.
Warranty: 2 Years
SKU: 3658145
Manufacturer: SATEL
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
03.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
08.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.74 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
08.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

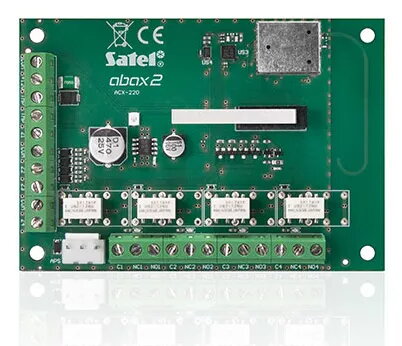

The Satel ACX-220 extension module adds wired device support to ABAX 2/ABAX wireless smart home systems, enabling integration of detectors, sirens and other wired peripherals. Operating at 868–868.6 MHz and powered by 12 V DC, the module provides four programmable zones with support for NO and NC wired detectors, two EOL resistor configurations and four programmable relay outputs. Remote configuration and firmware updates are supported, and two-way radio communication in ABAX 2 uses AES encryption. The housing includes a tamper switch that detects enclosure opening.

Advantages

The ACX-220 lets you expand a wireless installation with reliable wired inputs and relay outputs while keeping centralised remote management and firmware updating. Its support for both NO and NC detectors and two EOL configurations increases compatibility with a wide range of wired sensors. Four programmable relays provide flexible control of external devices. AES-encrypted two-way communication in the ABAX 2 system preserves data integrity and device authentication. A built-in tamper switch gives additional physical security by signalling enclosure tampering.

Suitable for

  • Integrating wired detectors and sirens into ABAX 2/ABAX wireless alarm systems
  • Expanding control points where additional relay outputs are required
  • Installations needing remote configuration and firmware maintenance
  • Residential and commercial smart home or security systems requiring tamper detection

Key specifications

  • Operating frequency: 868–868.6 MHz
  • Supply voltage: 12 V DC
  • Dimensions: 126 mm (W) × 158 mm (D) × 32 mm (H)
  • Inputs: 4 programmable zones supporting NO and NC wired detectors
  • End-of-line options: support for two EOL resistor configurations
  • Outputs: 4 programmable relay outputs
  • Communication: two-way radio communication with AES encryption in ABAX 2
  • Remote features: remote configuration and firmware updates
  • Security: built-in tamper switch for enclosure opening detection

How to use

Mount the ACX-220 in a suitable enclosure and connect it to a compatible buffer power supply unit that provides 12 V DC. Wire detectors and sirens to the programmable zones, observing the selected NO or NC wiring and the chosen EOL resistor configuration. Connect devices controlled by relays to the relay outputs following standard wiring practices. Add the module to the ABAX/ABAX 2 system using the central control unit interface; once included, perform remote configuration and, if available, update the firmware from the central management console. Verify tamper switch operation after installation and test each zone and relay to confirm correct operation.

Usage recommendations

Use the ACX-220 with compatible APS-series buffer power supplies and follow the manufacturer's installation guidelines. Ensure correct EOL resistor selection for reliable tamper and fault detection. Perform regular remote firmware updates and periodic functional tests of all wired zones and relay outputs to maintain system reliability.

All features
Weight:
0.204 kg
Operating temperature (T-T):
-10 - 55
Height:
32 mm
Width:
126 mm
Depth:
158 mm
Product colour:
Green
Maximum operating distance:
2000 m
Operating frequency:
868 - 868.6
Operating voltage:
12 V
Connection type:
Wired
Product type:
Extension module
