header-product Blind/shutter actuator SATEL KNX-BSA12H, DIN-rail, 4 channels, 20/30 V, 6 A, 92×60×70 mm
147.49 €

Blind/shutter actuator SATEL KNX-BSA12H, DIN-rail, 4 channels, 20/30 V, 6 A, 92×60×70 mm

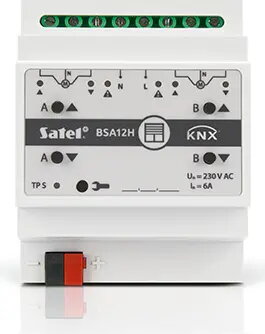

Blind/shutter actuator SATEL KNX-BSA12H Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Blind/shutter actuator SATEL KNX-BSA12H, DIN-rail, 4 channels, 20/30 V, 6 A, 92×60×70 mm

{{email}}
You keep track of price changes

Blind/shutter actuator SATEL KNX-BSA12H, DIN-rail, 4 channels, 20/30 V, 6 A, 92×60×70 mm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

DIN-rail mounted blind/shutter actuator SATEL KNX-BSA12H with 4 independent channels designed for KNX smart-home installations. Operates at 20/30 V with a maximum current of 6 A per channel. Compact module (92×60×70 mm) suitable for mounting in distribution cabinets to control roller shutters, blinds and similar drives in residential and commercial buildings.
Available for order: 36 pcs.
Warranty: 2 Years
SKU: 12041902
Manufacturer: SATEL
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
14.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
17.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.19 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
17.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 49.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 4.10 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

DIN-rail mounted blind/shutter actuator SATEL KNX-BSA12H is a compact KNX module for controlling sun protection and electrically operated windows in residential and commercial KNX installations. The device provides four independent logical channels implemented on two physical outputs, supports 230 V AC motors and operates at 20/30 V KNX power. With dimensions of 92×60×70 mm, the unit is intended for installation in distribution cabinets and enables centralized control of roller shutters, horizontal (Venetian) blinds, awnings and similar drive mechanisms.

Advantages

The SATEL KNX-BSA12H offers selectable blind or shutter type for each logical channel and automatic detection of travel and slat adjustment times, which simplifies commissioning and tuning. Weather alarm inputs for rain, wind and frost allow integration with external sensors to protect equipment and adjust behavior automatically. Position forcing and per-channel control ensure flexible operation for mixed installations, while the compact DIN-rail form factor saves space in distribution boards.

Suitable for

  • Centralized control of roller shutters and awnings in homes and apartments
  • Automation of Venetian or horizontal blinds with slat adjustment
  • Integration of electrically operated windows into KNX systems
  • Commercial buildings where DIN-rail mounting and space-saving modules are required

Key specifications

  • Mounting: DIN-rail module (distribution cabinet installation)
  • Channels: 4 logical channels implemented on 2 physical outputs
  • Motor type: supports 230 V AC motors
  • Operating voltage (KNX): 20/30 V
  • Maximum current per channel: up to 6 A
  • Dimensions: 92 × 60 × 70 mm
  • Functions: selectable blind/shutter type per channel, automatic travel and slat adjustment time detection, weather alarm inputs (rain, wind, frost), position forcing

How to use

Install the KNX-BSA12H on a standard DIN-rail inside the distribution cabinet and connect the module to the KNX bus using the recommended bus wiring. Wire the 230 V AC motor outputs and the external sensor inputs (rain, wind, frost) according to the installation diagrams and local regulations. Configure each logical channel in the KNX ETS software, select the appropriate blind or shutter type for each channel and run automatic detection of travel and slat adjustment times to calibrate motion limits. Assign group addresses and scenes as required for user control and automation logic.

Usage recommendations

Use the automatic detection routine during initial commissioning to ensure accurate travel times and slat positioning. Connect weather sensors to the designated inputs to enable automatic protection of blinds and awnings. Follow local electrical codes and safety practices when wiring 230 V AC motors and ensure proper separation of low-voltage KNX wiring and mains conductors.

All features
Weight:
0.188 kg
Storage temperature (T-T):
-25 - 70
Operating temperature (T-T):
0 - 45
Height:
70 mm
Input voltage:
20/30
Width:
92 mm
Depth:
60 mm
Product colour:
White
Channels quantity:
4 channels
Number of devices supported:
45
Mounting type:
DIN rail-mounted
Current:
6 A
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP20
Product type:
Blind/shutter actuator
