Video Splitter SBOX HDMI-8

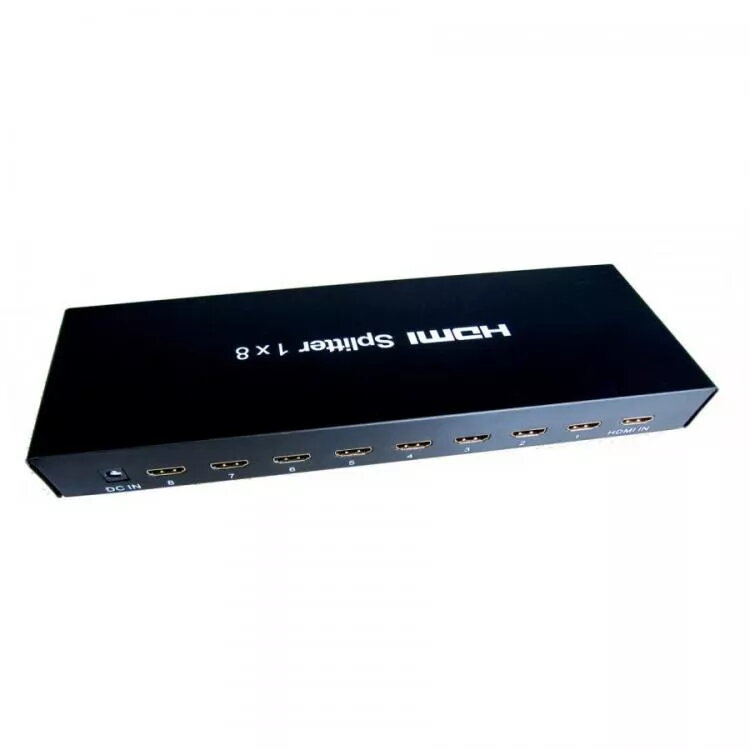

The SBOX HDMI-8 video splitter allows a single HDMI source to be duplicated across up to eight displays at resolutions up to 1920 x 1200 pixels. Housed in a compact black enclosure measuring 275 mm × 105 mm × 40 mm, the unit is designed for reliable Full HD distribution with a straightforward HDMI connection scheme. Operating from a 5V power input and consuming typically 10W, the splitter is intended for environments where multiple identical outputs from one HDMI source are required.

Advantages

The device supports distribution of one HDMI input to eight outputs without the need for additional signal converters, preserving the original signal format and resolution up to 1920 x 1200. Its compact footprint and black finish make it easy to integrate into AV cabinets, presentation carts or home entertainment setups. Low typical power consumption and a single 5V power input simplify installation and reduce operating costs.

Suitable for

• Conference rooms and meeting spaces for simultaneous display of presentations
• Retail and digital signage where identical content is required on multiple screens
• Home theater systems and multi-room video distribution
• Gaming setups that require mirrored output to several monitors or capture devices
• Educational environments such as classrooms and lecture halls

Key specifications

• Video port type: HDMI
• Number of outputs: 8
• Maximum supported resolution: 1920 x 1200 pixels
• Typical power consumption: 10 W
• Power input: 5 V
• Colour: Black
• Dimensions (W × D × H): 275 mm × 105 mm × 40 mm

How to use

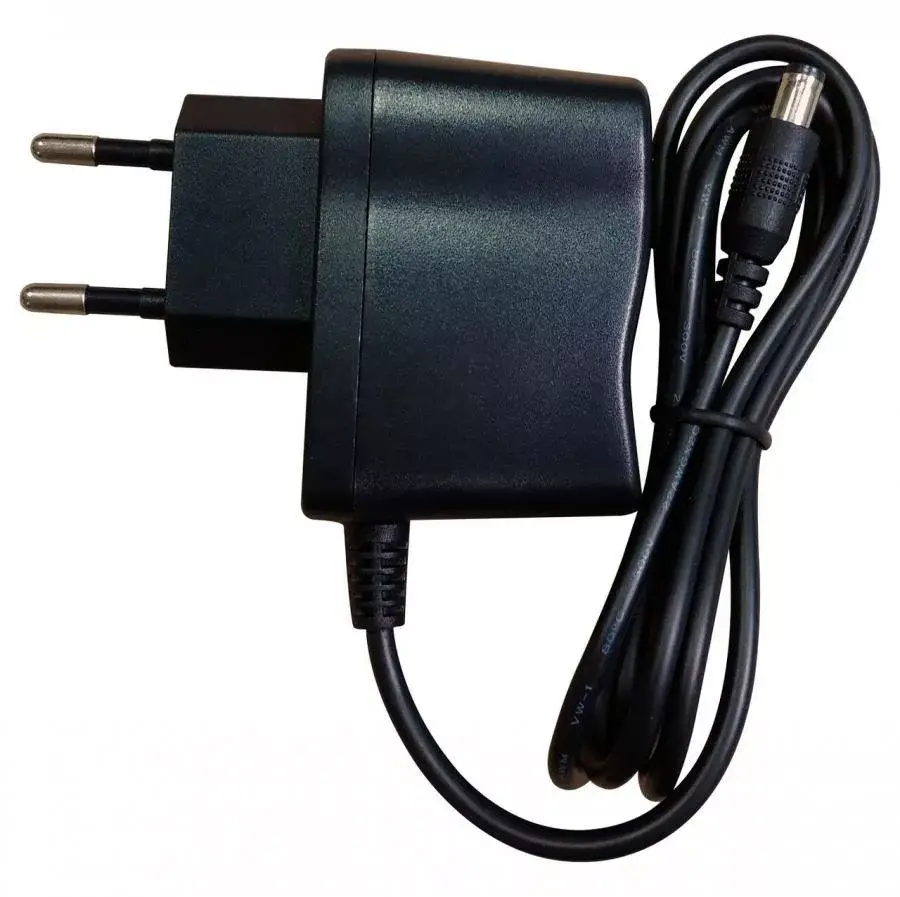

Connect a compatible HDMI source (for example a media player, laptop or set-top box) to the input HDMI port on the SBOX HDMI-8, then connect up to eight HDMI cables from the splitter outputs to the target displays. Plug the 5V power adapter into the unit and a mains outlet. Power on the source and displays; the splitter will duplicate the input signal to all connected outputs at the supported resolution. Ensure all cables are securely connected and displays are set to the correct HDMI input.

Usage recommendations

For reliable performance, use quality HDMI cables of appropriate length and, where long cable runs are necessary, consider using cable extenders or active HDMI cables to minimise signal degradation. Verify that the source device output resolution matches or is within the 1920 x 1200 limit. When using multiple displays with differing EDID requirements, check display compatibility to avoid handshake or resolution negotiation issues.
