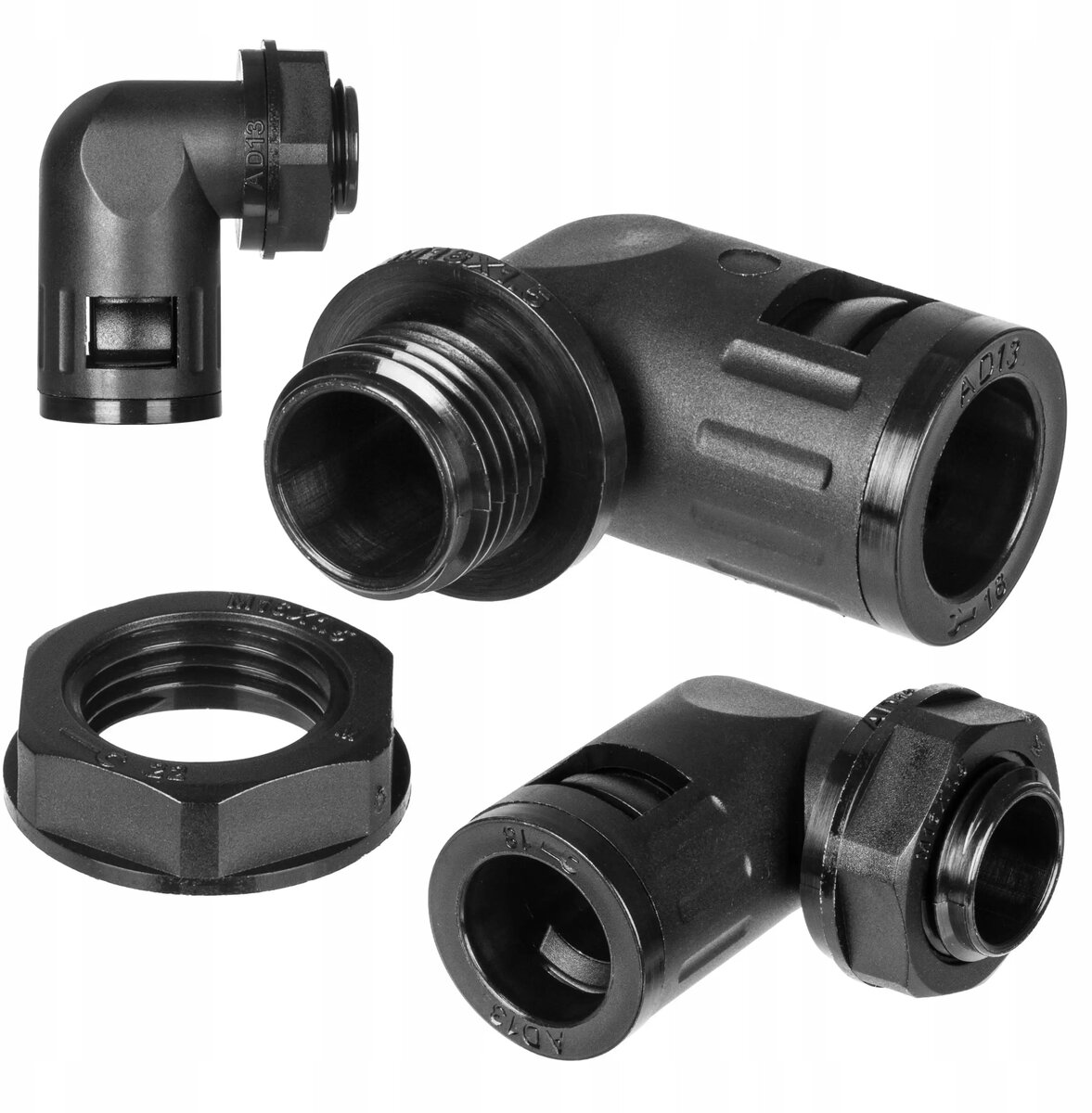

Schneider Electric ANA-QUICK 90-degree conduit gland M16x1.5 for NW10 conduit, black

The Schneider Electric ANA-QUICK 90-degree conduit gland is a specialized component engineered for the secure termination and routing of NW10 corrugated conduits. Featuring an M16x1.5 connection thread, this fitting provides a robust interface for electrical installations, ensuring that conduits remain firmly attached while protecting internal wiring from mechanical stress and environmental factors. Its black finish and durable construction make it a reliable choice for professional wiring systems in both industrial and commercial environments.

Advantages

The primary benefit of this conduit gland is its 90-degree angled design, which facilitates efficient cable management in confined spaces where a straight connection would be impractical or cause excessive cable bending. By utilizing this fitting, installers can achieve cleaner cable routing, reducing the risk of cable damage and improving the overall organization of electrical panels or machinery. The high-quality material composition ensures long-term durability and resistance to vibration, maintaining a secure connection throughout the service life of the installation.

Suitable for

• Industrial automation and control cabinets
• Commercial electrical wiring systems
• Machinery and equipment requiring flexible conduit routing
• Tight spaces where 90-degree cable entry is necessary

This product may not be suitable for applications requiring high-pressure liquid-tight seals or environments exposed to extreme chemical substances that could degrade the specific plastic material used in the fitting. It is also not intended for use with conduit sizes other than NW10 or threads incompatible with the M16x1.5 standard.

Key specifications

• Angle: 90 degrees
• Conduit size compatibility: NW10
• Thread type: M16x1.5
• Color: Black
• Material: High-grade plastic

To install the Schneider Electric ANA-QUICK gland, first ensure the conduit is cut cleanly to the appropriate length. Insert the conduit into the fitting until it clicks or is securely locked into place, depending on the specific locking mechanism of the gland. Screw the M16x1.5 threaded end into the corresponding port or enclosure entry point. Ensure the connection is tightened sufficiently to prevent loosening due to vibration, but avoid over-tightening to prevent damage to the threads.

What to consider before purchase

• Verify that your conduit is of the NW10 size standard
• Confirm that the enclosure or device port has an M16x1.5 threaded entry
• Assess the space requirements to ensure the 90-degree angle provides the necessary clearance

For optimal performance and safety, always inspect the conduit and gland connection during routine maintenance to ensure no loosening has occurred and that the cable remains protected from sharp edges or excessive tension.
