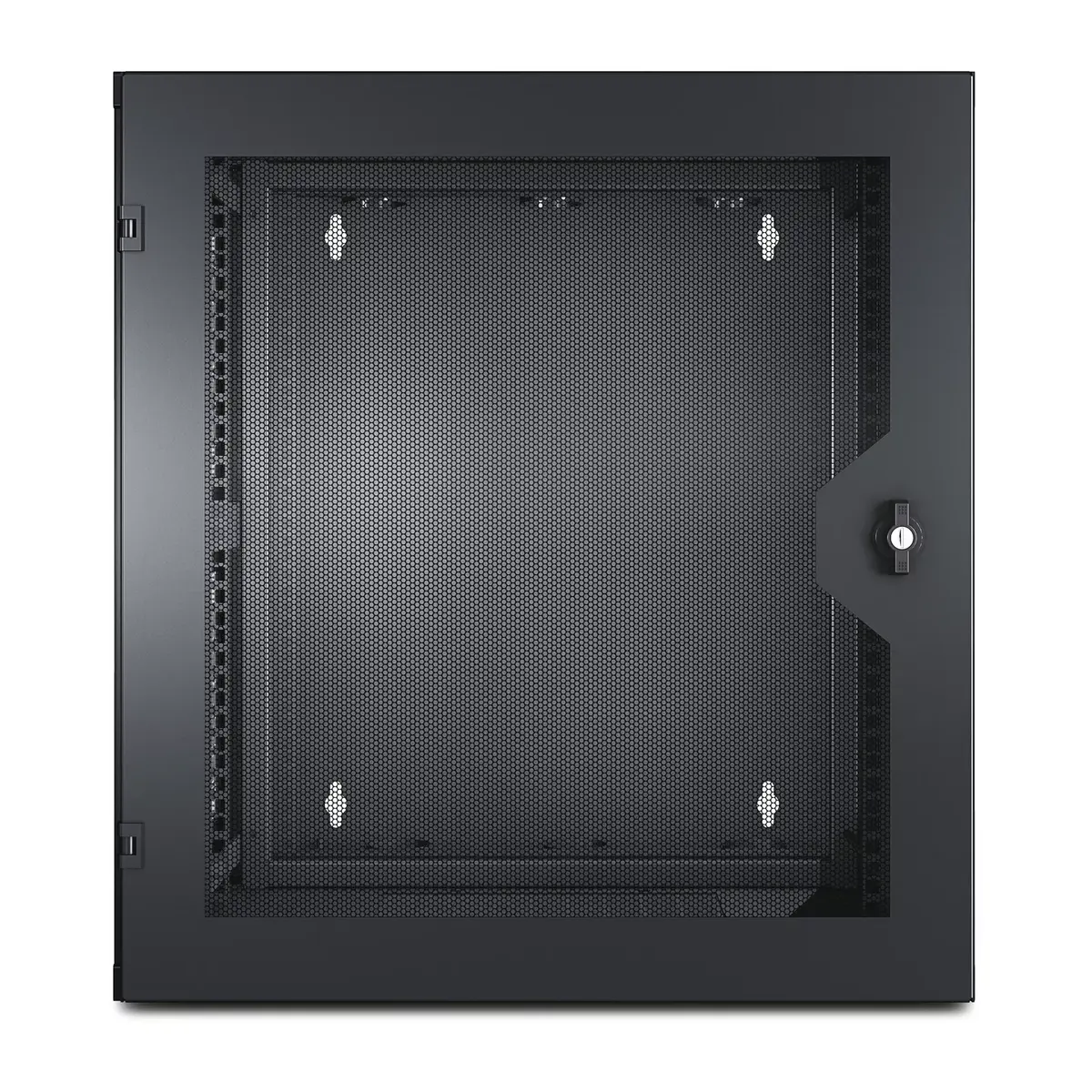

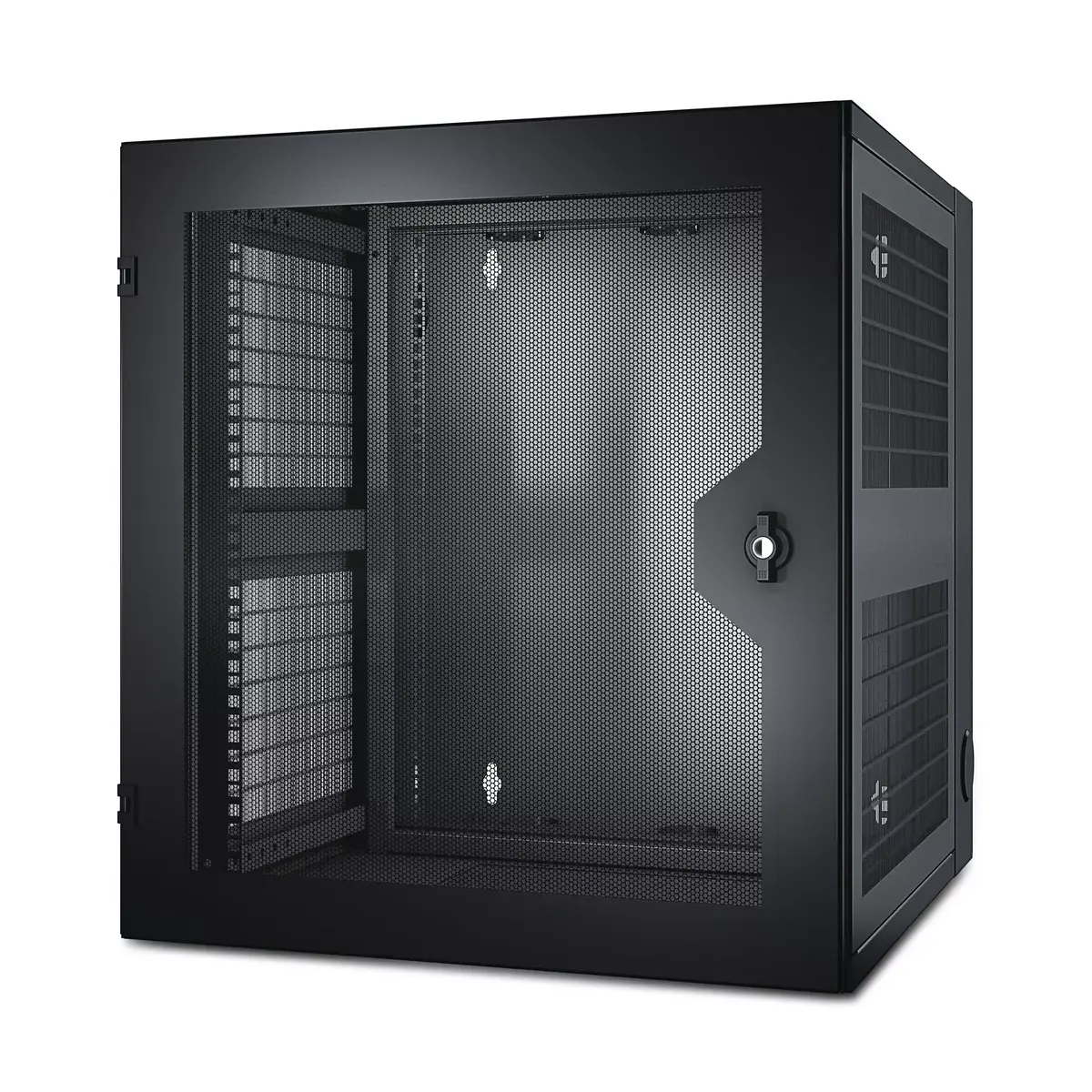

Wall mounted rack APC NetShelter 13U Vented Door Double Hinged 90.91 kg

The APC NetShelter 13U wall-mount rack cabinet (AR100HD) is a compact 19-inch enclosure designed for environments with limited floor space. It accommodates servers and networking equipment for edge computing and small IT deployments, offering a vented front door and double-hinged rear access to simplify installation and maintenance. The cabinet ships fully assembled and supports integration of low-profile APC Smart-UPS units and optional accessories such as a top-mounted 120V fan tray and caster kit.

Advantages

This 13U wall rack provides a sturdy 90.91 kg weight capacity and up to 19 inches of mounting depth, enabling installation of servers, switches and patch panels in retail, healthcare and education settings. The reversible door allows you to change the swing direction to avoid interference with surrounding space, while the double-hinged design gives full rear access for cabling and service. The vented door and optional fan tray improve airflow for installed equipment, and the cabinet is covered by a 5-year APC warranty.

Suitable for

• Edge computing nodes and small servers
• Network switches and patch panels
• Retail, healthcare and educational facility IT closets
• Environments with limited floor space requiring wall-mounted racks

Key specifications

• Model: APC NetShelter AR100HD
• Rack units: 13U
• Rack width: 19 inches
• Maximum mounting depth: 19 inches
• Weight capacity: 90.91 kg (200 lb)
• Cabinet weight: 42.7 kg
• Door: vented, reversible
• Hinges: double-hinged (rear access)
• Color: black
• Warranty: 5 years (APC)

How to use

Mount the cabinet to a suitable wall structure rated to support the cabinet weight plus installed equipment. Verify mounting surface and fasteners meet local building codes and load requirements. Install rack-mounted equipment into the 19-inch rails up to 13U total, observing the 19-inch maximum mounting depth. Use the double-hinged rear access during cabling and service, and set the door swing direction by reversing the door if needed to suit the room layout. Integrate low-profile APC Smart-UPS models or install the optional top-mounted 120V fan tray for additional cooling as required.

Usage recommendations

Install on a load-bearing wall or structural frame, evenly distribute equipment weight, and reserve space for airflow and cable routing. For sensitive or heat-generating equipment, use the vented door and consider the optional fan tray and UPS integration to maintain reliable operation.
