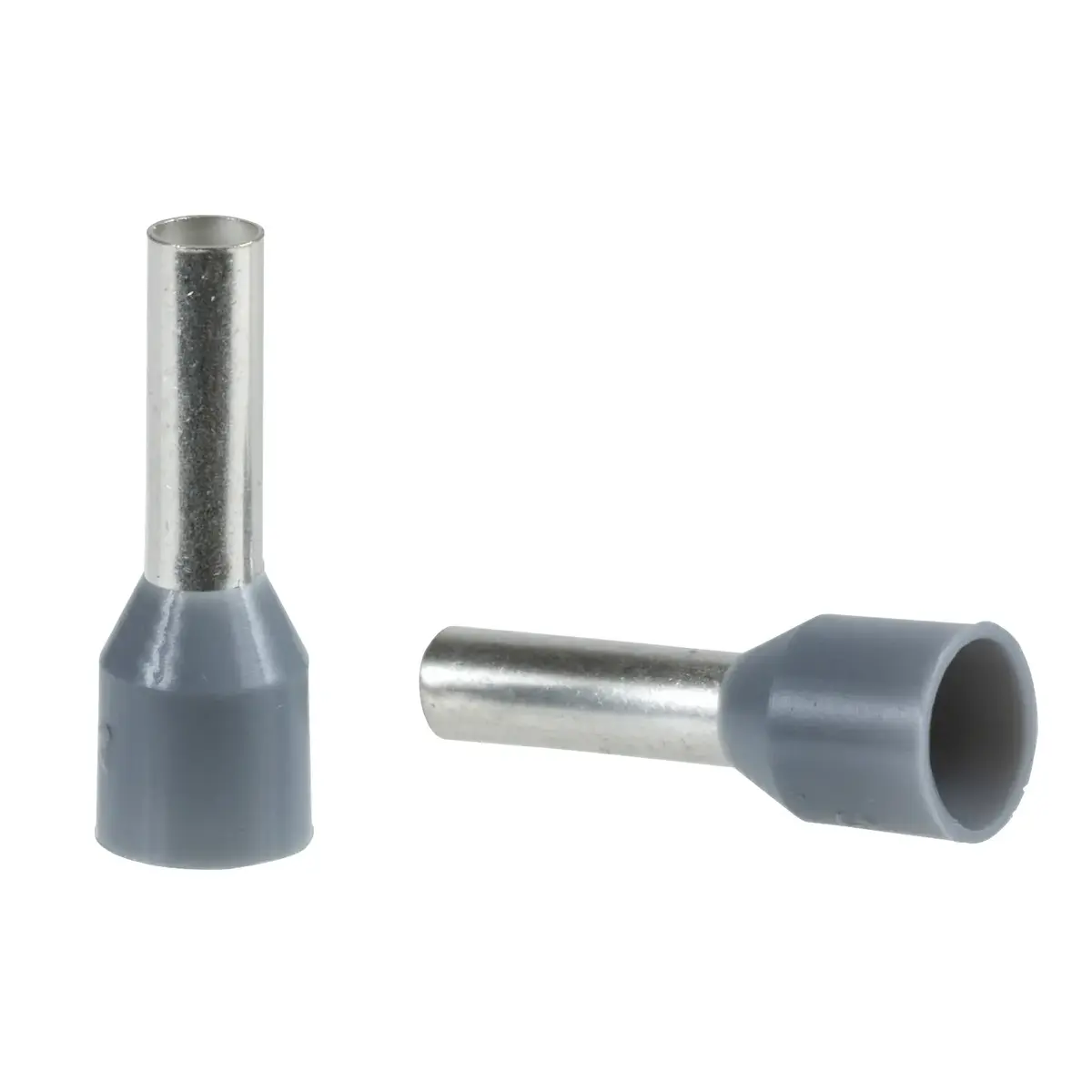

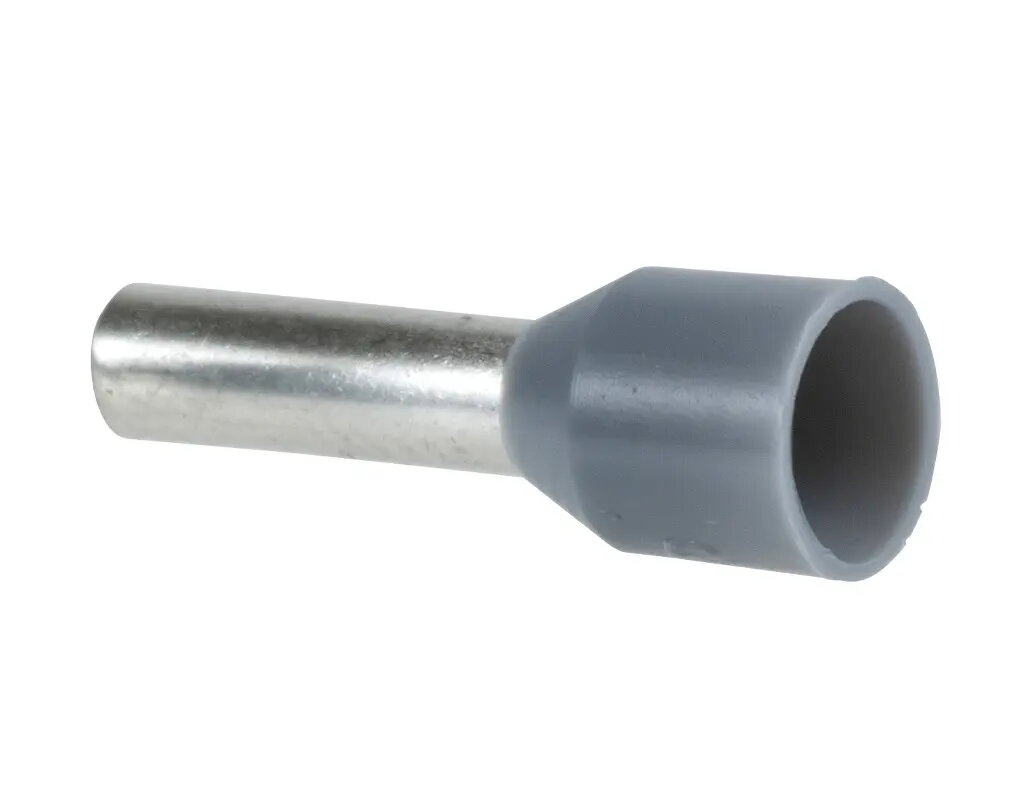

Schneider Electric DZ5CE007D Wire End Sleeve Straight Grey 3.3 mm Diameter 1.5 mm Tube Diameter 100-Pack

The Schneider Electric DZ5CE007D wire end sleeve is a reliable electrical connector designed to provide secure and professional wire termination. This straight grey sleeve ensures neat cabling and prevents frayed strands in various electrical installations. Supplied in a convenient pack of 100 pieces, it supports efficient wiring management for both industrial setups and residential projects.

Advantages

Using this wire end sleeve significantly improves the safety and longevity of electrical connections by grouping fine wire strands together securely. Its straight design allows for easy insertion into terminal blocks, ensuring optimal electrical contact and reducing the risk of loose connections or short circuits over time. Manufactured by Schneider Electric, the component meets high standards of quality and durability, contributing to professional and tidy wiring work.

Suitable for

• Electrical control panel wiring and assembly
• Residential and commercial electrical installations
• Connecting stranded wires to terminal blocks and circuit breakers
• General electrical maintenance and repair projects

When it may not be suitable

This wire end sleeve is not designed for solid core wires, as solid conductors do not require sleeve termination. Additionally, it may not be compatible with terminal blocks or connection points that exceed or fall significantly short of its specific physical dimensions.

Key specifications

• Product type: Wire end sleeve
• Connector type: Straight
• Product colour: Grey
• Diameter: 3.3 mm
• Tube diameter: 1.5 mm
• Length: 14 mm
• Quantity per pack: 100 pieces

How to use

Prepare the electrical wire by stripping the appropriate length of insulation to match the tube of the sleeve. Carefully gather any exposed stranded wire and insert the conductors fully into the metal tube of the wire end sleeve. Use a compatible crimping tool designed for wire end sleeves to compress the connector securely onto the wire before inserting the terminated end into the target terminal block.

What to consider before purchase

• Verify that the wire gauge matches the 1.5 mm tube diameter and overall dimensions of the sleeve.
• Ensure you have a suitable crimping tool for proper installation.
• Check the quantity requirements for your specific wiring project.

To achieve the best electrical connection, always use a calibrated crimping tool suitable for wire end sleeves and ensure the stripped wire is fully inserted before compression.
