Schneider Electric LP1D

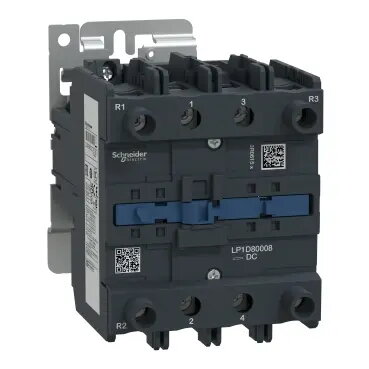

The Schneider Electric LP1D is a high-performance 4-pole power contactor designed for reliable electrical switching in demanding industrial environments. Engineered for durability and precision, this contactor ensures consistent operation in power circuits, providing robust control for various electrical loads. Its compact design and high insulation ratings make it a dependable component for modern electrical distribution systems.

Advantages

This contactor offers exceptional operational reliability due to its high rated impulse withstand voltage, which protects the system against transient surges. The 4-pole configuration allows for versatile circuit management, while the robust construction ensures a long service life even under frequent switching conditions. Its standardized dimensions facilitate easy integration into existing control panels and electrical cabinets.

Suitable for

• Industrial motor control systems
• Power distribution and switching circuits
• Automation and control panels
• Heating and lighting control applications

When it may not be suitable

This device is designed for specific DC control voltage applications and may not be compatible with systems requiring different coil voltages. It is intended for professional industrial use and may not be suitable for residential environments where specialized noise or size constraints apply.

Key specifications

• Number of poles: 4P
• Rated insulation voltage: 600 V
• Rated impulse withstand voltage: 8 kV
• Width: 96 mm
• Depth: 196 mm
• Height: 127 mm

How to use

The contactor should be mounted on a standard DIN rail or directly onto a mounting plate within an electrical enclosure. Ensure that all electrical connections are tightened to the specified torque to prevent overheating. The control circuit must be connected to the designated terminals, ensuring the supply voltage matches the contactor coil rating before activation.

What to consider before purchase

• Verify that the control voltage matches your system requirements.
• Ensure the physical dimensions fit within your existing enclosure space.
• Confirm that the 4-pole configuration meets your circuit design needs.

Usage recommendations

Always ensure that the power supply is disconnected before performing any installation or maintenance work on the contactor to prevent electrical hazards.
