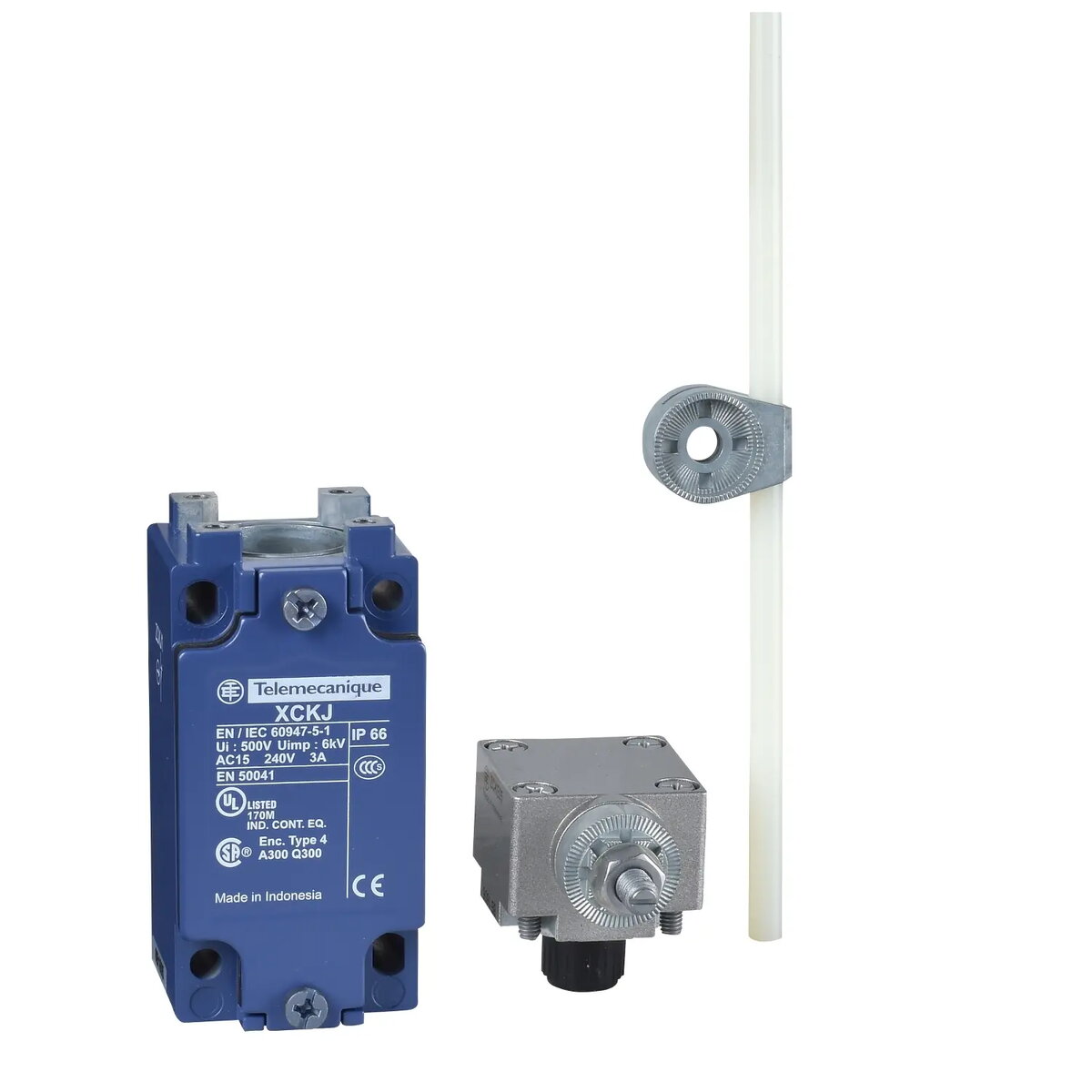

The Schneider Electric XCKJ10559 is a high-performance industrial safety limit switch engineered for precise position detection in challenging operational environments. This robust device features a durable metal housing and a thermoplastic round rod lever actuator, ensuring reliable performance in heavy-duty automation and machinery control systems. With an IP66 protection rating, the switch is fully protected against dust ingress and powerful water jets, making it a dependable choice for demanding industrial applications.
Advantages
The primary advantage of this limit switch is its exceptional durability and resistance to environmental factors. The snap-action contact mechanism ensures rapid and reliable switching, which is critical for safety interlocking and precise machine positioning. Its modular design and standardized mounting dimensions facilitate easy integration into existing control panels and machinery layouts, while the robust rod lever provides versatile actuation options for various mechanical movements.
Suitable for
- Industrial automation and control systems
- Safety interlocking on machine guards and doors
- Position monitoring of moving parts in manufacturing lines
- Conveyor belt systems and material handling equipment
When it may not be suitable
This switch may not be appropriate for applications requiring non-contact sensing, such as proximity detection of non-metallic objects. Additionally, it is not designed for use in explosive atmospheres or environments with extreme chemical exposure that could degrade the thermoplastic or metal components.
Key specifications
- Actuator type: Thermoplastic round rod lever (6 mm)
- Contact configuration: 1NC + 1NO (Normally Closed + Normally Open)
- Switching action: Snap action
- Protection rating: IP66
- Cable entry: Pg13
- Housing material: Metal
How to use
Installation should be performed by qualified personnel in accordance with local electrical regulations. The switch is mounted using the provided fixing points, ensuring the rod lever is correctly aligned with the moving part of the machinery. Once mounted, the electrical connections are made via the Pg13 cable entry, ensuring that the cable gland is properly tightened to maintain the IP66 seal. Periodic inspection of the lever movement and electrical contacts is recommended to ensure continued operational safety.
What to consider before purchase
- Verify that the rod lever length and shape are compatible with your mechanical actuation requirements.
- Ensure the electrical load matches the contact ratings of the switch.
- Check that the mounting space is sufficient for the physical dimensions of the XCKJ series housing.
- Confirm that the Pg13 cable entry is compatible with your existing conduit or cable gland system.
Usage recommendations
Regularly check the mechanical integrity of the rod lever and ensure that the switch housing remains free of debris to maintain the integrity of the IP66 seal. Always test the safety interlocking function during routine maintenance cycles.
