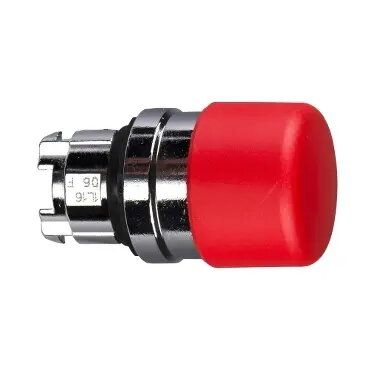

Schneider Electric ZB4BC44 Mushroom Head Push Button, Red, Spring Return, Metal

The Schneider Electric ZB4BC44 is a robust mushroom head push button engineered for demanding industrial control applications. Constructed from high-quality metal, this component provides exceptional durability and reliability in various operational settings. The red mushroom-shaped actuator is designed for high visibility and ease of use, featuring a spring return mechanism that ensures the button resets automatically after each activation.

Advantages

This push button offers superior protection against environmental factors, boasting an IP66 rating that guarantees complete resistance to dust ingress and protection against powerful water jets. The inclusion of an IK06 impact protection rating further enhances its suitability for harsh industrial environments where mechanical shocks may occur. Its metal construction ensures a long service life and consistent performance, making it a dependable choice for critical control panel configurations.

Suitable for

• Emergency stop or control functions in industrial machinery
• Control panels in manufacturing and processing plants
• Automation systems requiring manual operator intervention
• Environments exposed to dust, moisture, or mechanical impact

When it may not be suitable

This device is not intended for applications requiring a latching or maintained contact mechanism, as it features a spring return function. Additionally, it may not be suitable for environments where specific chemical resistance beyond standard industrial requirements is necessary.

Key specifications

• Actuator type: Mushroom head
• Color: Red
• Mechanism: Spring return
• Material: Metal
• Ingress protection: IP66
• Impact resistance: IK06

How to use

The push button is designed for mounting onto standard industrial control panels. Installation involves securing the actuator through a pre-drilled hole in the panel surface and connecting it to the appropriate contact block. Once installed, the button is operated by pressing the mushroom head, which triggers the connected electrical circuit. Upon release, the spring return mechanism automatically restores the button to its original position.

What to consider before purchase

• Verify that the panel cutout diameter matches the mounting requirements
• Ensure the spring return functionality aligns with your specific control logic
• Confirm that the environmental ratings meet your site-specific conditions

Usage recommendations

Regularly inspect the actuator for any signs of mechanical wear or debris accumulation to ensure smooth operation. Ensure that the electrical contact blocks are correctly installed and tightened to maintain the integrity of the system.
