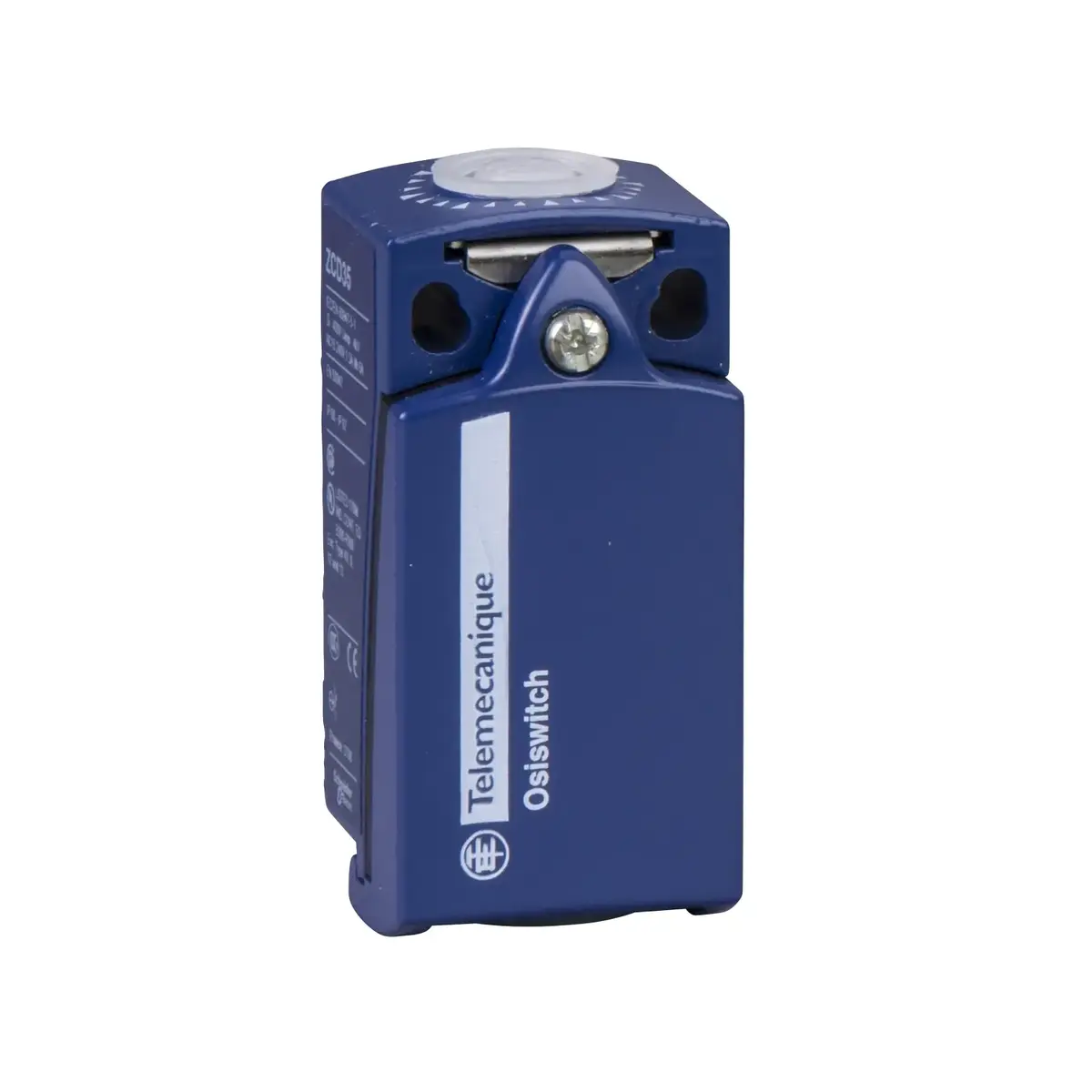

Schneider Electric ZCD21 Limit Switch Body 1NO+1NC Snap Action

The Schneider Electric ZCD21 is a robust limit switch body engineered for demanding industrial automation and control environments. This compact component serves as the core switching mechanism for machinery, ensuring precise detection and reliable operation. Featuring a 1NO+1NC contact configuration with a snap action mechanism, it provides consistent electrical performance and rapid response times. Its durable construction and compatibility with the ZCE series of heads make it a versatile solution for diverse industrial applications.

Advantages

The primary benefit of the ZCD21 limit switch body lies in its high-quality snap action mechanism, which guarantees reliable switching even in repetitive industrial cycles. Its modular design allows for seamless integration with a wide variety of ZCE series heads, offering flexibility in installation and application. The compact dimensions ensure that it can be easily mounted in space-constrained control panels or machinery frames without compromising performance or safety standards.

Suitable for

• Industrial automation systems
• Machinery position monitoring
• Safety interlock applications
• Conveyor belt control systems
• Automated assembly lines

When it may not be suitable

This limit switch body is designed for standard industrial environments and may not be suitable for applications involving extreme corrosive atmospheres, high-pressure washdown areas, or explosive zones unless housed in an appropriate protective enclosure. It is not intended for high-current power switching applications beyond its rated electrical specifications.

Key specifications

• Contact configuration: 1NO+1NC
• Switching mechanism: Snap action
• Dimensions: 31 mm width, 30 mm depth, 65 mm height
• Color: Blue
• Compatibility: ZCE series heads

How to use

To install the ZCD21, select the appropriate ZCE series head that matches your mechanical actuation requirements. Secure the switch body to the mounting surface using the provided fixing points. Ensure that the electrical connections are wired according to the 1NO+1NC configuration requirements of your control circuit. Once mounted, verify the mechanical alignment of the actuator to ensure smooth operation and proper contact triggering during the machine cycle.

What to consider before purchase

• Verify compatibility with your existing ZCE series actuator heads.
• Ensure the snap action mechanism meets the timing requirements of your control system.
• Check the physical dimensions to confirm it fits within your designated mounting space.
• Confirm that the 1NO+1NC contact arrangement aligns with your circuit logic.

Usage recommendations

Regularly inspect the mechanical actuator head for signs of wear and ensure that the switch body remains free from excessive dust or debris to maintain optimal switching reliability over the long term.
