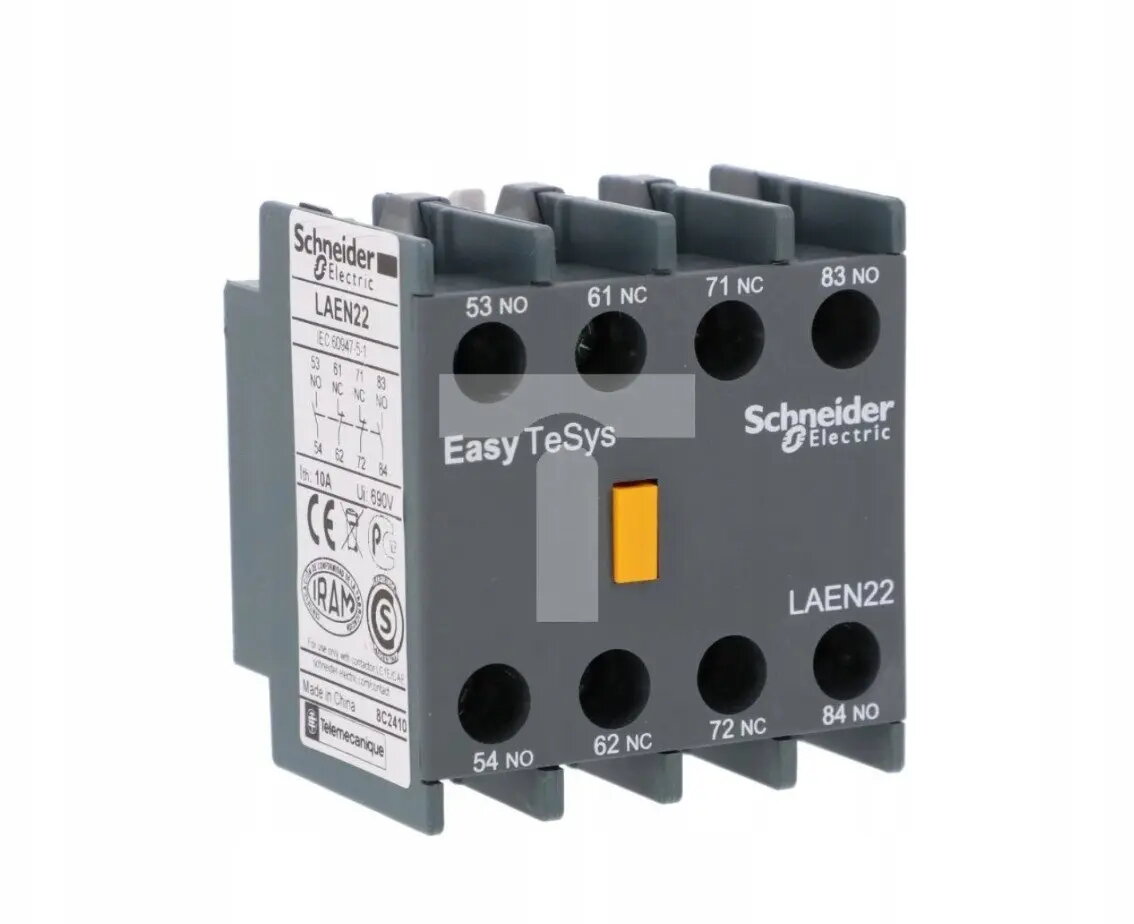

Auxiliary contacts Schneider EasyPact LAEN22 for LC1E 2NO 2NC gray

Auxiliary contacts Schneider EasyPact LAEN22 for LC1E 2NO 2NC gray are modular auxiliary contact blocks designed to attach to compatible contactors and expand their switching capabilities. The unit provides two normally open (NO) and two normally closed (NC) contact points in a compact gray housing, intended for use in signaling, interlocking and control circuits in industrial and commercial electrical installations. The design aligns with typical EasyPact accessory mounting and allows straightforward integration with LC1E series contactors.

Advantages

The auxiliary contact block offers both NO and NC contacts in a single housing, enabling flexible control and feedback arrangements without adding separate modules. Its compact form factor saves panel space and keeps wiring tidy. The gray enclosure provides visual consistency with standard EasyPact components and is built for compatibility with LC1E contactors, ensuring reliable mechanical attachment and electrical operation.

Suitable for

• Adding feedback or status signaling to LC1E contactors
• Creating interlock circuits in motor control panels
• Implementing control logic in industrial automation systems
• Supplementing commercial electrical installations with additional contact points

Key specifications

• Contact configuration: 2 normally open (2NO) and 2 normally closed (2NC)
• Housing color: gray
• Mounting: accessory block for compatible contactors
• Application: signaling, interlocking and auxiliary control circuits

How to use

Mount the auxiliary contact block onto the designated accessory plane of a compatible LC1E contactor following the contactor manufacturer's instructions. Connect the NO and NC terminals to the control or signaling circuits according to the schematic for your installation, observing proper wire size and secure terminations. Verify mechanical engagement with the contactor and perform functional tests to confirm correct opening and closing behavior under load-free conditions before applying full operational voltage.

Usage recommendations

Install and service auxiliary contacts only with power isolated and in accordance with applicable electrical standards. Use the block for low-voltage control and signaling circuits as intended, and ensure terminal connections are tightened to the torque values specified by the contactor manufacturer. Periodically inspect contacts and mounting for wear or loosening in environments with vibration or dust.
