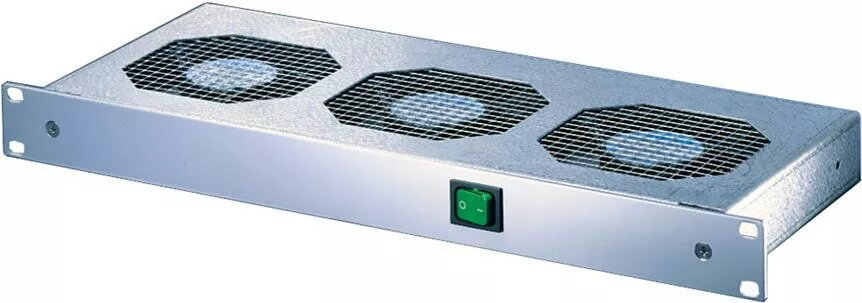

19" rack fan unit SCHROFF 10713110, 3 fans, 1U, 115V

The 19" rack fan unit SCHROFF 10713110 is a 1U-height cooling module with three axial fans designed for installation in standard 19-inch racks. It operates from a 115V supply and provides directed airflow to help maintain temperature stability and reduce hotspot formation inside server cabinets, telecom enclosures and industrial racks. The unit is intended for continuous ventilation of electronic equipment where compact, rack-mounted forced-air cooling is required.

Advantages

This rack fan unit combines a low-profile 1U form factor with three fans to deliver enhanced airflow without consuming multiple rack units. The 115V operation suits installations with standard AC distribution in many regions and eliminates the need for additional DC conversion. Its rack-mount design allows direct integration into existing 19-inch enclosures, simplifying installation and service access while supporting continuous operation to maintain cooling performance for sensitive electronics.

Suitable for

• Server cabinets and data center racks requiring additional airflow
• Telecommunications cabinets and network equipment enclosures
• Industrial control panels and electrical enclosures with heat-generating components
• Retrofit cooling in constrained rack spaces where a 1U solution is needed

Key specifications

• Form factor: 1U, 19-inch rack-mount
• Fan count: 3 axial fans
• Supply voltage: 115V AC
• Intended use: forced-air ventilation for electronic enclosures
• Mounting: front or rear rack insertion compatible with standard 19" rails
• Operation mode: continuous duty suitable for data center and industrial environments

How to use

Install the fan unit into a free 1U space in a standard 19-inch rack, securing it to the rack rails using the provided mounting points or screws. Connect the unit to a 115V AC power source following local electrical codes and the enclosure manufacturer's guidelines. Position the unit to direct airflow across the heat-generating components or to assist existing cooling paths; verify airflow direction and clearance for intake and exhaust. Regularly inspect the fans and ventilation openings and perform maintenance as required to ensure uninterrupted operation.

Usage recommendations

Use this SCHROFF 1U fan unit as part of a planned rack cooling strategy: combine with proper cable management, blanking panels and monitored temperature sensors to optimize airflow and prevent recirculation. Schedule periodic cleaning and inspection intervals and ensure the 115V supply is protected by appropriate circuit protection and filtering where necessary.
