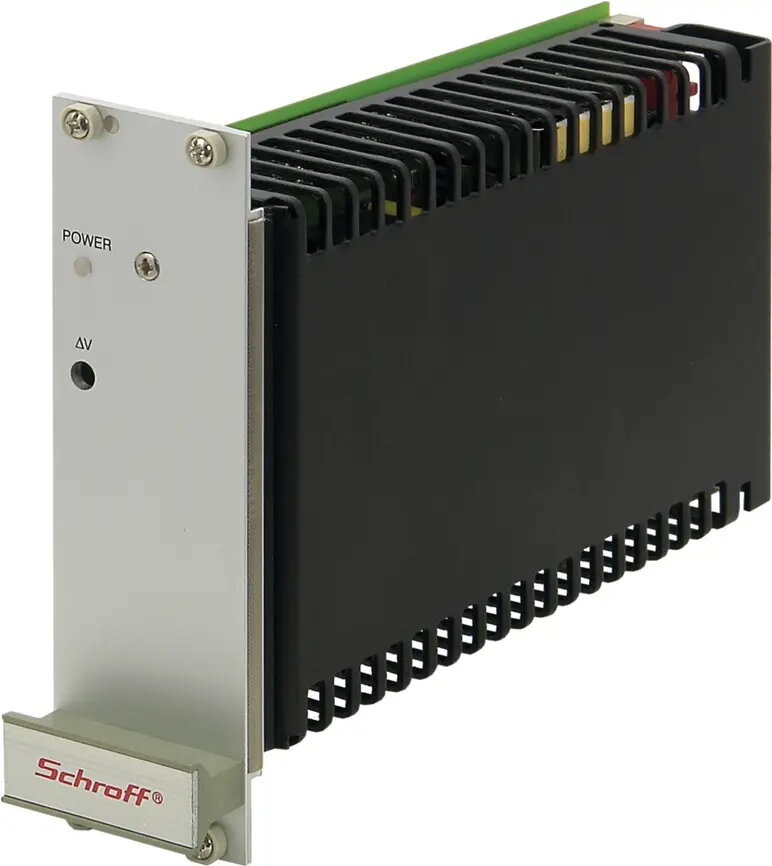

Power supply SCHROFF MAX180-105 180 W single output, model MAX180-105

SCHROFF MAX180-105 is a single-output 180 W power supply designed for industrial and embedded systems. The unit provides a stable DC output tailored to power electronic modules, control units and rack-mounted equipment where consistent voltage and dependable operation are required. Its compact form factor and installation-friendly design make it suitable for integration into enclosures and chassis used in industrial automation, telecommunications and test systems.

Advantages

The power supply delivers a continuous 180 watts from a single regulated output, ensuring predictable performance for connected electronics. Built for industrial environments, it emphasizes stability and straightforward installation while minimizing the footprint in constrained assemblies. The design supports integration into existing racks and subassemblies and reduces the need for additional conversion components.

Suitable for

• Industrial control cabinets and automation equipment
• Embedded systems and single-board computer platforms
• Rack-mounted instruments and telecom devices
• Test benches, measurement equipment and laboratory setups
• Replacement or upgrade of existing DC power modules in compact enclosures

Key specifications

• Output power: 180 W continuous single DC output
• Form factor: compact industrial module suitable for chassis or rack integration
• Intended use: industrial and embedded applications requiring reliable DC power
• Cooling: designed for integration with system airflow or chassis cooling (internal mounting assumed)
• Installation: straightforward mounting and electrical connections for industrial assemblies

How to use

Install the power supply in a compatible chassis or equipment bay following the manufacturer’s mechanical mounting points. Connect the AC input and DC output according to the system wiring diagram and ensure proper grounding. Verify that the system’s input voltage and inrush current characteristics match the supply’s requirements before powering up. After installation, monitor the output voltage under load to confirm stable operation and allow adequate ventilation around the unit to prevent thermal buildup.

Usage recommendations

Place the unit where chassis airflow can remove heat effectively and avoid installing near high-heat sources. Use appropriate wiring and fusing on the DC output to protect downstream electronics and follow EMI/EMC layout practices when integrating into sensitive systems.
