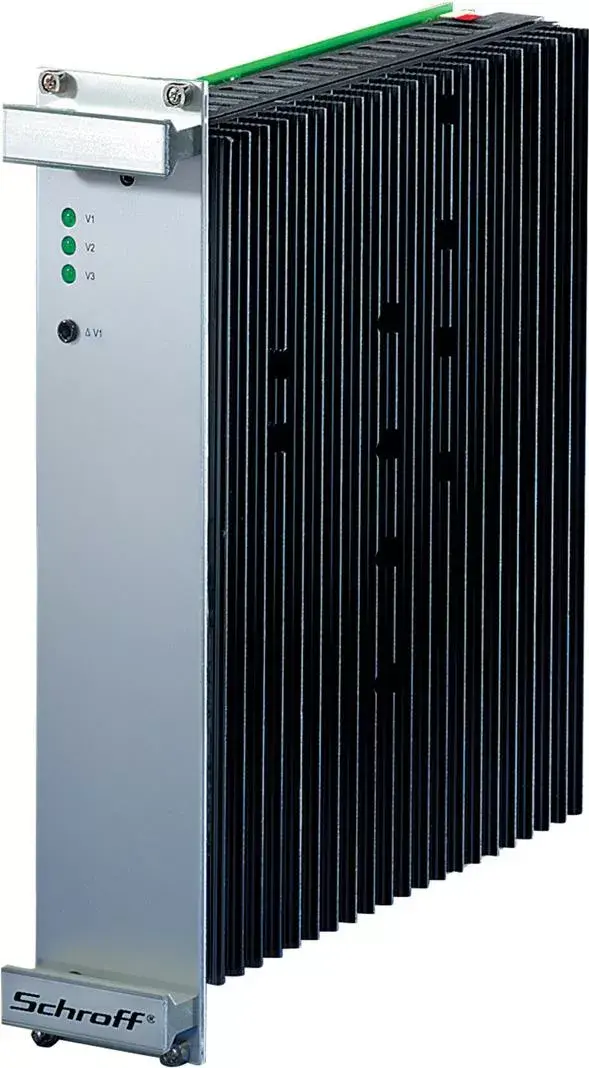

AC/DC Regulator SCHROFF Triple 150W 224W - industrial power module, model 13100205

The SCHROFF AC/DC Regulator Triple 150W 224W (model 13100205) is an industrial power conversion module engineered for integration into system racks and embedded electronics. It provides multiple regulated DC outputs and is intended for applications that require stable voltage rails, redundant power arrangements and centralized power management within chassis-based systems. The module supports professional equipment environments such as telecom, server and industrial control systems where consistent power distribution and thermal compatibility with chassis architectures are required.

Advantages

The module offers multiple regulated outputs within a compact form factor suitable for rack and chassis installation, enabling simplified wiring and centralized power distribution. It is designed to support redundancy and reliable operation in continuous-use environments, reducing the need for separate external power supplies. Thermal and mechanical compatibility with system racks helps maintain integration with existing professional enclosures.

Suitable for

• Telecommunications equipment and base-station electronics
• Server and storage systems requiring multiple DC rails
• Industrial control cabinets and automation controllers
• Embedded systems where chassis-based power management is used
• Applications requiring redundant or hot-swappable power modules

Key specifications

• Form factor: industrial module for rack/chassis integration
• Combined power ratings: configurations indicated as 150W and 224W total output power
• Output: multiple regulated DC outputs suitable for system electronics
• Intended use environment: telecom, server, industrial control and embedded systems
• Mounting: designed for installation in system racks or chassis enclosures

How to use

Install the SCHROFF AC/DC regulator into a compatible chassis or rack slot according to the enclosure manufacturer’s mounting and electrical connection procedures. Connect AC input and DC output wiring as specified by system wiring diagrams, ensuring correct polarity and secure connections. Configure any system-level power distribution or redundancy mechanisms supported by the chassis; verify voltages at the output rails under load before placing connected equipment into service. Observe standard safety and grounding practices when working with AC mains and DC distribution.

Usage recommendations

Use the module within the thermal and ventilation conditions specified by the chassis vendor and maintain regular inspection of electrical connections. For redundancy setups, pair with compatible modules and follow the system integrator’s guidance for load sharing and failover. When integrating into telecom or server racks, confirm that the combined output power (150W or 224W configuration) meets the aggregate consumption of downstream devices.
