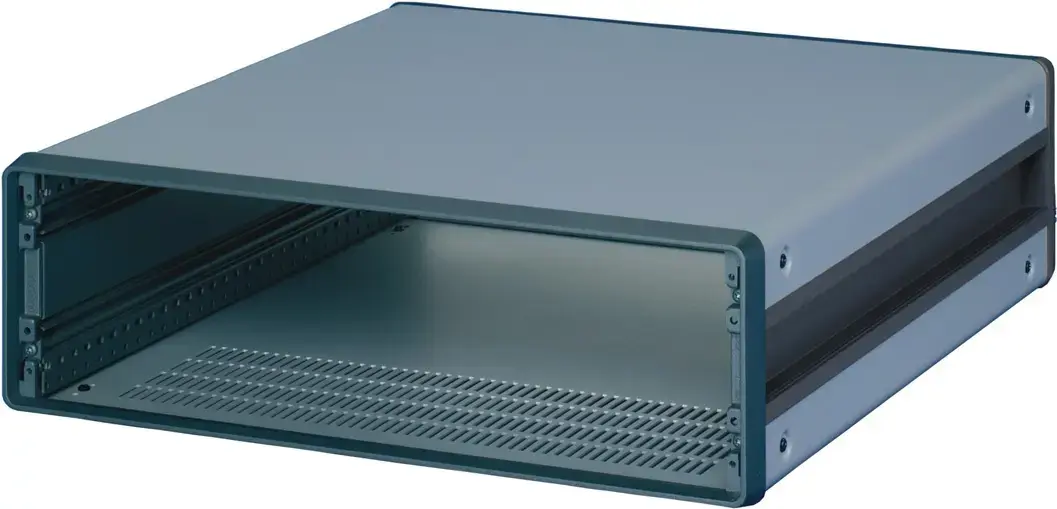

SCHROFF compact 2U chassis COMPAC PRO 84TE 331T (rack unit 2 HE) - model 14575065

SCHROFF COMPAC PRO 2 HE chassis (model 14575065) is a compact 2U rack enclosure with an 84TE front width and a 331T depth designation. It is designed to hold electronic modules and circuit boards in a standardized rack environment, providing a space-efficient housing for industrial, telecommunications and control applications. The chassis supports modular configurations and offers a rigid metal structure for secure mounting and protection of components in server, measurement and test systems.

Advantages

The COMPAC PRO 2 HE chassis provides a compact footprint while maintaining standardized front width and depth dimensions for compatibility with existing rack infrastructures. Its metal construction offers mechanical stability and electromagnetic shielding for mounted modules, and the modular front panel area simplifies installation and cable management. The enclosure is suitable for high-density arrangements where space efficiency and reliable mechanical support are required.

Suitable for

• Mounting plug-in electronic modules and single-board computers in a 2U rack space
• Industrial control cabinets and telecom equipment racks
• Test benches and measurement systems requiring modular assemblies
• Embedded systems and compact server applications

Key specifications

• Form factor: 2U rack enclosure
• Front width: 84TE (module width standard)
• Depth designation: 331T
• Material: robust metal construction for mechanical stability
• Intended use: mounting electronic modules and circuit boards

How to use

Install the chassis into a compatible rack unit occupying 2U of vertical space and align the 84TE front panel area with the rack rails. Mount plug-in modules or boards into the front panel locations according to the module mechanical specifications and secure them with the provided fasteners. Route power and signal cabling through the rear or side openings as required by the system design, ensuring connectors and cable lengths match the installed modules. Verify mechanical fastening and grounding before powering the system.

Usage recommendations

Choose modules that conform to the 84TE front width and the chassis depth when planning a configuration. Ensure adequate ventilation in the rack cabinet and observe equipment grounding and EMC practices. Use correct mounting hardware and follow manufacturer guidance for module retention and cable routing to maintain mechanical integrity and reliable electrical connections.
