Lifting Eye Kit M10 4pcs SCHROFF for rack accessories, M10 lifting eyes, set of 4

SCHROFF Lifting Eye Kit M10 (4 pcs) provides four threaded M10 lifting eyes designed to create secure attachment points on compatible racks, chassis and enclosures. The kit is intended to facilitate safe lifting and handling of heavy electronic equipment during installation, transport or maintenance, offering a compact and standardised solution for integrating hoisting points into existing hardware.

Advantages

The lifting eyes are manufactured to match common M10 thread dimensions, enabling straightforward installation into pre-threaded holes or appropriate nuts. Supplied as a set of four, the kit allows for balanced lifting and reduced torque on mounting points. The compact design minimises interference with other components when not in use and provides reliable load-bearing connection points for hoists, slings or shackles compatible with M10 fittings.

Suitable for

• Mounting on server racks and 19" chassis with M10 threaded points
• Temporary attachment for hoisting enclosures during installation or relocation
• Providing standardised lifting points for on-site service and maintenance
• Use with lifting gear (shackles, slings, hooks) rated for M10 connections

Key specifications

• Quantity: set of 4 lifting eyes
• Thread size: M10 (metric)
• Material: steel (plated or treated for corrosion resistance as per manufacturer standards)
• Design: threaded eye suitable for hoist and sling attachment
• Compatibility: intended for use with racks, chassis and enclosures that accept M10 threaded fittings

How to use

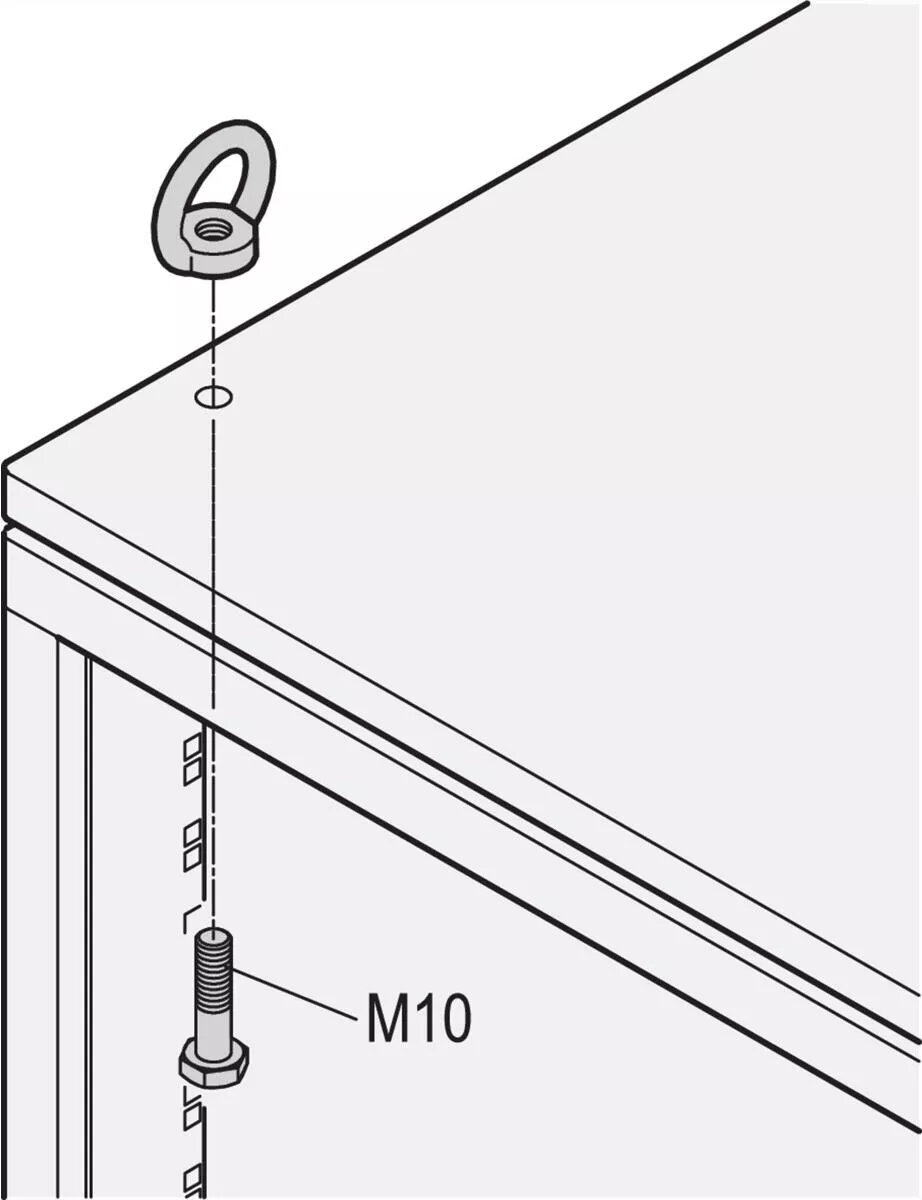

Identify M10 threaded attachment points on the rack or enclosure and ensure they are rated to accept lifting loads. Screw each lifting eye into the corresponding threaded hole or nut until fully seated and secure; avoid over-tightening. Attach appropriate lifting equipment such as shackles, slings or hooks to the eyes, ensuring the lifting gear is rated for the intended load and correctly inspected. Lift the enclosure with a balanced configuration using all required lifting points to minimise stress on the chassis and lifting hardware.

Usage recommendations

Verify the load rating of both the lifting eyes and the receiving structure before each use. Use all four lifting points for large or heavy enclosures to maintain balance. Regularly inspect threads and eye integrity for wear, corrosion or damage, and replace any component that shows signs of compromise. Follow site-specific safety procedures and applicable lifting standards when performing hoisting operations.
