Front panel 3U SCHROFF 84HP Hinged — 3U height, 84HP width, hinged design

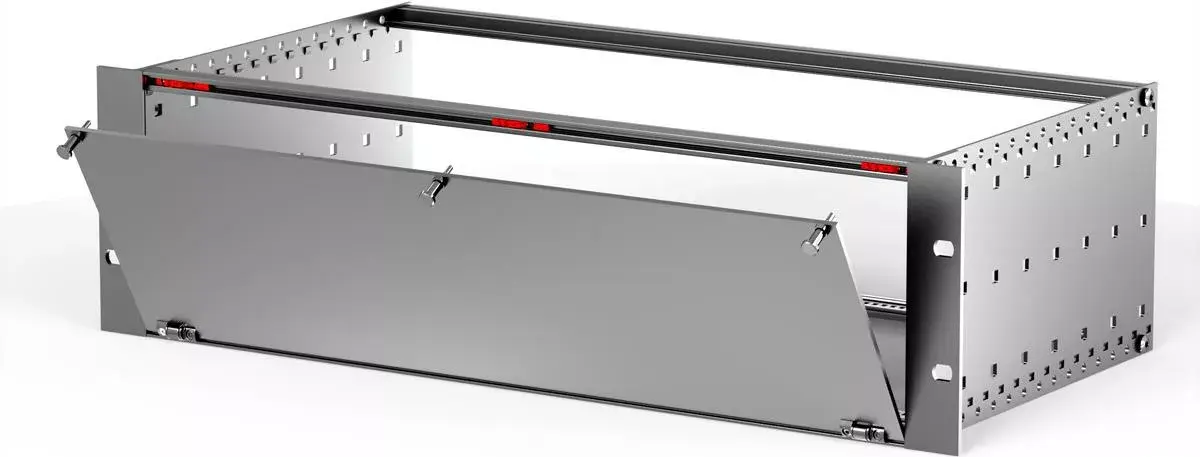

The SCHROFF Front Panel 3U 84HP Hinged is a hinged front panel designed for 3U rack or chassis installations with an 84HP width. It provides a secure, service-friendly front interface for industrial enclosures and electronics chassis where regular access to internal modules or connectors is required. The hinged construction allows the panel to open without full removal, simplifying inspection, cabling and module replacement while maintaining a neat front appearance when closed.

Advantages

The hinged design enables quick and safe access to internal components without detaching the panel, reducing downtime during maintenance. Its standardized 3U height and 84HP width ensure compatibility with modular rack systems and common chassis formats. The panel offers a stable mounting surface for controls, indicators or I/O connectors and helps protect internal assemblies from dust and accidental contact. The construction is suited for repeated opening cycles and for environments where organized front access is important.

Suitable for

• Industrial and telecom chassis requiring periodic service access
• Electronics enclosures with modular plug-in boards and front I/O
• Laboratory racks and test systems where quick inspection is needed
• Panels that require mounting of switches, indicators or connector panels

Key specifications

• Form factor: 3U height
• Width: 84HP (horizontal pitch units)
• Mounting style: hinged front panel for rack or chassis
• Access type: front hinge for tool-less opening (hinge operation dependent on installation)
• Typical use: protective front interface and mounting surface for connectors and controls

How to use

Install the hinged front panel into the front of the compatible 3U chassis or rack opening aligned to the 84HP mounting points, following the enclosure manufacturer's mounting guidance. Secure the panel at the hinge points and any fastening positions; ensure hinge movement is unobstructed. Once mounted, the panel can be opened to provide immediate access to internal modules, connectors and wiring for inspection, cabling or component replacement, then closed to restore the protective front surface.

Usage recommendations

For reliable operation, verify that the enclosure or rack supports 84HP width at 3U height and that the hinge orientation matches the intended service access. Avoid forcing the hinge; keep the hinge area free of cabling or obstructions. When mounting control elements or connectors to the panel, confirm clearances and torque requirements for fasteners suggested by the accessory manufacturers.
