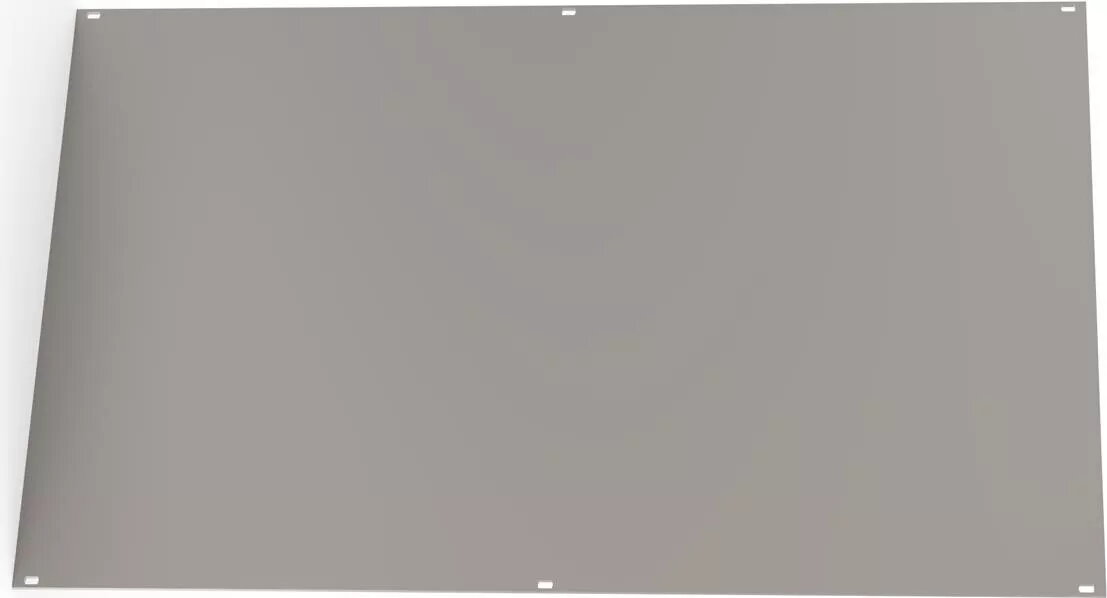

Front panel SCHROFF U-Profile Shielded U-FRONTPL.EMC 6HE 84TE for 19" rack, 6U, 84TE

Shielded SCHROFF front panel U-FRONTPL.EMC in U-profile design for 19" rack enclosures. This 6HE (6U) panel provides 84TE width and offers electromagnetic compatibility (EMC) protection by forming a grounded, conductive barrier on the front of a rack-mounted system. The panel is designed to fit standard 19" mounting and to integrate with industrial and telecom cabinets where front-side shielding and reliable mechanical support are required.

Advantages

The U-profile construction ensures continuous contact with adjacent panels and the rack frame to maintain an effective Faraday-style barrier against electromagnetic interference. Built for compatibility with 6U equipment and 84TE front width, the panel delivers mechanical stability, simple integration into standard 19" enclosures and improved EMC performance without altering internal component layouts. The metallic, grounded surface reduces emissions and susceptibility to external disturbances while preserving service access to the rack.

Suitable for

• Industrial control cabinets requiring front-side EMC shielding
• Telecommunications racks and network cabinets with 19" mounting
• Server or instrumentation installations needing a 6U front panel with 84TE width
• Applications where conductive front panels are used to reduce interference between adjacent modules

Key specifications

• Form factor: U-profile front panel
• Height: 6HE (6U)
• Width: 84TE usable front width
• Compatibility: Designed for standard 19" rack enclosures
• Function: Front-side electromagnetic shielding (EMC)
• Material/finish: conductive metallic front surface suitable for grounding (metallic construction)

How to use

Install the front panel into the 19" rack using standard mounting rails and fasteners consistent with 6U height and 84TE front spacing. Ensure the panel makes firm electrical contact with the rack frame or adjacent grounded panels to achieve effective EMC performance. Route grounding connections according to cabinet grounding practices and verify continuity after installation. The panel permits normal access to mounted modules while providing a conductive front barrier to limit emissions and susceptibility.

Usage recommendations

For optimum EMC performance, mount the panel alongside other shielded panels or conductive rails to ensure continuous contact and low-impedance grounding. Inspect mounting points for clean metal-to-metal contact and avoid insulating coatings at contact surfaces. Use recommended rack grounding practices when integrating into telecommunications or industrial installations.
