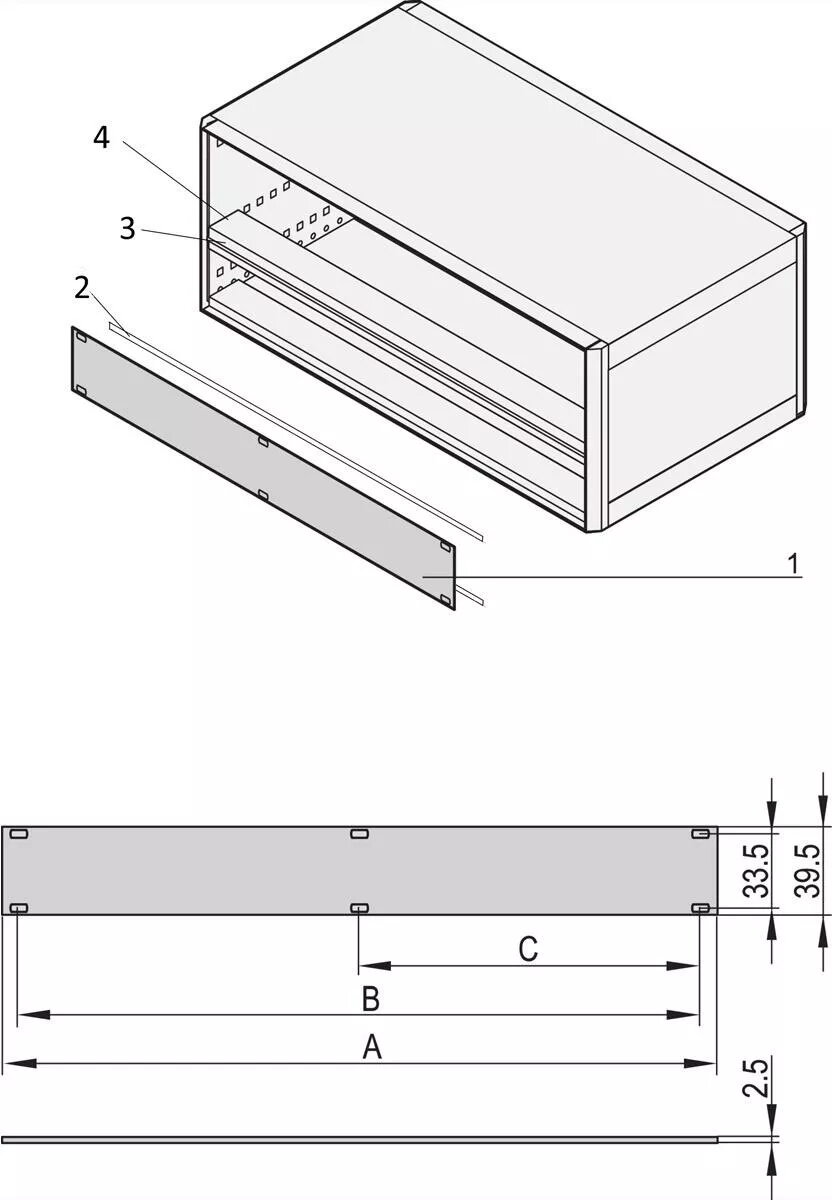

1U 84HP Front Panel for Rack, SCHROFF 20850426 — 84HP width, 1U height, metal

SCHROFF 1U 84HP front panel is a metal rack panel sized to occupy one rack unit (1U) with an 84HP width for 19-inch equipment racks. The panel provides a flat, robust face for installing compatible modules or for blanking off unused rack space. Its precision dimensions match industry panel-cut standards, ensuring alignment with neighboring rack components and secure fastening in standard front-mount rack rails.

Advantages

The metal construction delivers mechanical strength and resistance to deformation, supporting mounted modules and protecting internal equipment. The panel’s standard 84HP width and 1U height ensure compatibility with a wide range of modular components and rack-mounted systems. Finished edges and mounting holes aligned to rack conventions allow straightforward installation and a tidy front appearance. Corrosion-resistant surface treatment improves longevity in industrial and server-room environments.

Suitable for

• Covering unused rack space in 19-inch server and telecom racks
• Mounting front-access modules that conform to 84HP/1U mechanical dimensions
• Replacing damaged or missing front panels in industrial enclosures
• Creating a continuous front plane for airflow management and cable routing

Key specifications

• Panel width: 84HP (horizontal pitch units compatible with industry standard HP spacing)
• Panel height: 1U (standard rack unit height)
• Material: metal construction for rigidity and impact resistance
• Surface finish: corrosion-resistant coating for extended service life
• Mounting: front-mount hole pattern compatible with 19-inch rack rails
• Thickness: robust gauge suitable for structural support of mounted modules

How to use

Place the 1U 84HP front panel into the front mounting position of a 19-inch rack and align the mounting holes with the rack rail threads or cage nuts. Secure the panel using appropriate rack screws tightened evenly to avoid distortion. If installing modules into the panel, fit modules into the designated cutouts or retainers before final mounting. Ensure the panel sits flush with adjacent panels to maintain a continuous front surface and proper airflow paths.

Usage recommendations

For safe and reliable installation use the correct screw size for your rack system and avoid overtightening. Store and handle the metal panel using protective gloves to prevent surface scratches and to maintain the corrosion-resistant finish. When used in ventilated racks, position blanking panels to direct airflow through active equipment rather than around empty spaces.
