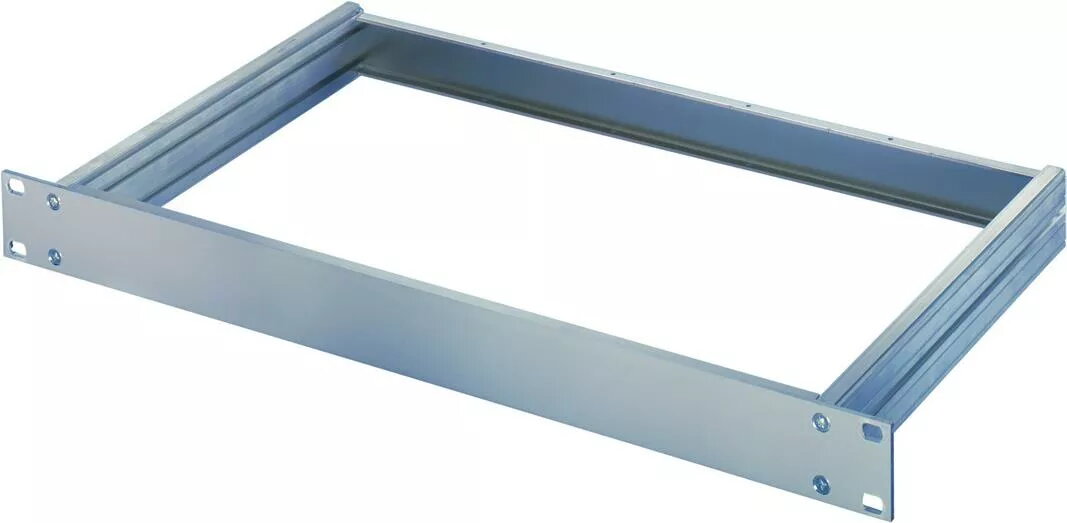

SCHROFF Multipac Base 2U Model 20860214 460T rack mounting base

SCHROFF Multipac Base 2U Model 20860214 460T rack mounting base is a 2U mounting platform intended for use in standard 19-inch enclosures. Designed to accept electronic modules and subracks, the unit provides a compact and standardized base for arranging components within server, telecommunication and industrial rack systems. The product supports mechanical mounting and contributes to organized cable routing and secure integration of installed equipment.

Advantages

The SCHROFF Multipac Base 2U offers a standardized 2U footprint compatible with 19-inch rack systems, enabling consistent placement of modules and subracks. Its design focuses on mechanical support and stable installation inside rack enclosures while facilitating tidy cable routing and component organization. The unit is suitable for environments where a compact, repeatable mounting solution is required for electronic assemblies.

Suitable for

• Mounting electronic modules and subracks in 19-inch racks
• Server and data center equipment organization
• Telecommunications rack installations
• Industrial rack-mounted control and measurement systems

Key specifications

• Form factor: 2U rack mounting base
• Compatibility: Standard 19-inch enclosures
• Primary functions: Mechanical support and component mounting
• Use case orientation: Intended for electronic modules and subracks

How to use

Install the SCHROFF Multipac Base 2U into a standard 19-inch enclosure at the desired rack position using appropriate rack fasteners. Secure electronic modules or subracks to the base following the mounting points and instructions provided by the module or subrack manufacturer. Route cables along available channels or recommended paths to maintain organized cabling and avoid strain on connectors. Verify mechanical stability and clearances before powering any installed equipment.

Usage recommendations

Use appropriate hardware matched to the rack and enclosure, and follow manufacturer guidelines for mounting torque and clearances. Ensure compatibility between the Multipac base and the modules or subracks being installed, and maintain adequate airflow and cable management in the rack for reliable operation.
