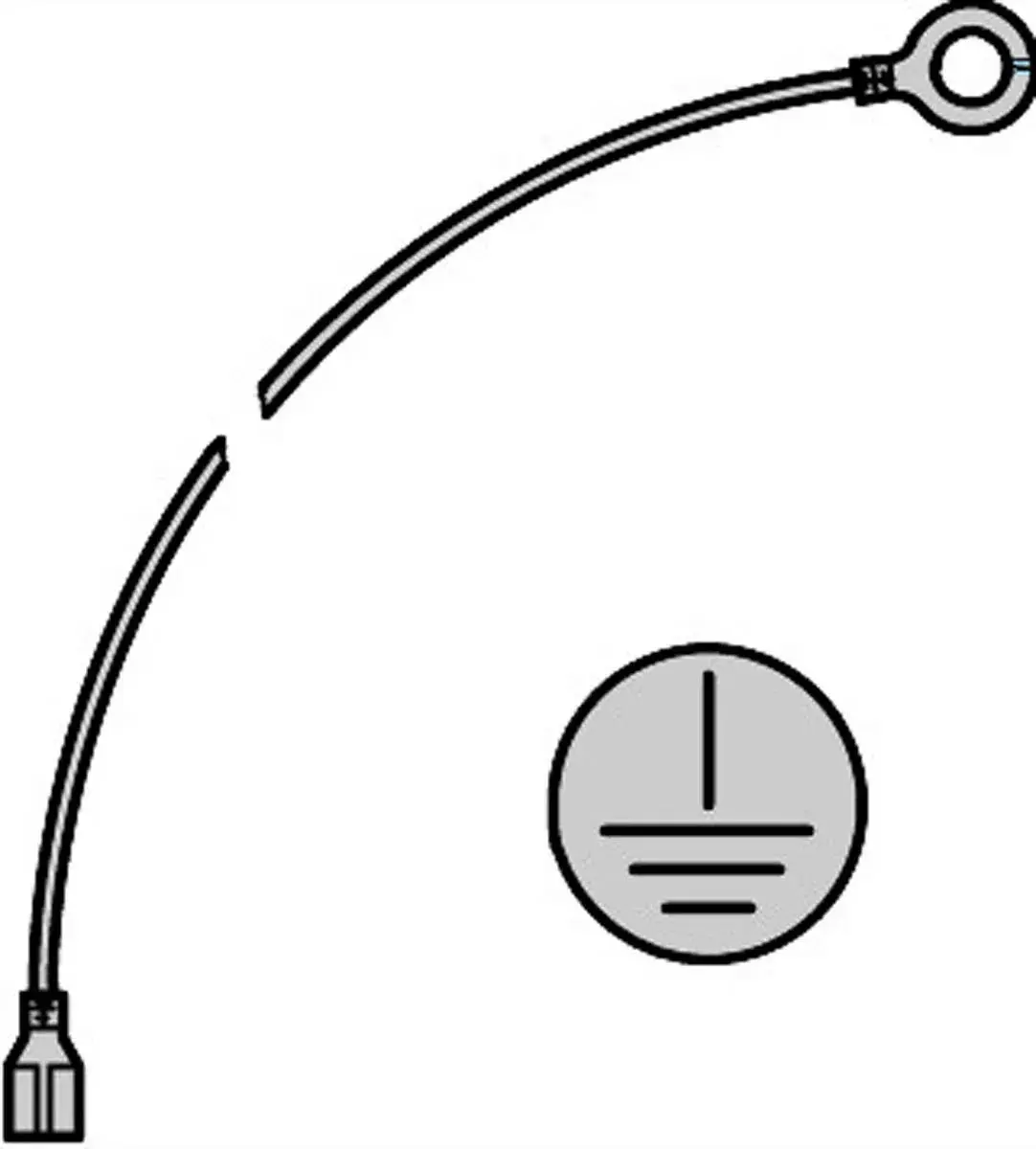

Rack earthing kit SCHROFF PROPAC PRO 21102001 — grounding accessory for server racks

Rack earthing kit SCHROFF PROPAC PRO 21102001 — grounding accessory for server racks is a purpose-built solution that provides a dedicated earth connection point for equipment and enclosures. Designed for installation in server racks, telecom cabinets and industrial enclosures, the kit helps reduce electromagnetic interference and supports safe operation of rack-mounted electronics by ensuring an effective protective earth path between rack structure and building grounding.

Advantages

The earthing kit offers a robust metal connection that limits potential differences between installed devices and the rack frame, helping to prevent electrical noise and to improve EMC performance. It is compact and engineered for straightforward integration into standard rack profiles. The design prioritizes mechanical stability and corrosion resistance to maintain a reliable earth connection over time.

Suitable for

• Server racks and data center cabinets
• Telecommunications cabinets and network enclosures
• Industrial control panels and equipment racks
• Retrofit grounding in existing rack installations

Key specifications

• Function: provides a secure protective earth connection for rack structures and mounted equipment
• Material: conductive metal components designed for mechanical strength and electrical conductivity
• Compatibility: fits standard 19-inch rack profiles and common enclosure frame types used in data centers and telecom cabinets
• Mounting: designed for fixed attachment to rack frame elements to establish a low-resistance earth path
• Environmental: suitable for indoor use within controlled data center and telecom environments

How to use

Install the earthing kit by fastening its conductive parts to the rack frame at a recommended grounding point, ensuring tight mechanical and electrical contact. Connect the kit’s earth conductor to the building grounding system or main protective earth bus using an appropriate gauge grounding conductor and approved connectors. Verify continuity and low resistance between the rack frame and building earth with a suitable tester after installation. Follow local electrical codes and site grounding plans when routing and securing the conductor.

Usage recommendations

Use corrosion-resistant fasteners and maintain clean contact surfaces to ensure long-term low-resistance connections. Periodically inspect the connection for tightness and corrosion, and re-test earth continuity after significant rack changes or maintenance.
