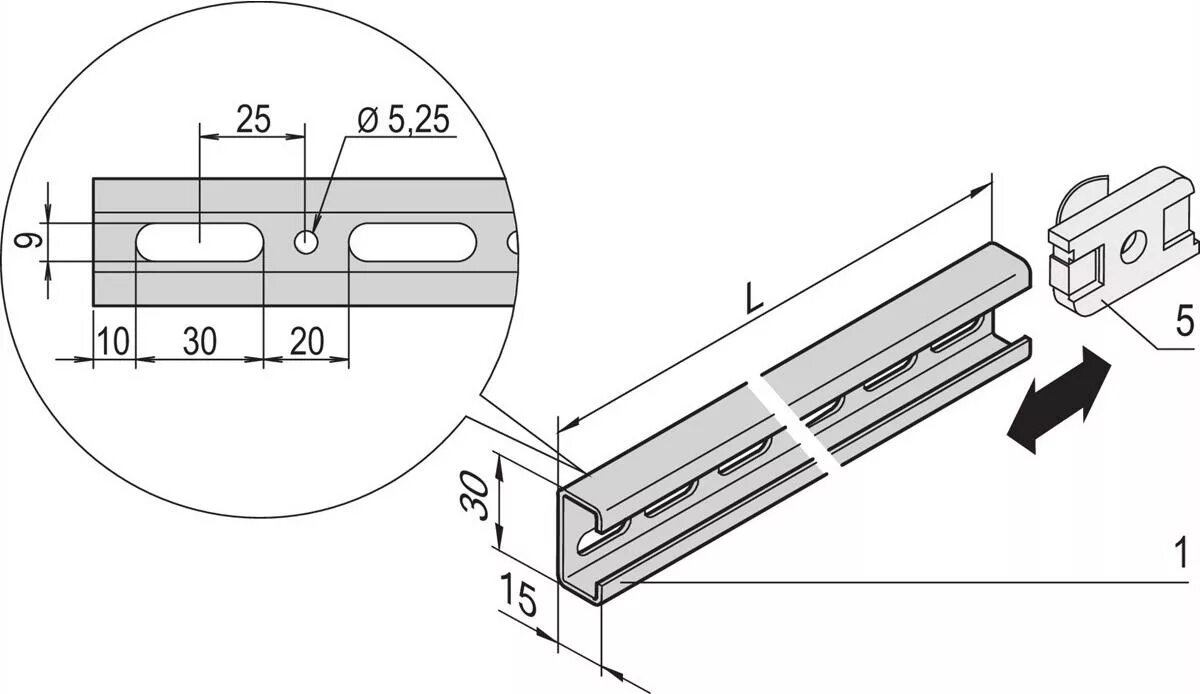

Rack accessory SCHROFF C-RAIL for 600 mm wide cabinet, depth 450 mm, set of 4

Schroff C-RAIL for 600 mm wide cabinets with 450 mm usable depth is a set of four rack rails designed to provide internal support and alignment for rack-mounted equipment. The rails fit standard 19-inch mounting configurations inside server or network cabinets with a 600 mm outer width and a 450 mm usable depth, enabling secure placement and guidance of servers, switches and other hardware. Supplied as a set of four, this accessory is intended to improve structural stability and simplify installation of equipment within constrained depth cabinets.

Advantages

The Schroff C-RAIL set offers precise alignment for 19-inch equipment and contributes to even load distribution across the cabinet frame. Manufactured to match common cabinet dimensions, the rails reduce lateral movement of installed devices and help maintain ventilation pathways by keeping components properly positioned. Being a set of four, the accessory supports both front and rear mounting points and can be used to stabilize longer or heavier modules.

Suitable for

• Mounting 19-inch servers and blade enclosures in 600 mm wide cabinets
• Securing network switches, patch panels and power distribution units with 450 mm usable depth
• Retrofitting older cabinets to improve internal support and equipment alignment
• Stabilizing IT equipment during maintenance or transport within a cabinet

Key specifications

• Fitment: for cabinets with 600 mm outer width and 450 mm usable depth
• Quantity: set of four rails for front and rear support
• Compatibility: suitable for 19-inch rack-mounted devices
• Function: internal support, alignment and stabilization of mounted equipment

How to use

Install the rails inside the cabinet by aligning them with the 19-inch mounting profiles at the front and rear positions corresponding to the desired usable depth. Fasten each rail to the cabinet frame using appropriate screws or fasteners compatible with the cabinet’s mounting holes. Position equipment on the rails and secure devices to the mounting points according to the device manufacturer’s instructions. Verify alignment and load distribution after installation and adjust rail positions if necessary to ensure proper ventilation and access.

Usage recommendations

Use compatible fasteners and follow weight limits specified by the cabinet manufacturer. When mounting heavy equipment, distribute weight across multiple rails and verify that airflow is not obstructed. For transport or relocation, recheck all attachments and add additional support if needed.
