Rack shelf SCHROFF 19" extendable 2U depth 500 mm model 22130352

19" SCHROFF rack shelf extendable 2U depth 500 mm model 22130352 provides a stable, metal platform for mounting equipment, tools or peripherals in standard 19‑inch racks and enclosures. The product combines a 2U height profile with an extendable design and a nominal 500 mm depth to allow access to devices installed toward the rear of the shelf while maintaining secure support inside server rooms, network cabinets and industrial racks.

Advantages

The SCHROFF 19" extendable shelf features a robust metal construction that ensures durable load support and reliable performance in professional environments. Its extendable mechanism enables easier access to mounted equipment for maintenance and cabling without full removal from the rack. The 2U form factor optimizes vertical rack space, and the 500 mm depth accommodates a wide range of peripherals, power supplies and test instruments while keeping installation straightforward and repeatable.

Suitable for

• Mounting non-rack-mountable servers, power supplies and peripherals in 19" racks
• Temporary placement of test equipment and tools in server rooms and labs
• Support for network appliances, patch panels and small UPS units
• Industrial control and measurement devices requiring a secure shelf inside cabinets

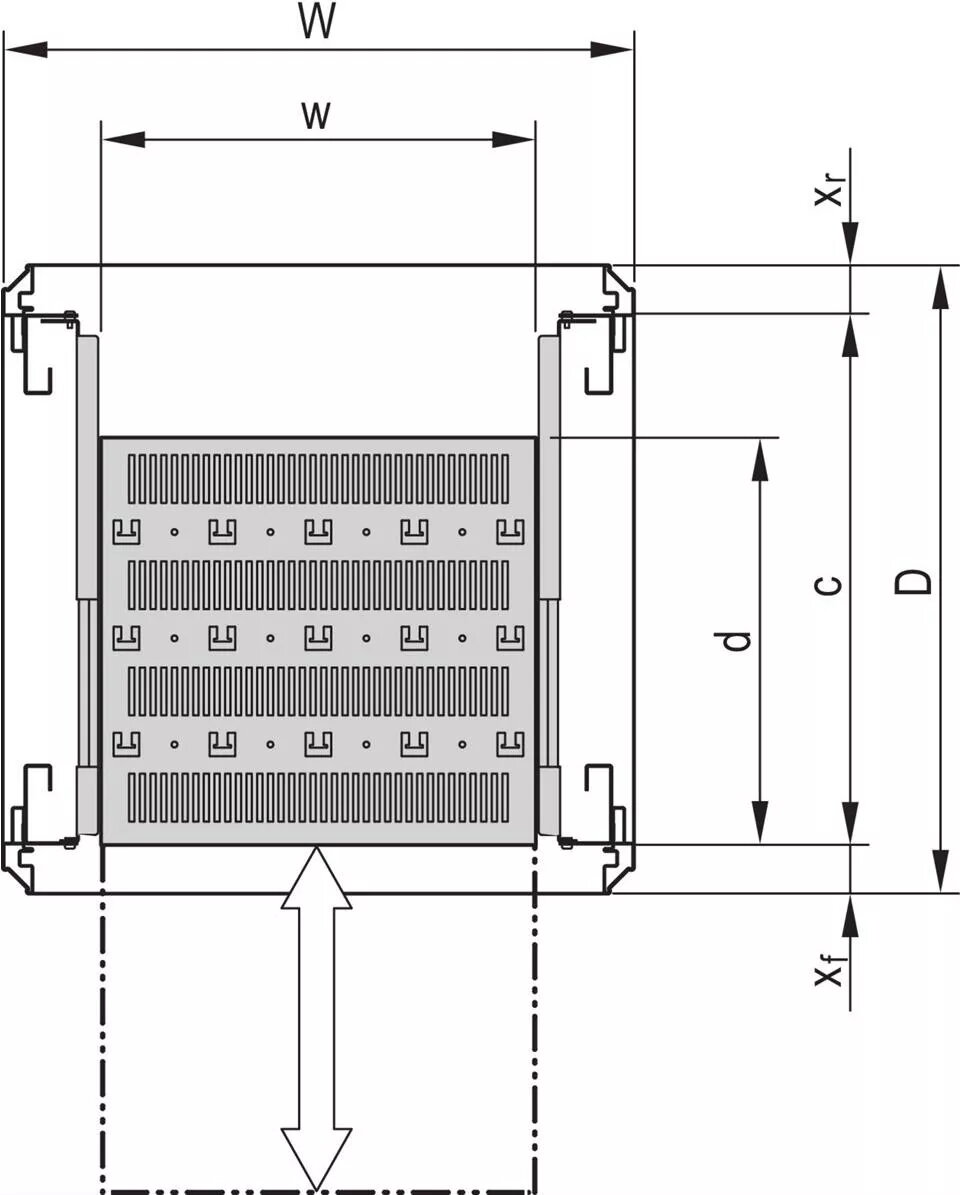

Key specifications

• Form factor: 2U height for standard 19" rack mounting
• Depth: 500 mm nominal usable depth
• Design: extendable slide/shelf configuration for rear access
• Material: metal construction for durability and load support
• Compatibility: fits standard 19" racks and enclosures

How to use

Install the shelf into the desired 2U space in a 19" rack by aligning the mounting holes with the rack posts and fastening with appropriate rack screws or hardware. Extend the shelf when access to rear-mounted devices or cabling is required; retract it to secure equipment during normal operation. Ensure that equipment weight is distributed evenly across the shelf and that the extendable mechanism is locked or supported as recommended by the rack layout to prevent unintentional movement.

Usage recommendations

Verify rack mounting hardware compatibility and torque specifications before installation. Do not exceed the load capacity indicated by the rack or shelf manufacturer; distribute weight evenly and avoid placing heavy point loads near the extended front edge. For frequent maintenance, allow sufficient clearance in the cabinet to fully extend the shelf and route cables to avoid strain.
