19" angle profile SCHROFF 23130022 for 19-inch racks, universal hole pattern, RAL 7035

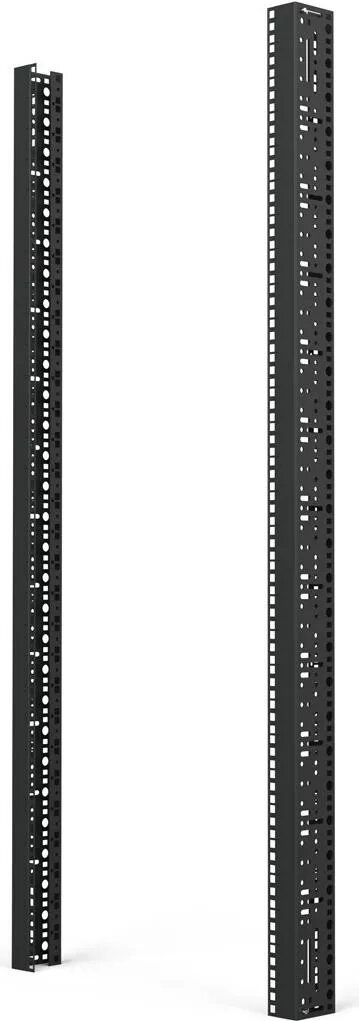

19" angle profile SCHROFF 23130022 for 19-inch racks, finished in RAL 7035, is a mounting profile designed to support and organise rack-mounted equipment in standard 19" enclosures. The profile incorporates a universal hole pattern to allow flexible positioning of rails, shelves, patch panels and other accessories while maintaining compatibility with common rack hardware. Its robust construction provides secure fastening and alignment for server room, network cabinet and industrial applications where precise mounting and load distribution are required.

Advantages

The angle profile offers a consistent mounting interface with a universal hole pattern that simplifies installation across different devices and accessories. Finished in RAL 7035, the surface resists corrosion and provides a neutral appearance that integrates with most rack interiors. The design ensures accurate alignment and stable fastening, reducing installation time and the need for custom drilling or adapters. Its standard 19" form factor guarantees compatibility with industry-standard racks and enclosures.

Suitable for

• Mounting servers, switches and patch panels in 19" racks
• Installing shelves, cable management accessories and sliding rails
• Use in network cabinets, telecom racks and industrial enclosures
• Retrofits and upgrades where a universal hole pattern simplifies equipment placement

Key specifications

• Form factor: 19-inch angle profile suitable for standard 19" racks
• Finish: powder-coated, RAL 7035 (light grey)
• Hole pattern: universal hole pattern for flexible accessory mounting
• Material: steel construction for mechanical strength and load support
• Mounting: designed for front installation in 19" enclosures with standard rack spacing

How to use

Position the angle profile inside the 19" rack or cabinet at the desired mounting height and align the universal hole pattern with the rack's mounting points. Secure the profile using appropriate rack fasteners or screws compatible with standard 19" equipment. Attach rails, shelves or other accessories to the profile by matching the accessory mounting holes to the profile's hole pattern and tightening fasteners to the specified torque. Verify alignment and stability before installing heavy equipment and follow the rack manufacturer's load distribution guidelines to avoid overloading a single profile.

Usage recommendations

For safe and reliable installation, use hardware compatible with standard 19" racks and observe weight limits of the cabinet. When installing heavy servers or storage units, mount equipment across multiple support points and follow grounding and earthing practices appropriate for your installation environment.
