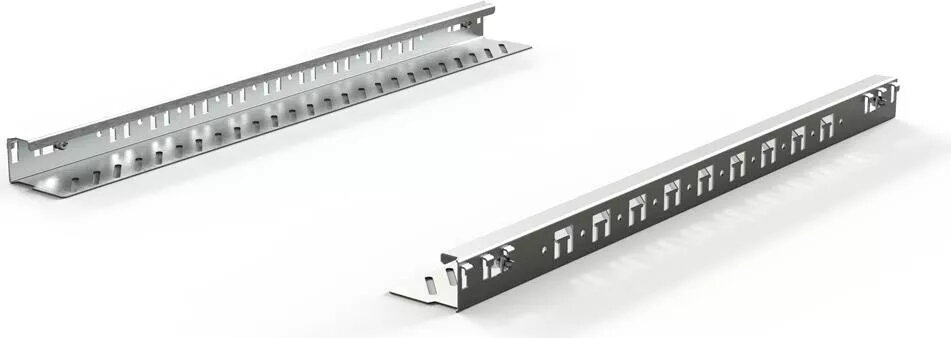

Rack slide rail accessory SCHROFF 800D, set of 2, model 23130097

Set of two SCHROFF 800D slide rail rack accessories, model 23130097, designed to provide lateral support and guided movement for equipment installed in compatible server and network racks. These slide rails facilitate safe mounting and simplified access for maintenance by allowing controlled extension and retraction of mounted chassis or modules. The accessory set is intended for use where SCHROFF 800D-compatible rails are specified and where stable guided movement is required during installation and servicing.

Advantages

These SCHROFF 800D slide rails deliver precise lateral guidance and reduce strain on mounted equipment by ensuring smooth extension and retraction. The set of two rails provides balanced support across the chassis width, improving stability during insertion and removal. The robust construction and compatibility with standard rack dimensions support reliable, repeatable mounting operations and reduce the risk of misalignment or accidental disengagement during servicing.

Suitable for

• Mounting 1U–4U server blades or chassis that fit SCHROFF 800D rail systems
• Network appliances and storage units requiring guided slide access for maintenance
• Data center racks and telecommunications cabinets where stable lateral support is needed
• Workshops or test benches that use rack-mounted equipment for diagnostics and repair

Key specifications

• Quantity: set of two matching slide rails
• Compatibility: engineered for SCHROFF 800D rack rail systems and compatible enclosures
• Function: guided lateral sliding support for equipment installation and maintenance
• Material and finish: durable metal construction with corrosion-resistant surface treatment suitable for rack environments
• Mounting: designed for standard rack mounting points and guided attachment to compatible chassis

How to use

Attach each rail to the corresponding side of the rack and to the device chassis following the rack and chassis alignment. Ensure both rails are mounted at the same height and securely fastened to provide even support. After installation, verify smooth extension and retraction of the chassis and confirm that locking or retention features engage as intended. Regularly inspect attachment points and guide surfaces for wear or debris and correct any misalignment before placing equipment into active service.

Usage recommendations

Use the SCHROFF 800D slide rails in compatible racks only and follow the rack manufacturer's weight and size limits for mounted equipment. Periodically clean guide surfaces and check fasteners to maintain smooth operation; if signs of excessive wear or deformation appear, replace the rails to avoid damage to mounted devices.
