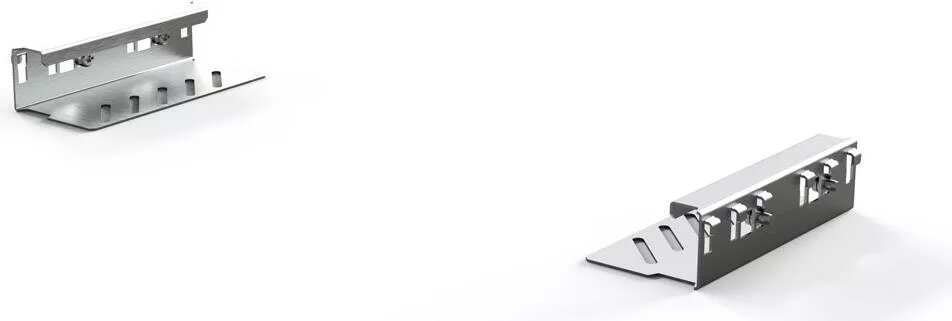

Sliding rail SCHROFF 23130099, load capacity 25 kg, set of 2 pieces

Pair of SCHROFF sliding rails model 23130099 designed for mounting equipment in standard rack or cabinet environments. Each rail provides a rated load capacity of 25 kg and the set includes two matching rails for mounting one device. The rails enable controlled front-to-back movement to aid installation, service access and extraction of servers, drawer modules or other rack-mounted devices where moderate load support is required.

Advantages

These SCHROFF sliding rails offer a compact, robust solution for supporting and guiding rack-mounted equipment. The metal construction and precision sliding mechanism provide reliable, repeatable movement and help reduce stress on mounting points during insertion and removal. Supplied as a matched pair, the rails simplify alignment and ensure even weight distribution across the mounting points.

Suitable for

• Mounting 19" rack servers and network devices with moderate weight
• Drawer modules, storage units and slide-out shelves in server cabinets
• Maintenance and service access where equipment needs to be pulled out partially or fully
• Industrial cabinets and telecom racks requiring guided sliding support

Key specifications

• Load capacity per rail set: supports equipment up to 25 kg
• Quantity: set of 2 matching rails
• Intended mounting: rack or cabinet installation for front-to-back sliding
• Function: guided sliding mechanism for insertion/extraction of equipment
• Construction: metal rails with precision sliding components

How to use

Install the pair of rails according to the cabinet or rack mounting points, ensuring both rails are aligned and securely fastened. Mount the device onto the rails and verify smooth travel along the sliding mechanism. Use the rails to pull the equipment out for service access or to push it back into the rack; avoid sudden shocks or impacts while moving loaded equipment. Periodically check fasteners and rail alignment and service lubrication points if present to maintain smooth operation.

Usage recommendations

Confirm that the installed device weight does not exceed the specified 25 kg capacity and distribute weight evenly between the two rails. For safety, verify compatibility with your rack depth and mounting pattern before installation. Inspect rails for wear and clean sliding interfaces when performance degrades.
