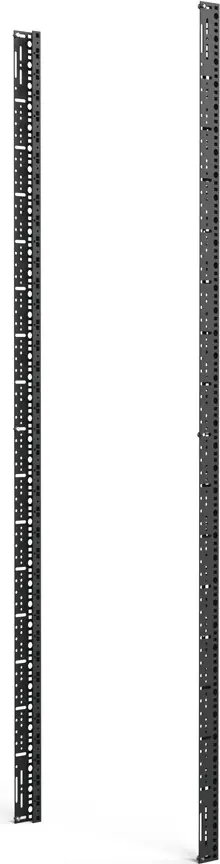

Rack Adaptation Angle SCHROFF ADAPTIONSWINK 38HE 7021 2ST for 38U enclosures, metal mounting bracket

Adaptation angle SCHROFF ADAPTIONSWINK 38HE 7021 2ST is a metal mounting bracket designed to fit equipment into 38U (38HE) server and network enclosures. The bracket provides an angled mounting solution that helps align devices with rack profiles, allowing secure fixation of hardware where standard straight mounting is not suitable. Constructed for use in data centres, telecom racks and industrial cabinets, the adapter supports organized installation and improved cable routing within the enclosure.

Advantages

The metal construction ensures robust mechanical strength and long service life under standard rack operating conditions. Its angle design allows flexible positioning of equipment, reducing stress on cables and connectors by improving access and routing paths. The bracket is compatible with 38U (38HE) racks and enables mounting of non-standard devices or composite assemblies without permanent modification to the enclosure.

Suitable for

• Installing servers or network devices that require angled or offset mounting in 38U racks
• Retrofitting equipment into telecom or data centre racks where straight rails cannot be used
• Industrial cabinet installations that need adapted mounting points for custom hardware

Key specifications

• Form factor: angle mounting bracket for 38U (38HE) enclosures
• Material: metal construction for mechanical strength
• Compatibility: designed for use with 38U (38HE) rack enclosures and standard rack mounting positions
• Function: provides angled/offset mounting to improve device alignment and cable routing
• Application environments: data centres, telecom racks, industrial cabinets

How to use

Install the SCHROFF adaptation angle by aligning the bracket with the standard mounting holes or rail positions inside the 38U enclosure. Secure the bracket using appropriate rack screws or fasteners compatible with the rack and device; ensure all fasteners are tightened to provide stable support. Position the equipment onto the adapted mounting plane and attach it to the bracket, checking that connectors and cables are accessible and properly routed to avoid strain.

Usage recommendations

Verify compatibility with your specific 38U enclosure model and the fixation hardware required before installation. Use suitable screw types and torque values recommended for rack equipment to avoid damage. When installing in high-density or critical environments, plan cable routing and airflow to maintain cooling efficiency and service access.
