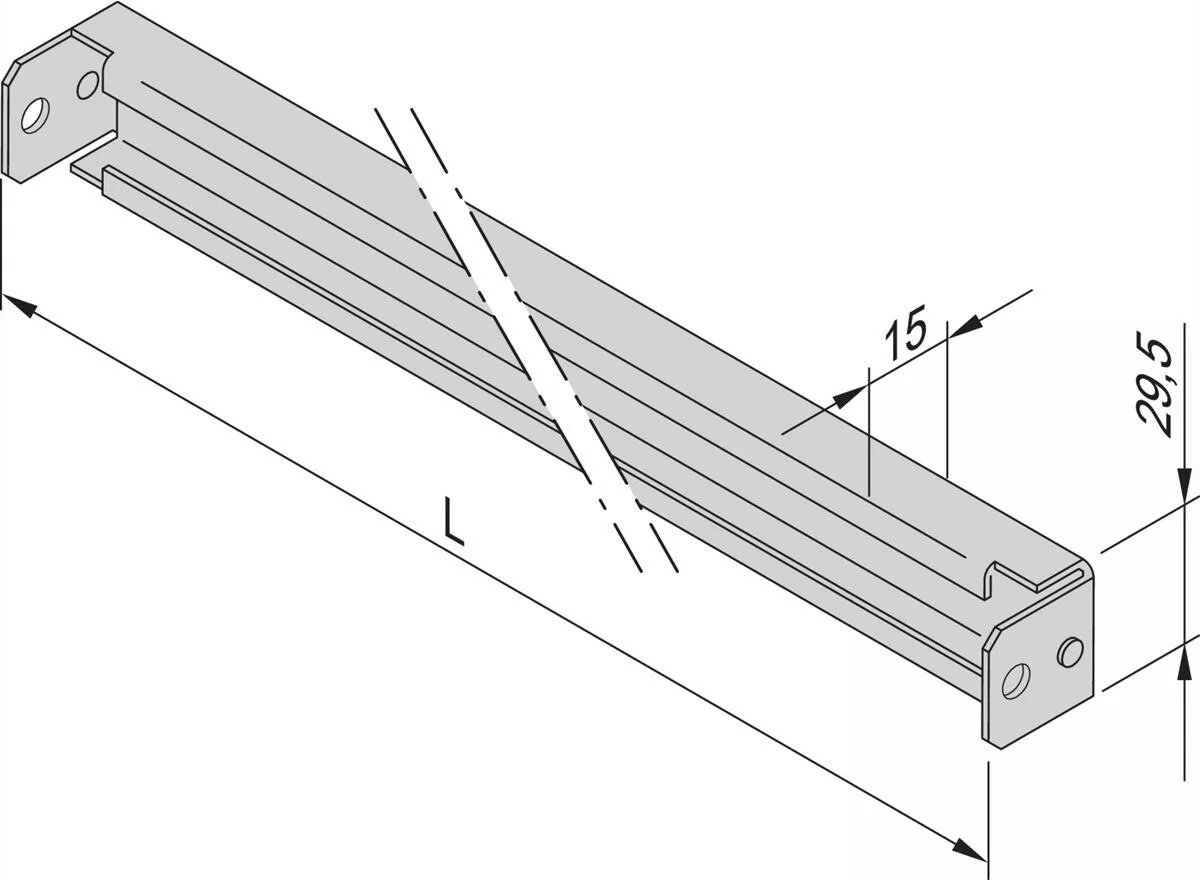

SCHROFF C-RAIL 600 LG (2x) mounting rail for rack systems, model 23130333

SCHROFF C-RAIL 600 LG (2x) mounting rail is a pair of steel rails engineered for installation in 19-inch rack systems to support server and electronic components. Designed to fit standard rack enclosures, the rails provide a stable mounting surface and alignment for trays, subracks, and other rack-mountable hardware. These mounting rails are intended for use where reliable structural support and repeatable positioning are required during equipment installation, replacement, or upgrade.

Advantages

The pair of SCHROFF C-RAIL 600 LG rails offers consistent mechanical support and alignment across the depth of a standard 19-inch enclosure, helping to reduce installation time and minimize positional drift of mounted equipment. Constructed from durable material suitable for rack environments, the rails are compatible with common SCHROFF rack accessories and mounting patterns, enabling straightforward integration into existing systems without extensive modification.

Suitable for

• Mounting server blades, subracks, and electronic modules in 19-inch enclosures
• Replacing worn or damaged rails during rack maintenance
• Upgrading internal rack layouts to accommodate new equipment depths
• Providing extra support for heavy modules or components in datacenter racks

Key specifications

• Pair of mounting rails designed for 19-inch rack systems
• Rail length compatible with 600 mm depth mounting (standard rack depth alignment)
• Material: robust metal construction suitable for server rack environments
• Finish: corrosion-resistant surface treatment for durability in equipment racks
• Compatibility: intended to align with SCHROFF rack mounting patterns and accessories

How to use

Install the SCHROFF C-RAIL 600 LG pair by positioning the rails inside the 19-inch enclosure at the required mounting depth, aligning holes and mounting points with the rack’s vertical posts or mounting channels. Secure each rail with appropriate fasteners compatible with the enclosure and the rail’s mounting pattern. After fastening, mount equipment onto the rails according to the equipment manufacturer’s instructions, ensuring load is distributed evenly across both rails to maintain stable positioning.

Usage recommendations

Verify rack depth and mounting hole pattern before installation to ensure correct alignment. Use recommended fasteners and torque values for the enclosure type, and check load ratings for both the rails and the rack to prevent overloading. Periodically inspect rail attachment points and fasteners during maintenance to preserve structural integrity.
