19" rack bracket SCHROFF 24560299, 4U universal mounting bracket

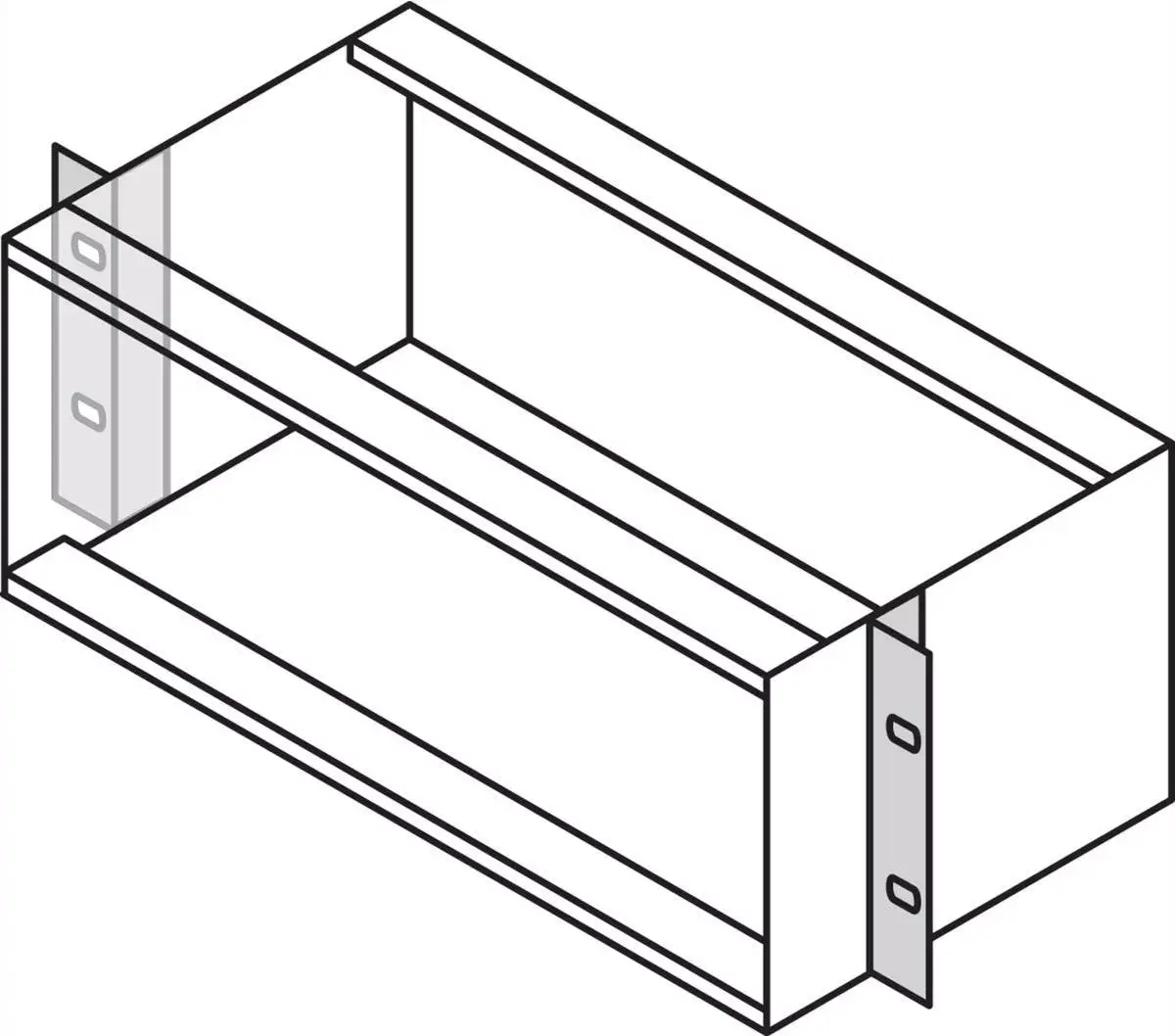

19" rack bracket SCHROFF 24560299, 4U universal mounting bracket is a metal mounting solution designed to install equipment in standard 19-inch racks. The bracket occupies 4U of vertical rack space and provides stable attachment points for servers, network units and accessories that require a 4U mounting height. It is intended for use in data centers, telecom cabinets and industrial enclosures where standardised rack mounting is required.

Advantages

The bracket offers a universal 4U form factor that fits standard 19" rack rails, enabling straightforward installation of different types of equipment without custom modifications. Constructed from robust metal, it ensures mechanical stability and reliable support for mounted devices. The design supports standard rack spacing and simplifies equipment arrangement, helping maintain clear rack organisation and easier access for maintenance.

Suitable for

• Mounting 4U servers and network appliances in 19" racks
• Installing power distribution units or specialised instrumentation that require 4U space
• Use in telecom cabinets, data center racks and industrial enclosures
• Retrofit or new rack installations where universal mounting points are needed

Key specifications

• Form factor: 4U rack-mount bracket for 19" racks
• Compatibility: accepts devices sized for 4U height in standard 19" rack systems
• Material: metal construction designed for mechanical strength
• Finish: industrial coating for corrosion resistance in typical IT environments
• Mounting: standard front and/or rear rail attachment points for secure fixing

How to use

Position the 4U bracket against the front rail of a standard 19" rack aligned with the desired vertical position. Secure the bracket using compatible rack screws and cage nuts or threaded rail fasteners as provided by the rack manufacturer. After fastening the bracket to the rack rails, install the equipment onto the bracket using appropriate screws and ensure even support across mounting points. Verify that the installed device is level and that all fasteners are tightened to prevent movement during operation.

Usage recommendations

For safe installation, confirm rack rail type and thread specifications before mounting and use the correct screw and nut combination. Distribute weight evenly across the bracket and adjacent rack units when installing heavy equipment. If used in environments with high humidity or dust, consider additional protection or placement in a sealed enclosure to prolong service life.
