Rack accessory SCHROFF SUBR H W.HDL 3U 84HP 235D SL – 3U, 84HP, 235 mm depth

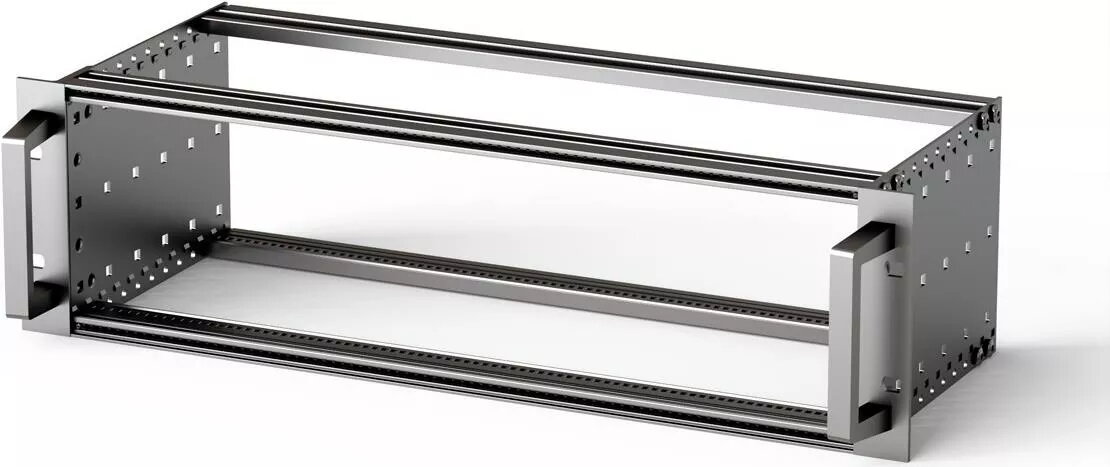

SCHROFF SUBR H W.HDL 3U 84HP 235D SL is a rack accessory designed for 19-inch equipment racks. It provides a 3U mounting space with a front width of 84HP and a depth of 235 mm, enabling installation of modules and components in server, instrumentation or communication racks. The accessory conforms to standard rack heights and widths to ensure compatible, secure mounting and to support an organized equipment layout.

Advantages

The product offers a standardized 3U height and 84HP front width, simplifying integration with other 19-inch rack components. With a 235 mm depth it accommodates shallow modules and front-mounted assemblies while reducing rear clearance requirements. The SCHROFF design focuses on precise fit and alignment in modular rack systems, helping maintain orderly cable routing and predictable mounting positions.

Suitable for

• Mounting 3U modular electronics or instrumentation in 19-inch racks
• Shallow-depth modules and front-access assemblies
• Laboratory equipment, test systems and communication panels requiring 84HP width

Key specifications

• Rack form factor: 19-inch compatible accessory
• Height: 3U
• Front width: 84HP
• Depth: 235 mm
• Mounting orientation: front rack mount

How to use

Install the SCHROFF SUBR H W.HDL 3U 84HP 235D SL into a compatible 19-inch rack by aligning the accessory with the rack mounting rails at the required 3U position. Secure the accessory using appropriate rack screws or fasteners into the rack’s threaded or square-hole rails. After securing the accessory, mount modules or components to the front panel area within the 84HP width and verify that the 235 mm depth is compatible with rear clearance and cable routing. Ensure all fasteners are tightened to provide stable mounting and prevent movement during service.

Usage recommendations

Confirm the rack’s available depth and front rail spacing before installation, and use the recommended rack hardware for 19-inch systems. For components with greater depth or additional rear connectors, verify extra clearance is available beyond the 235 mm accessory depth.
