Guide rail SCHROFF 24568362, red, 22 cm — pack of 10

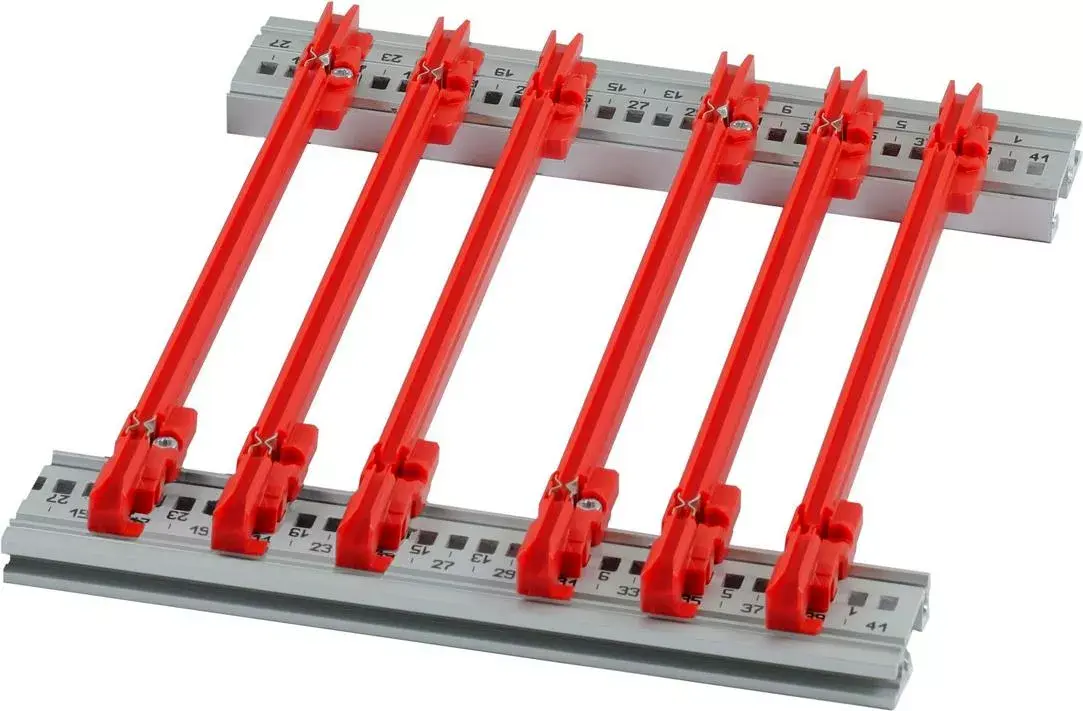

Pack of 10 SCHROFF guide rails in red, each 22 cm long, designed for mounting and guiding electronic modules and components in racks, chassis and enclosures. These guide rails provide repeatable alignment and secure positioning to simplify installation and maintenance of server and electronics assemblies. The set of ten identical rails is intended for system builders and technicians who require multiple matching parts for assembly, replacement or inventory stock.

Advantages

The rails are produced to consistent dimensions to ensure uniform guidance and fit across modules and panels. Their red finish makes visual identification easier during installation and inventory management. A 22 cm length offers compatibility with common compact chassis and subracks, and the pack quantity of ten supports multi-unit builds or bulk replacements. Construction emphasizes stability and reliable positioning when inserting or removing modules.

Suitable for

• Mounting and guiding server blades, plug-in boards and electronic modules
• Assembly and repair of chassis, subracks and 19" enclosures
• Field service and on-site equipment replacement where multiple identical parts are needed
• Stocking spare parts for system integrators and service centers

Key specifications

• Quantity in pack: 10 guide rails
• Color: red
• Length: 22 cm
• Intended application: module guidance and positioning in racks, chassis and enclosures
• Typical materials and finish: durable coated metal or composite suitable for mechanical guidance

How to use

Install the guide rails in the chassis or rack according to the equipment manufacturer's mounting points and alignment features. Ensure each rail is secured at both ends or at recommended attachment points to maintain straightness and prevent rotation. Slide modules or boards along the rails, observing connector alignment and mounting tolerances to avoid interference. For replacement, remove fasteners holding the old rails, transfer any alignment clips or retaining hardware, and fit the new rails in the same orientation.

Usage recommendations

Check compatibility with the target enclosure and module before installation. Use appropriate torque for fasteners to avoid deforming the rails or chassis. When working with multiple units, label or photograph rail positions to ensure consistent reassembly. Store unused rails in a dry, dust-free environment to prevent corrosion or surface damage.
