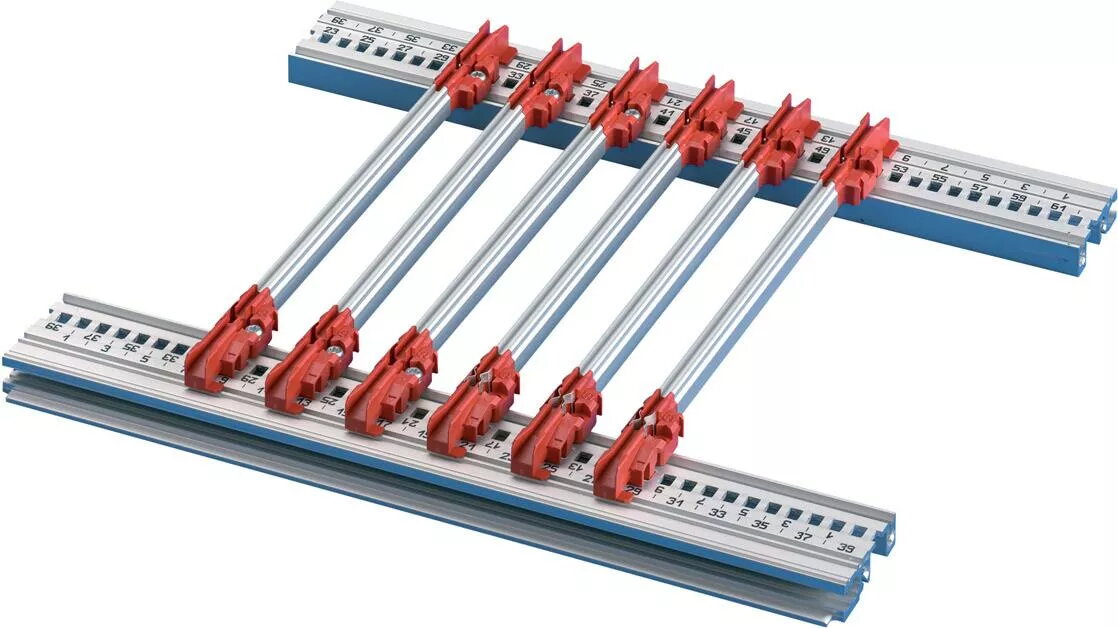

Guide rail SCHROFF UNI 280T 2 mm, pack of 10, model 24568379

SCHROFF Guide Rail UNI 280T 2 mm, pack of 10 (model 24568379) is a set of slim, uniform guide rails designed for mounting electronic modules and components in rack systems and enclosures. Each rail has a 2 mm thickness and a standardized profile that ensures consistent spacing and reliable alignment when installing subracks, card cages or other modular equipment in server cabinets and industrial racks. The pack contains ten identical rails suitable for parallel mounting runs and replacements in systems that use the UNI 280T profile.

Advantages

The rails offer a precise, uniform profile that maintains module alignment and spacing across multiple mounting positions. Their 2 mm material thickness balances rigidity and space efficiency, providing secure support without occupying excessive rack depth. Supplied in a pack of ten, the set simplifies bulk installations and spare-part management, ensuring identical components for repeatable assembly. The design is compatible with standard rack and enclosure mounting practices used for server, telecom and industrial electronics.

Suitable for

• Mounting subracks and card cages in 19" server cabinets
• Component alignment in electronics enclosures and control cabinets
• Replacement or expansion of existing UNI 280T guided mounting systems
• Industrial rack installations where uniform spacing and repeatability are required

Key specifications

• Profile type: UNI 280T standardized guide rail profile
• Material thickness: 2 mm
• Quantity: pack of 10 identical rails
• Primary application: equipment mounting and module guidance in racks and enclosures
• Compatibility: designed for subracks, card cages and modular components requiring consistent spacing

How to use

Install the guide rails by aligning the UNI 280T profile with the corresponding mounting points in the rack or enclosure. Secure each rail using appropriate fasteners and mounting hardware compatible with the cabinet or subrack system. Verify parallel alignment across the mounting plane before inserting modules or card cages, and use the full set of rails to maintain consistent spacing for each unit. Replace individual rails from the pack as needed to restore original alignment or to extend an existing mounting run.

Usage recommendations

Use fasteners and mounting hardware recommended for the target cabinet or subrack to ensure mechanical stability. When installing multiple rails, measure and confirm alignment across the entire mounting depth to avoid binding of modules. Store unused rails in original packaging to protect profile edges and maintain dimensional integrity until installation.
