Carrying handle SCHROFF AUFSTELL-TRAGEGRIFF 84TE 2HE 24575078, rack-mounted equipment handle

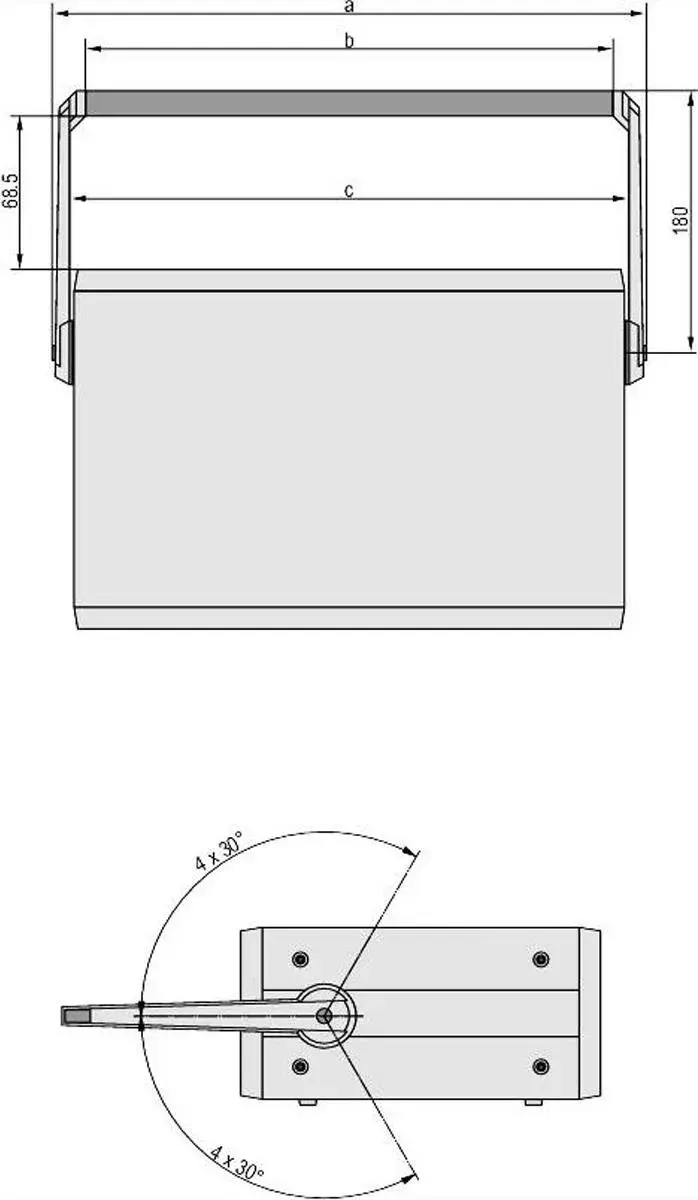

This SCHROFF AUFSTELL-TRAGEGRIFF 84TE 2HE carrying handle (model 24575078) is designed for installation on rack-mounted equipment with a width of 84TE and a height of 2HE. It provides a sturdy handhold to lift, position and transport server or telecom modules within standard 19-inch rack environments. The handle is intended to support professional data center and industrial workflows, enabling safer and more controlled handling during installation and maintenance while maintaining rack alignment.

Advantages

The SCHROFF carrying handle offers a robust construction suited to repeated use in demanding environments. Its form factor matches 84TE x 2HE rack units, enabling straightforward integration with compatible front panels and chassis. By providing a fixed handhold, the handle reduces the need for ad hoc grips and helps protect equipment from accidental drops or misalignment during insertion or removal from the rack. The design supports ergonomic handling for technicians, minimizing awkward gripping and improving placement accuracy.

Suitable for

• Installation and removal of server and telecom modules in 84TE x 2HE rack chassis
• Data center maintenance tasks requiring stable handholds for heavy modules
• Industrial racks where repeated handling and precise alignment are needed

Key specifications

• Compatibility: fits equipment front panels sized 84TE width and 2HE height
• Function: external carrying/installation handle for rack-mounted modules
• Design intent: supports manual lifting, positioning and transport within racks
• Use environment: data center and industrial rack systems

How to use

Mount the carrying handle to the compatible front panel or chassis in place of or alongside existing panel elements according to the equipment manufacturer's mounting points. Use the handle as the primary grip when lifting, sliding or aligning modules into the rack, keeping the module balanced and guided by the rack rails. When removing equipment, maintain a firm hold on the handle and support the module as needed to avoid sudden shifts. Follow rack and module manufacturer instructions for fastening torque and mounting sequence to ensure secure attachment.

Usage recommendations

Inspect the handle and mounting hardware periodically for wear or loosening. Use the handle only with compatible 84TE x 2HE modules and within the weight limits specified by the module or rack manufacturer. When transporting equipment outside the rack, combine the handle with additional support as required to maintain stability.
